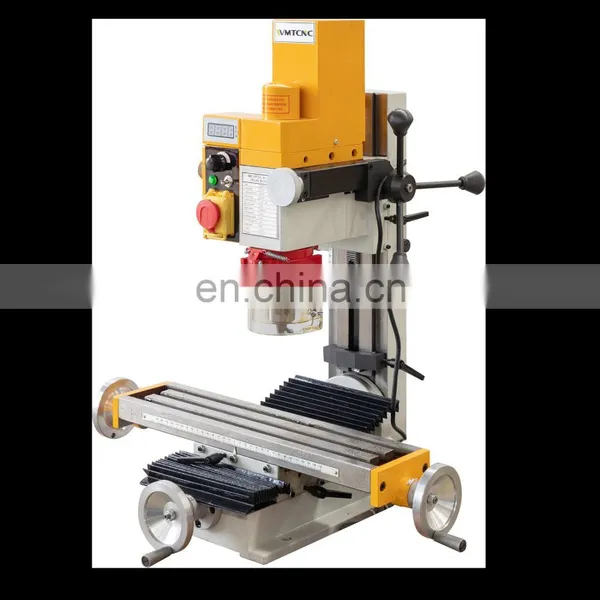

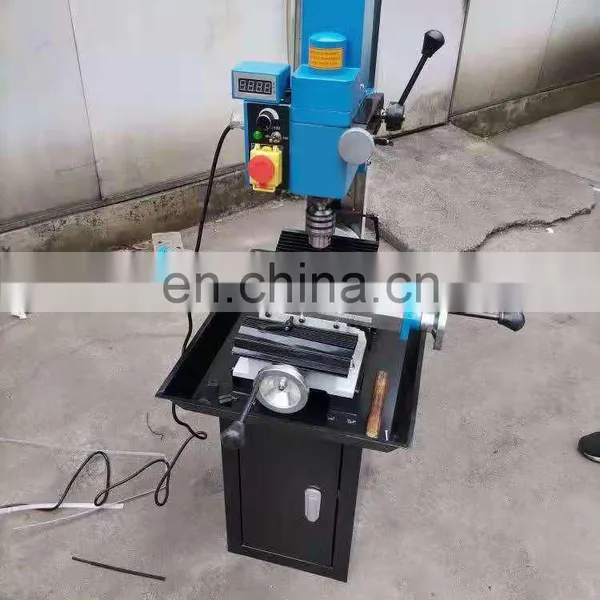

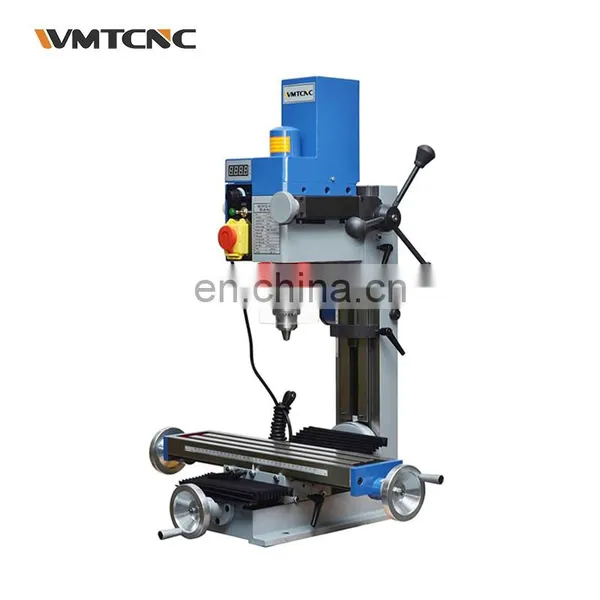

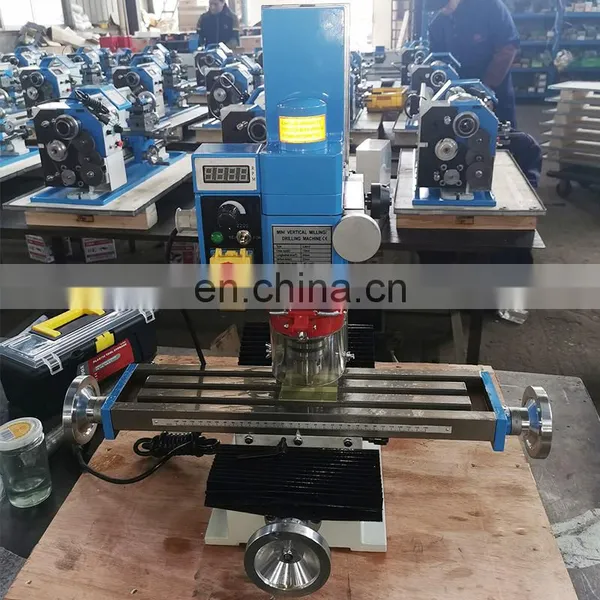

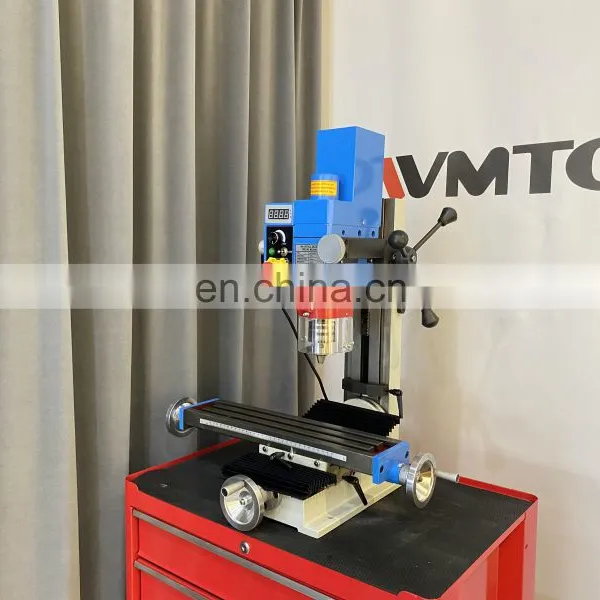

Manual Mills ZAY7013V Small Bench Top Milling Machine Troncatrice per Ferro 220v
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual Mills ZX6350ZA Manual Universal Milling Machines for Metal MillingNegotiableMOQ: 1 -
Table Milling Machine XL6436CL Milling Machines Made in China With CE Standard for SaleNegotiableMOQ: 1
-
Table Milling Machine Manual Universal Bridgeport Milling Machine ZX6350ZA for Metal Milling FunctionNegotiableMOQ: 1
-
Table Milling Machine Swivel Head Knee Milling MachineNegotiableMOQ: 1
-
Table Milling Machine ZAY7045V Variable Speed Milling Machine for Metal WorkingNegotiableMOQ: 1
Product Description
Features:
1. Variable speed
2. Spindle micro feed
3. DC motor
4. Positive spindle lock
5. Imported speed control unit
Technical spec. |
ZAY7013V |
Max. Drilling capacity |
13mm |
Max face mill capacity |
16mm |
Max end mill capacity |
30mm |
Max. distance from spindle to table |
300mm |
Working table size |
460x110mm |
Swivel angle of headstock |
±45 degree |
Spindle taper |
MT3/R8 |
Spindle speed |
L:50-1100RPM;H:120-2500RPM |
X-axis travel |
300mm |
Y-axis travel |
130mm |
Z-axis travel |
220mm |
Motor power |
550W/brushless motor |
N.W./G.W. |
65/85KGS |
Packing size(LXWXH) |
570x550x850mm |
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
