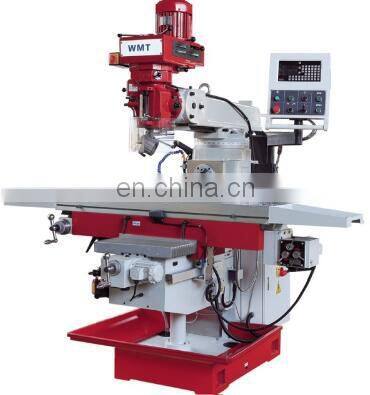

X6330W Best Sale Factory Price Universal Milling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX7550CW Universal Milling Machinery Cheap Milling Drilling Machine With CENegotiableMOQ: 1 -
WMT Milling Drill ZAY7045FG Gear- Head Mill Drill Milling Machine With DRONegotiableMOQ: 1
-
ZAY7045M 45 Degree Swivel Table Manual Bench Drill Machine in China for SaleNegotiableMOQ: 1
-
ZAY7020V Variable Speed Mini Drilling Milling Machine With CENegotiableMOQ: 1
-
ZX50C Mini Drilling and Milling Machine With 50mm Drilling Diameter CapacityNegotiableMOQ: 1
Features:
Universal milling machine
vertical milling variable speed
X/Y axis auto feedidng
Specification |
Unit |
X6325W |
X6330W |
Table size |
mm |
1270X254 |
1370x305 |
T slot |
3/16/65 |
3/16/65 |
|
Longitudinal travel |
mm |
750(850manually) |
800 |
Cross travel |
mm |
400 |
380 |
Vertical travel |
mm |
400 |
360 |
Quill travel |
mm |
127 |
127 |
Spinedle and Column distance |
mm |
155-635 |
155-635 |
Spindle and table distance |
mm |
0-640 |
0-460 |
Arm travel |
mm |
400 |
500 |
Milling head tilting |
degree |
90(left right)45(front back) |
90(left right)45(front back) |
Spindle taper |
R8(V);NT40(H) |
R8(V);NT40(H) |
|
Spindle speed |
r/min |
66-4540(V);40-1300(H) |
66-4540(V);40-1300(H) |
Spindle motor power |
kw |
2.2(V);3(H) |
2.2(V);3(H) |
Table load |
kg |
350 |
350 |
Overall size |
mm |
1750x1530x2340 |
1750x1650x2340 |
Net weight |
kg |
1380 |
1550 |
You may find the accessories as you like:
Details about the real pictures:
