ZAY7045M 45 Degree Swivel Table Manual Bench Drill Machine in China for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7020V Variable Speed Mini Drilling Milling Machine With CENegotiableMOQ: 1 -
ZX50C Mini Drilling and Milling Machine With 50mm Drilling Diameter CapacityNegotiableMOQ: 1
-
ZAY7032FG/1 Drilling and Milling Machine for Metal WorkingNegotiableMOQ: 1
-
ZAY7045FG Factory Direct Sale Multi-purpose Combo Drilling and Milling MachineNegotiableMOQ: 1
-
Z5045C/1 Spindle Auto-feed Vertical Drilling Machine With CE CertificationNegotiableMOQ: 1
Features:
Milling drilling,tapping boring, reaming
Head swivels ±90° verticaly
Spindle micro feed precisely
Adjustable gibs on table precision.
Accurate position, strong rigidity,powerful cutting
Specification:
Model | ZAY7032FG | ZAY7045FG | ZAY7045M | ||
Max Face mill capacity | Φ32mm(1-1/4") | Φ45mm(1-3/4") | |||
Max End mill capacity | Φ63mm(2-1/2") | Φ80mm(3-1/8") | |||
End milling capacity | Φ20mm(3/4") | Φ32mm(1-1/4") | |||
Max.distance from spindle nose to table | 450mm(17-3/4") | 450mm(17-3/4") | 420mm(17-3/4") | ||
Min.distance from spindle axis to column | 260mm(10-1/4") | ||||
Spindle travel | 130mm(5-1/8") | ||||
Spindle taper | MT3 or R8 | MT4 or R8 | |||
Step of spindle speed | 6 steps | ||||
Range of spindle speed 50Hz | 80-1250 rpm | ||||
60Hz | 95-1500 rpm | ||||
Swivel angleof headstock(perpendicularly) | ±90° | ||||
Table size | 800mm×240mm(31-1/2"×9-1/2" ) | ||||
Forward and backward travel of table | 175mm(6-7/8") | ||||
Left and right travel of table | 500mm(20") | ||||
Motor Power | 1.5KW | ||||
Net weight/gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg | ||
Packing size | 880×770×1160mm | ||||

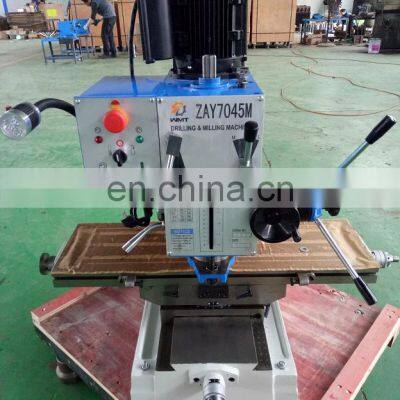

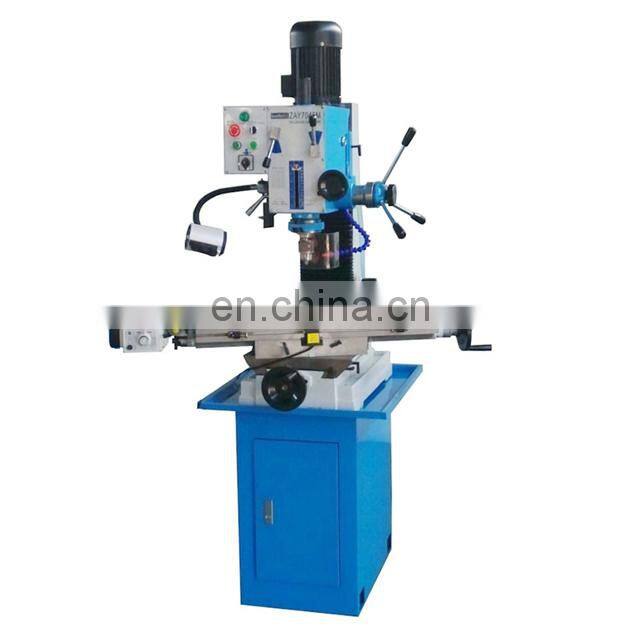

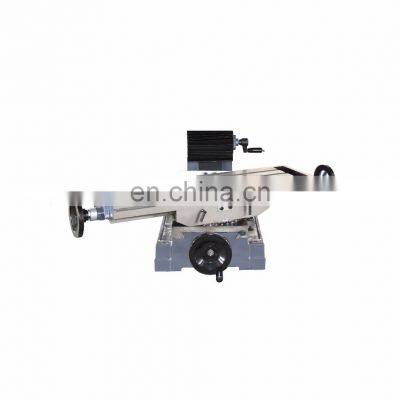

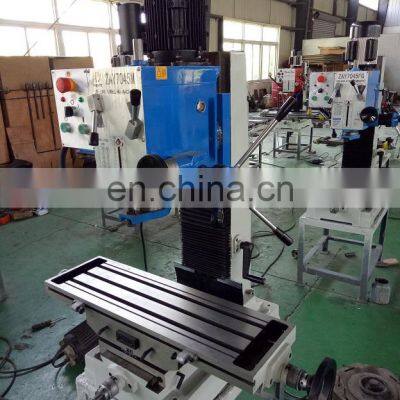

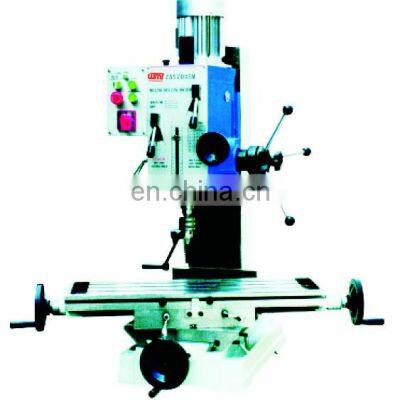

Machine pictures:

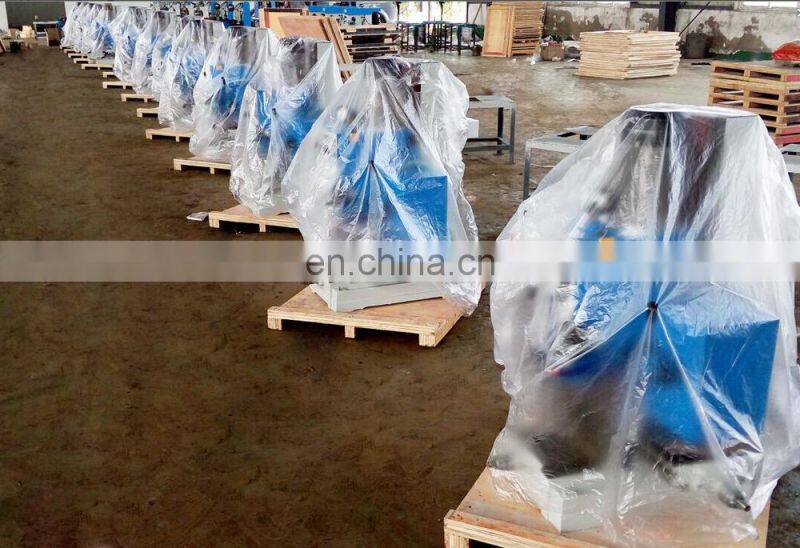

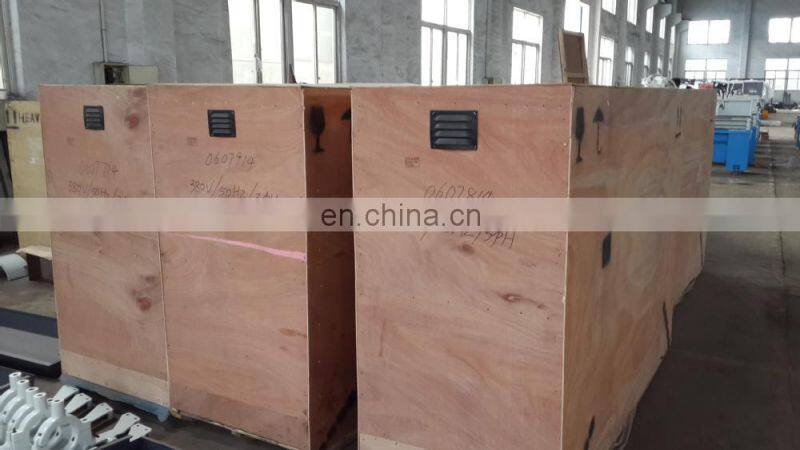

Details about package:
