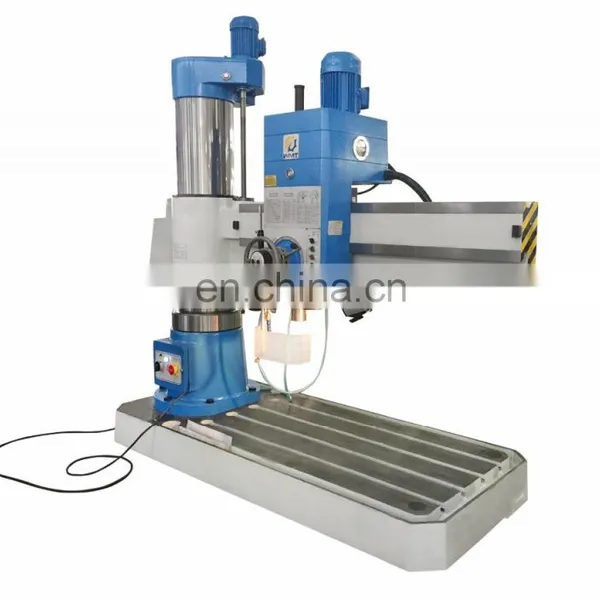

Z3050x16 Hydraulic Radial Drilling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Model Z3063x20 Factory Promotion Sale Cheap Radial Drilling MachineNegotiableMOQ: 1 -
Z3080X25 Hydraulic Heavy Radial Drilling Machine With CENegotiableMOQ: 1
-
Hydraulic Clamping Z3040/12 Cheap Radial Drilling MachineNegotiableMOQ: 1
-
Table Milling Machine Manual Mills X6325W Vertical Turret Milling Machine With Factory PriceNegotiableMOQ: 1
-
XU28 XU32 Vertical Horizontal Universal Milling Machine With CENegotiableMOQ: 1
Features:
1.Radial drilling machine
2.Transmission:Mechanical transmission
3.Max. drilling diameter:50mm
4.Spindle taper:Morse 5
5.Spindle travel:300mm
Specification |
Unit |
Z3050×16 |
Max. drilling diameter |
mm |
50 |
Distance between spindle axis and column |
mm |
350-1600 |
Distance spindle nose and work surface of base |
mm |
320-1220 |
Rocker arm lifting distance |
mm |
580 |
Rocker arm lifting speed |
m/s |
0.02 |
Spindle travel |
mm |
315 |
Spindle taper |
Morse |
5 |
Range of spindle speeds |
r/min |
25-2000 |
Number of spindle speeds |
step |
16 |
Range of spindle feeds |
mm/r |
0.04-3.20 |
Number of spindle feeds |
step |
16 |
The maximum torque of the spindle |
N.M |
500 |
Spindle maximum feed resistance |
N |
18000 |
Table size |
mm |
630×500 |
The spindle box of horizontal moving distance |
mm |
1250 |
Spindle motor power |
kw |
4 |
Hydraulic clamping motor power |
kw |
0.75 |
Cooling pump motor power |
kw |
0.09 |
Arm lift motor power |
kw |
1.5 |
Machine weight |
kg |
3500 |
Overall dimension |
mm |
2500×1070×2840 |
