Ram Milling Machine Universal Milling Machine X5750 With CE Certificate and Good Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Type Mill Machinery X7140S Bed Type Milling MachineNegotiableMOQ: 1 -
4H Variable Speed Universal Milling Machine With China PriceNegotiableMOQ: 1
-
5H Cheap Vertical Type Mill Machine With Factory PriceNegotiableMOQ: 1
-
Vertical Type Mill Machinery Variable Speed Milling Head ZX5150A Cheap Universal Milling MachineNegotiableMOQ: 1
-
X5136S Vertical Type Mill Machinery Variable Speed Universal Milling Machine With CENegotiableMOQ: 1
Product Description

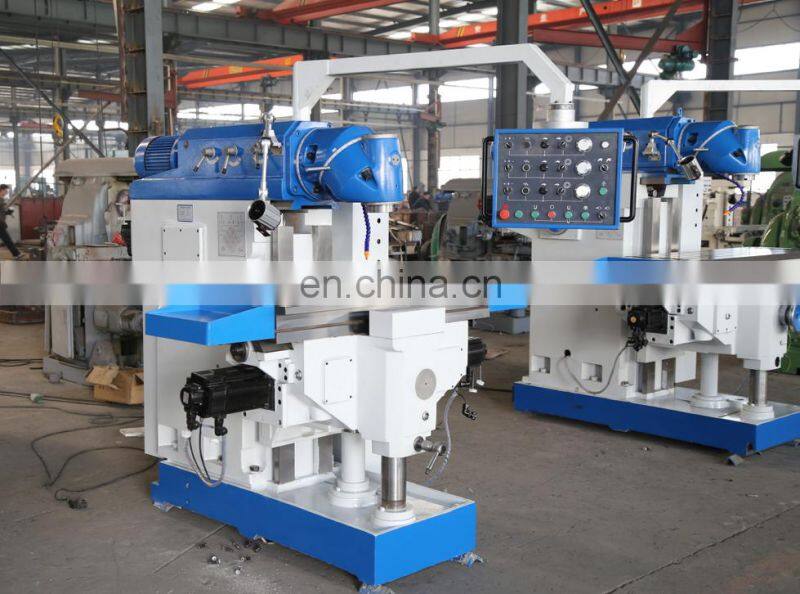

Ram milling machine X5750 main features:
Universal ram milling machine.

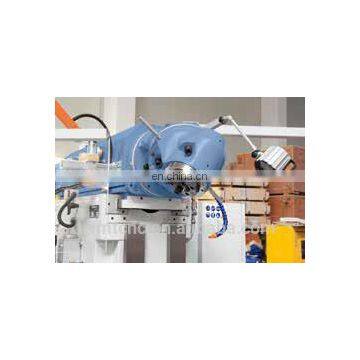

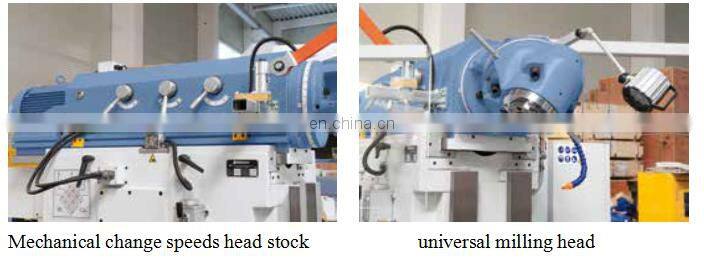

Head can swivel 360 degree.
It can mill any angle surface through front half-sphere by swivelling milling head.

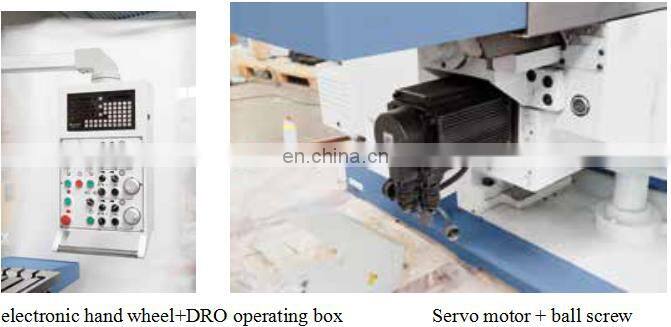

Table 3 axes with ball screws, high precision.
specifications | unit | X5746 | X5750 | X5750A | ||
Table size | mm | 460x1235 | 500x1600 | 500x2000 | ||
T-slots(NO./Width/pitch) | mm | 5x18x80 | ||||
Table travel (X/Y/Z) | mm | 900x650x450 | 1200x700x500 | 1400x700x500 | ||
Swivel angle of milling head | - | 360° | ||||
Spindle taper | - | ISO40 | ISO50 | |||
Spindle speed range | r.p.m | (27) 30-2050 | ||||
Table feed(X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |||
Table rapid speed | 2200/2200/1100 | |||||
Distance between spindle nose and table surface | mm | 32-482 | 25-525 | |||
Distance from spindle center line to column | mm | 47-697 | 55-755 | |||
Main motor power | Kw | 5.5 | 7.5 | |||
Feed motor | Kw | AC servo motor X/Y:15NM,Z: 18NM | ||||
Max load | Kg | 800 | 1800 | |||
Overall size | mm | 1835x2362x2090 | 2475x2260x2180 | 2625x2860x2080 | ||
Weight | Kg | 4000 | 4500 | 4800 | ||
Machine Details
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
