Product Description

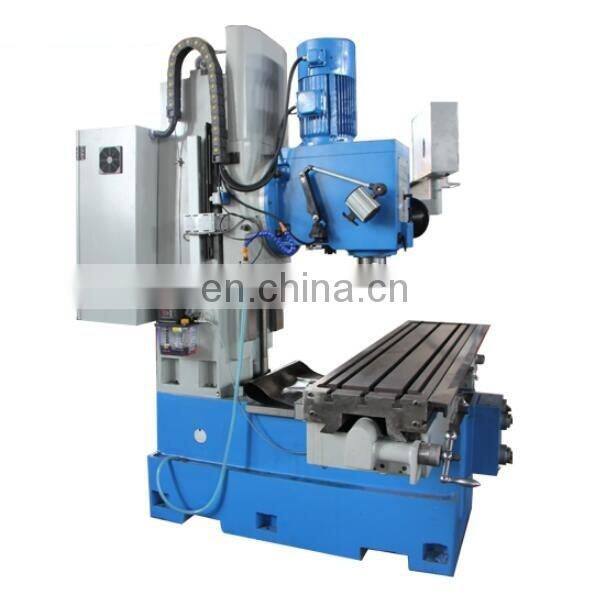

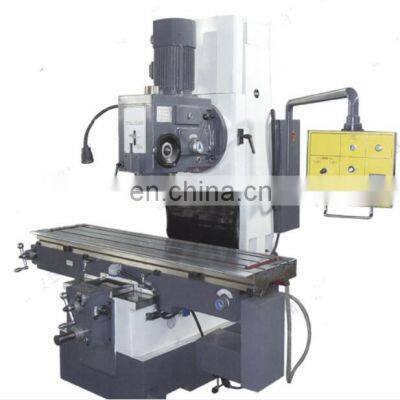

X7140S vertical bed type milling machine for sale
Features:
Bed type milling machine
Main Features of X7140S vertical bed type milling machine for sale:
Table size: 400x1700mm
X/Y/Z axis travel:1300x400x500mm

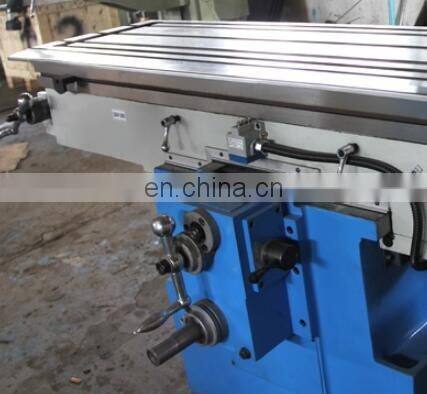

Worktable quenched and fine grinded.
X, Y and Z axis servo motor driven
Spindle taper: NT50
OEM services provided
Voltage can be specially ordered.
Color can be specially ordered.
Model | Unit | X7140S |
Table size | mm | 1700X400 |
Table travel | mm | 1300x400x500 |
Max. Workpiece weight | kg | 900 |
T-solts(No./width/pitch) | 3/8/110 | |
Max. Vertical milling DIA. | mm | 32 |
Spindle taper | NT50 | |
Spindle speed/range | rpm | 125~1059(stepless) |
Distance between spindle end and table surface | mm | 100~600 |
Distance between spindle axis and guideway | mm | 500 |
Main motor | kw | 7.5kw frequency conversion |
Net weight | kg | 3800 |
Machine size | mm | 2200x2600x2300 |
