ZAY7045V Variable Speed Small Milling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ram Milling Machine Universal Milling Machine X5750 With CE Certificate and Good PriceNegotiableMOQ: 1 -
Vertical Type Mill Machinery X7140S Bed Type Milling MachineNegotiableMOQ: 1
-
4H Variable Speed Universal Milling Machine With China PriceNegotiableMOQ: 1
-
5H Cheap Vertical Type Mill Machine With Factory PriceNegotiableMOQ: 1
-
Vertical Type Mill Machinery Variable Speed Milling Head ZX5150A Cheap Universal Milling MachineNegotiableMOQ: 1
Product Description
ZAY7045V Drilling and Milling Feature:
1. Variable speed;
2. Milling, drilling , tapping , boring and reaming.
3. Head swivels ±90°vertically;
4. Micro feed precision;
5. Adjustable gibs on table precision;
6. Strong rigidity, powerful cutting and precise positioning.
Model |
ZAY7032V |
ZAY7040V |
ZAY7045V |
||
Max drilling capacity |
32mm |
40mm |
45mm |
||
Max Face mill capacity |
Φ63mm |
Φ80mm |
Φ80mm |
||
Max End mill capacity |
Φ20mm |
Φ32mm |
Φ32mm |
||
Max distance from spindle nose to table |
400mm |
450mm |
|||
Min distance from spindle axis to column |
260mm |
||||
Spindle travel |
130mm |
||||
Spindle taper |
MT3 , MT4 or R8 |
||||
Range of spindle speed |
100-530rpm 530-2600rpm |
||||
Swivel angle of headstock (perpendicular) |
±90° |
||||
Table size |
800×240mm |
||||
Forward and backward travel of table |
175mm |
||||
Left and right travel of table |
500mm |
||||
Motor Power |
1.1KW/1.1KW/1.5KW |
||||
Net/Gross weight |
300kgs/ 350kgs |
||||
Packing size |
770×880×1160mm |
||||
Loading amount/20" container |
36pcs |
||||

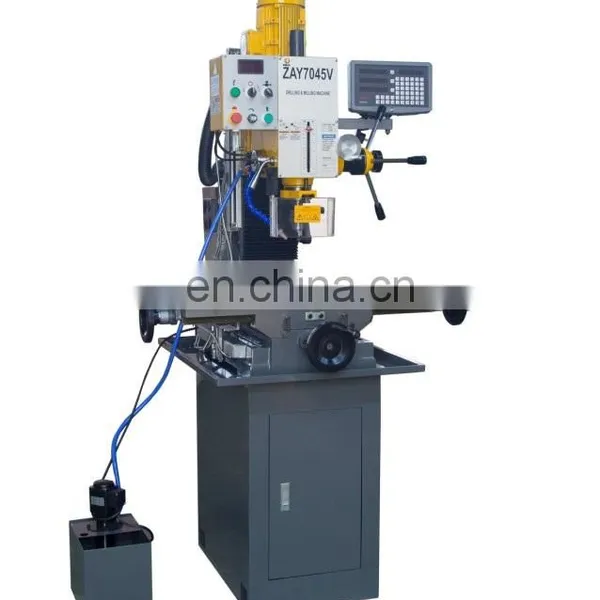

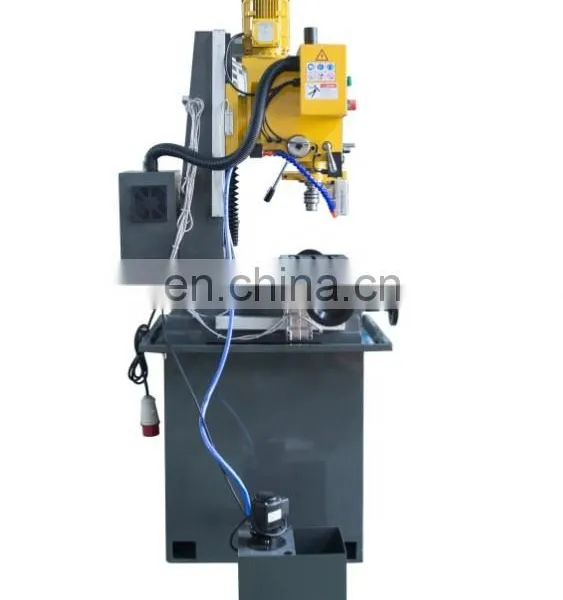

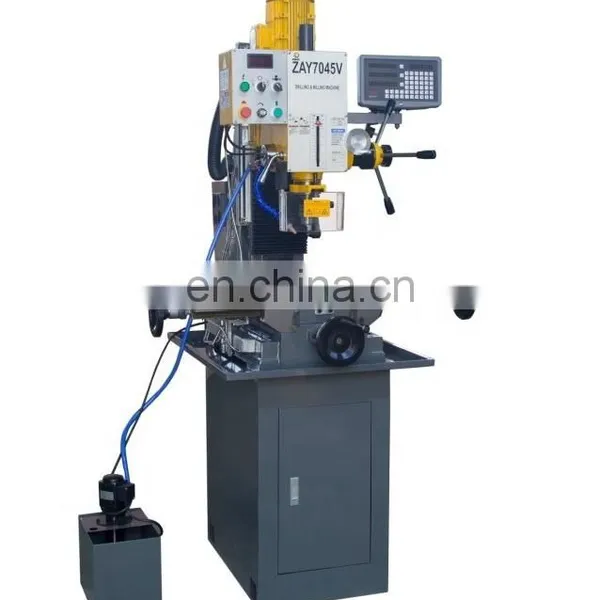

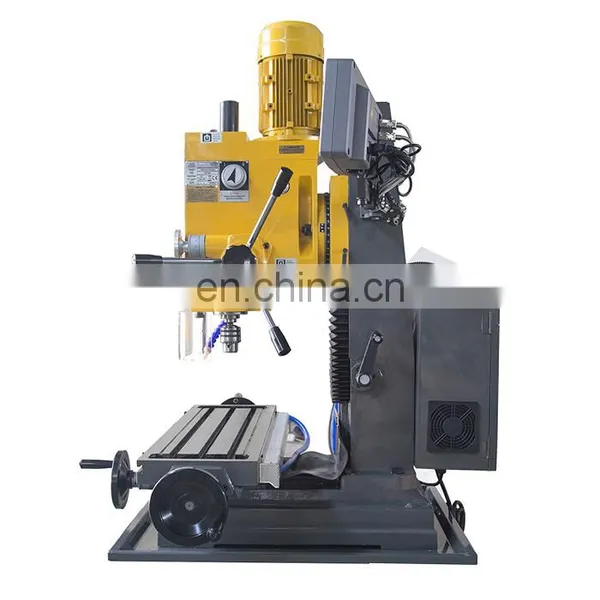

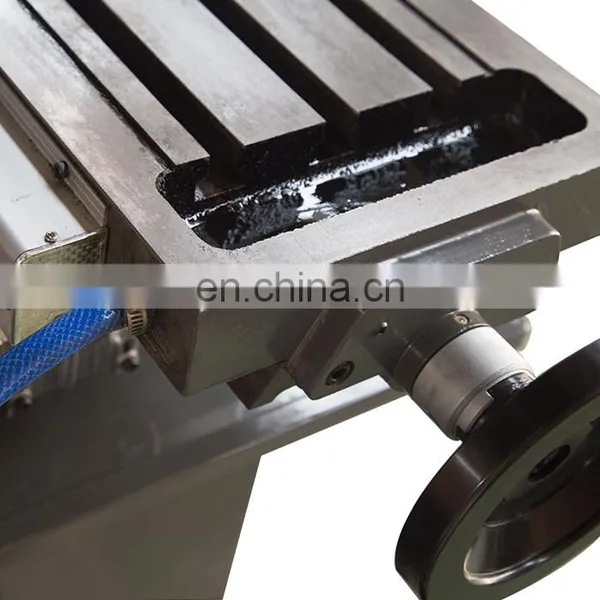

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
