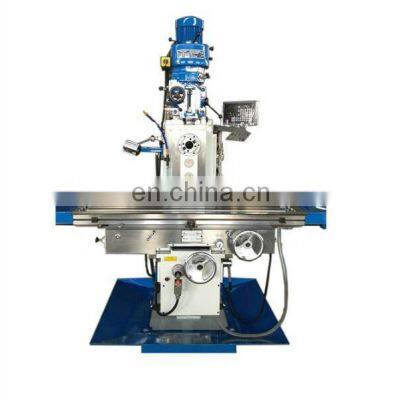

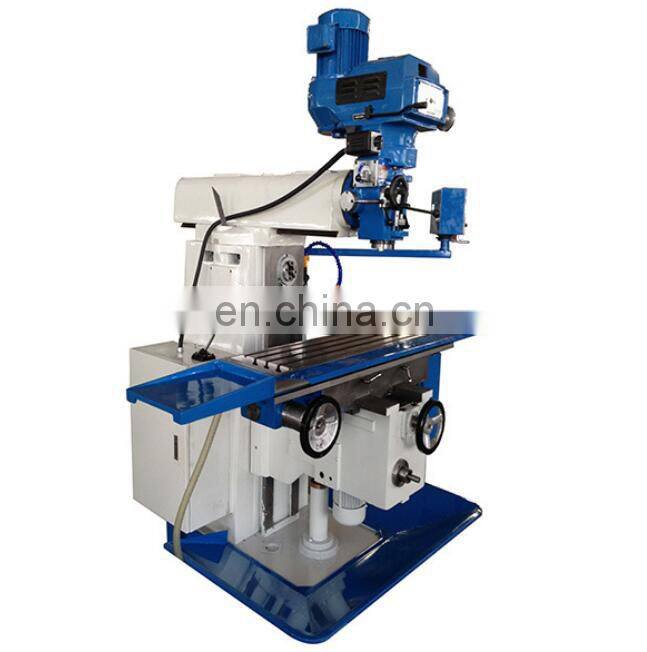

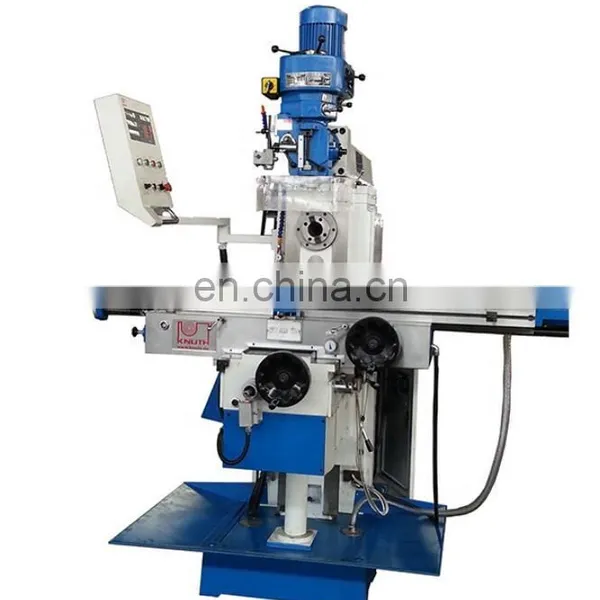

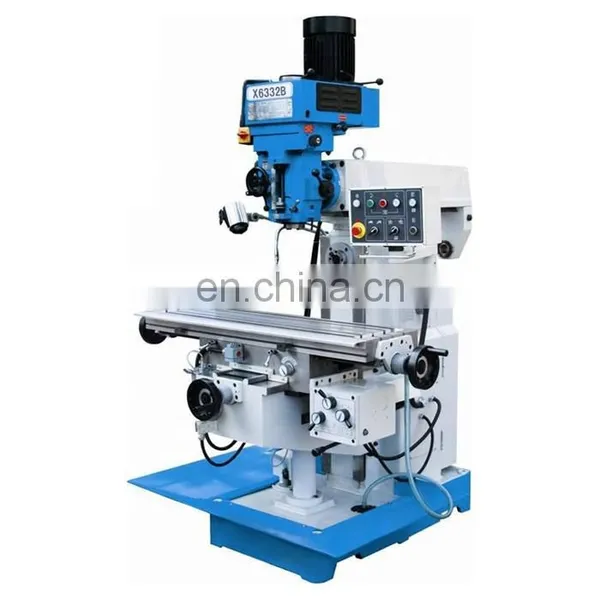

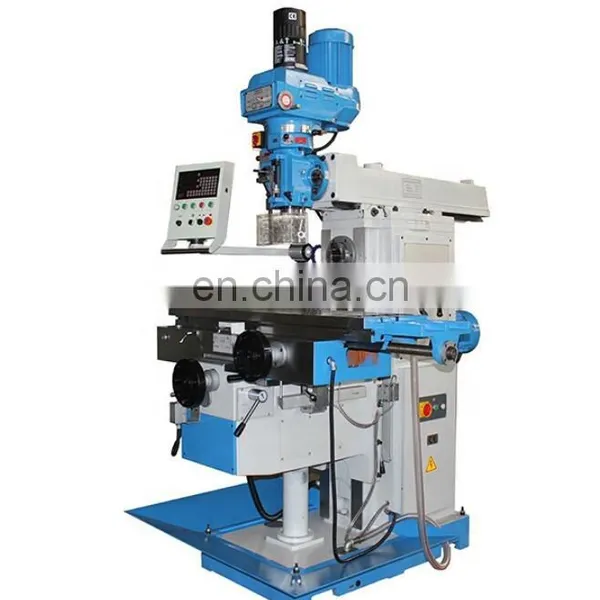

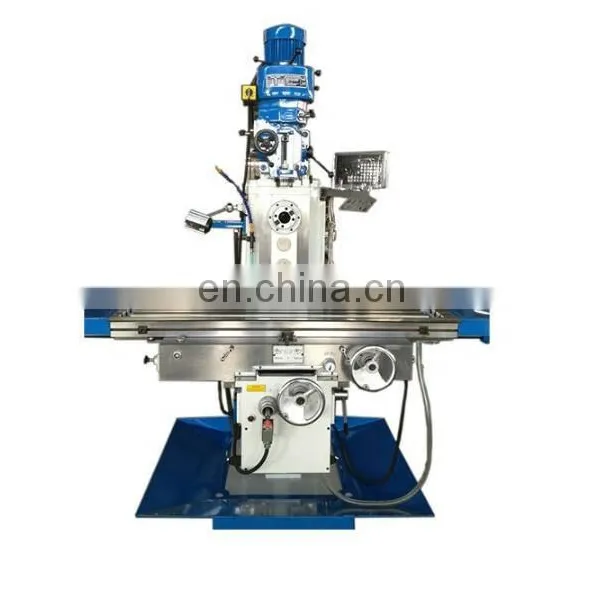

WMT Vertical Type Mill Machinery X6332B Universal Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Vertical Milling Machine XZ6350ZB for Metal WorkingNegotiableMOQ: 1 -
ZAY7045V Variable Speed Small Milling Machine for Metal WorkingNegotiableMOQ: 1
-
Ram Milling Machine Universal Milling Machine X5750 With CE Certificate and Good PriceNegotiableMOQ: 1
-
Vertical Type Mill Machinery X7140S Bed Type Milling MachineNegotiableMOQ: 1
-
4H Variable Speed Universal Milling Machine With China PriceNegotiableMOQ: 1
Product Description
Universal MIlling Main Features:
1. X6332 used high-speed milling head, high- powered, high- speed range. The Max is about 4540 r.p.m. automatic feed on two-axis, motorized lift on Z axis.
2. The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
3. The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
4. The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
5. This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
Specification |
X6332B |
X6332C |
Spindle taper |
7:24 ISO40 Vertical |
NT40 Vertical |
NT 40 Horizontal |
NT 40 Horizontal |
|
Milling head tilt (left/right) |
90° |
90° |
Spindle travel (mm) |
127 |
127 |
Spindle speeds range (r.p.m) |
115-1750 |
66-4540(vertical 16 step) |
40-1300 (horizontal 12 step) |
40-1300 (horizontal 12 step) |
|
Distance from spindle to column(mm) |
180-630 |
180-630 |
Distance from spindle to work table (mm) |
130-550 |
130-550 |
Arm travel (mm) |
450 |
450 |
Rotary arm |
360° |
360° |
Table size (mm) |
1500x320 |
1250x320 |
Max. travel of table (mm) |
600x300x420 |
800x300X420 |
T-slot number width distance (mm) |
3/14/70 |
3/14/70 |
Max load weight (kg) |
350 |
350 |
Main motor power (kw) |
2.2 Vertical |
2.2 Vertical (optional:3.7) |
2.2 Horizontal |
2.2 Horizontal |
|
Motor of table power feed (w) |
750 |
750 |
Up/down motor of head stock(Kw) |
1.1 |
1.1 |
Cool ant pump motor (w) |
40 |
40 |
Packing size(mm) |
1550x1650x2200 |
1600x1650x2200 |
N.W/G.W(kg) |
1500/1700 |
1700/1900 |
Standard Accessories
1.Drill chuck
2.Mill chuck
3.Inner hexagon spanner
4.Work light
5.Reduction sleeve
6.Draw bar
7.Spindle arbor
8.wrench
9.Machine vic
10.Horizontal milling arbor
Optional Accessories:
1.DRO on X, Y, Z--AXIS 2.Clamping kit
3.Universal dividing head
4.Rotary work table.
