Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > X6330 Factory Direct Sale Price Vertical Universal Milling Machine With CE Certificate
X6330 Factory Direct Sale Price Vertical Universal Milling Machine With CE Certificate
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Milling Machine ZX7550ZW With Vertical Spindle Auto-feedingNegotiableMOQ: 1 -
Z3032 Small Hydraulic Radial Drilling MachineNegotiableMOQ: 1
-
Z3032x10 Factory Sale Cheap Hydraulic Radial Drilling MachineNegotiableMOQ: 1
-
13mm Factory Directly Sale Mini Drilling and Milling Machine XJ9512 With CE for HobbyNegotiableMOQ: 1
-
Bench Type Worktable Z3040/13 Cheap Radial Drilling Machine With CE for SaleNegotiableMOQ: 1
Features:
Rectangular guideway on Y and Z axis makes the machine stable and rigid.
The guideway on saddle is lined with TF wearable material.
Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.
Specificaiton | X6323 | X6325(4H) | X6330(5H) |
Table size | 1270×254mm | 1270×254mm (Optional:1370×254mm) | 1370×305mm |
T-slotes (No./Width/Pitch) | 3/16/63mm | 3/16/65mm | 3/16/65mm |
Table travel (X/Y/Z) | 600×320×400mm | 850×400×400mm | 850×400×450mm |
Distance between spindle nose and table surface | 60-490mm | 60-460mm | 0-460mm |
Spindle speed | 66-4540rpm | 66-4540rpm | 66-4540rpm |
Main motor power | 3HP | 3HP | 5HP |
Spindle taper | R8 | R8 or NT30 | NT40 |
Travel of spindle sleeve | 127mm | 127mm | 127mm |
Arm travel | 300mm | 400mm | 500mm |
Feed of spindle sleeve | 0.04/0.08/0.15mm/r | 0.04/0.08/0.15mm/r | 0.04/0.08/0.15mm/r |
Milling head rotation | swivel:45° tiltle:90° | swivel:45° tiltle:90° | swivel:45° tiltle:90° |
Machine overall size (L*W*H) | 1600×1650×2250mm | 1700×1600×2150mm | 1750×1650×2150mm |
N.W | 1200kg | 1200kg | 1350kg |
You may find the accessories as you like:

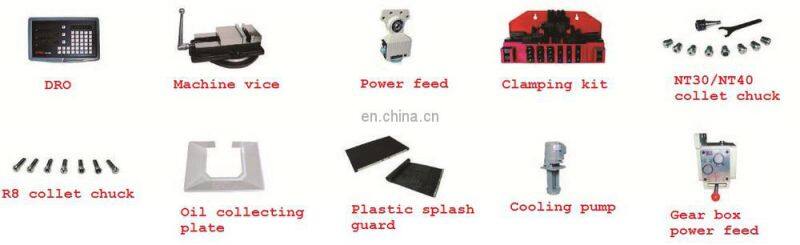

Optional accessories:
