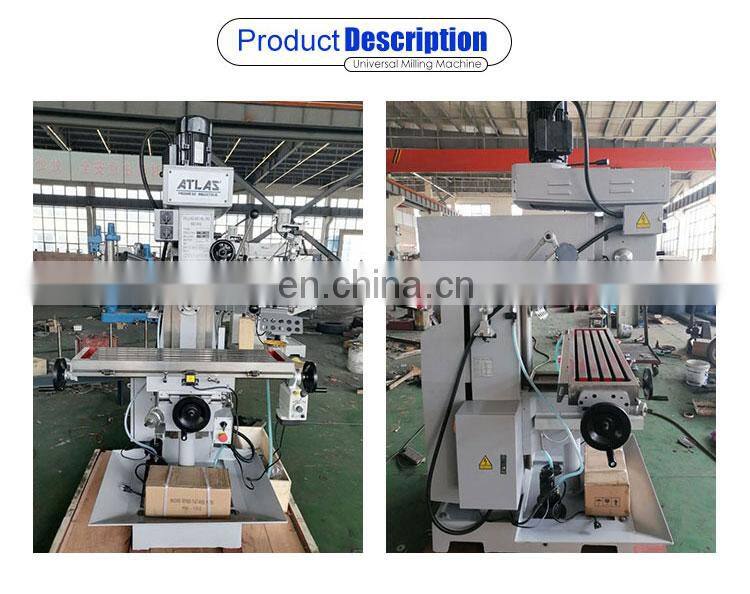

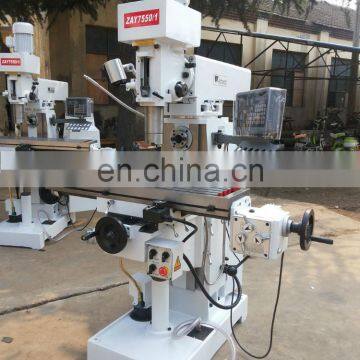

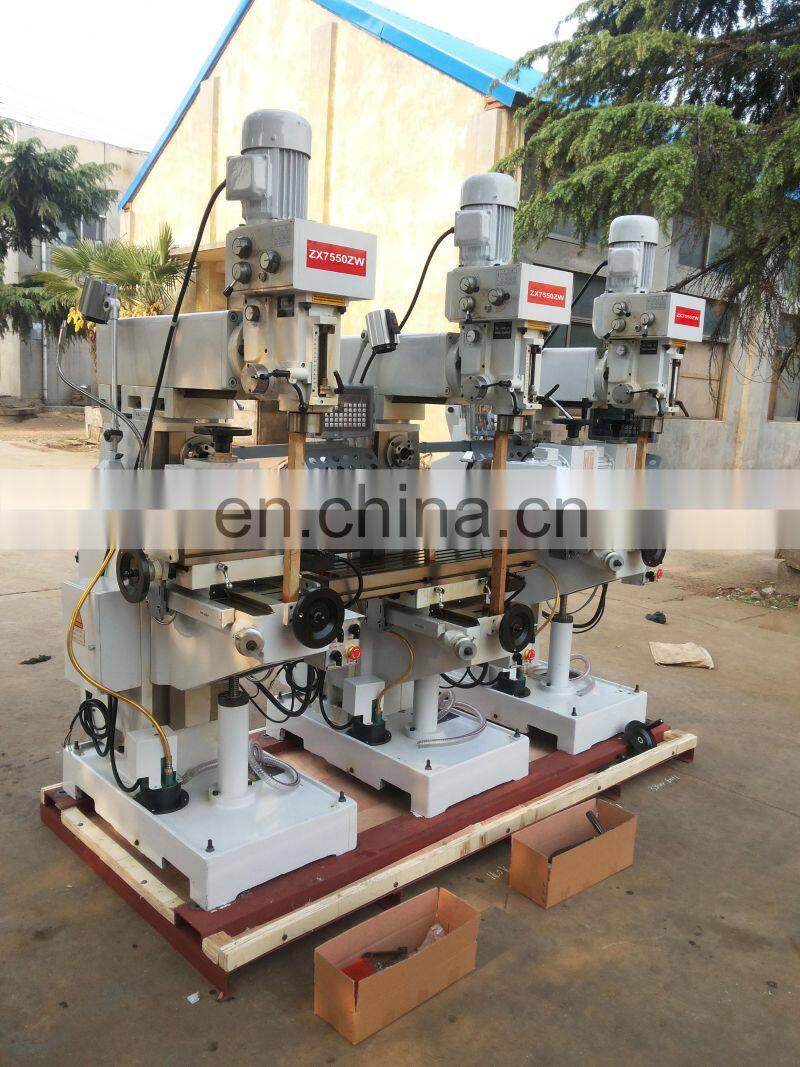

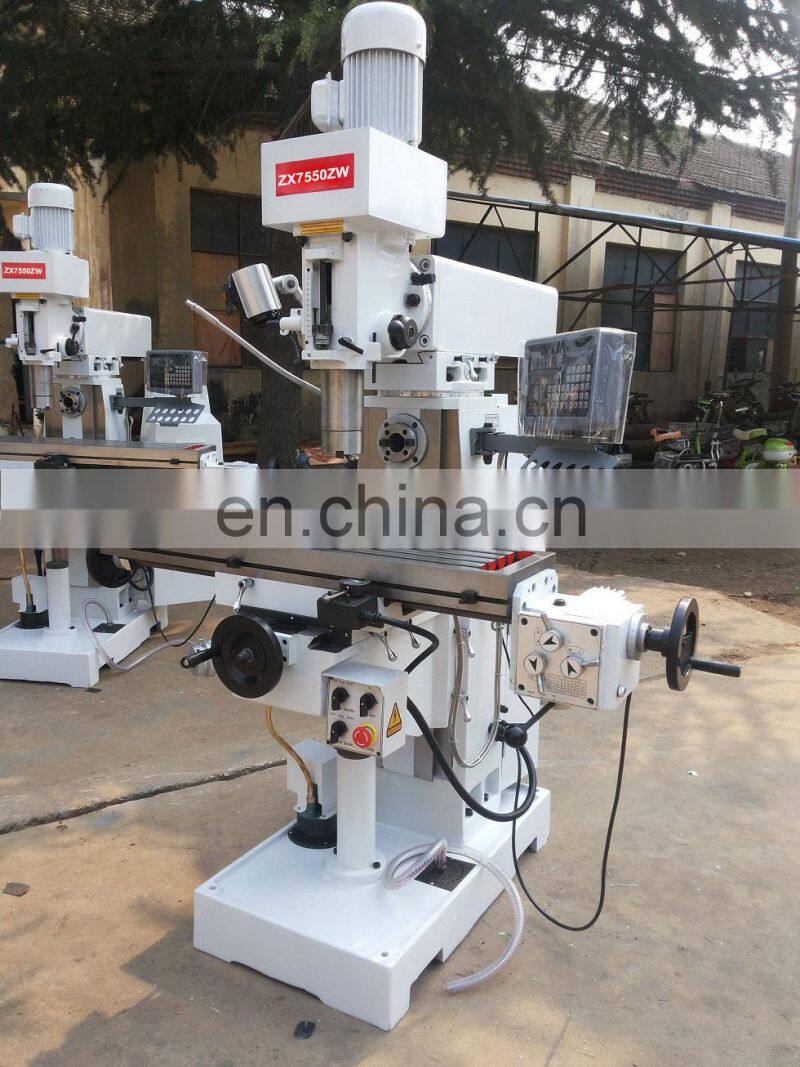

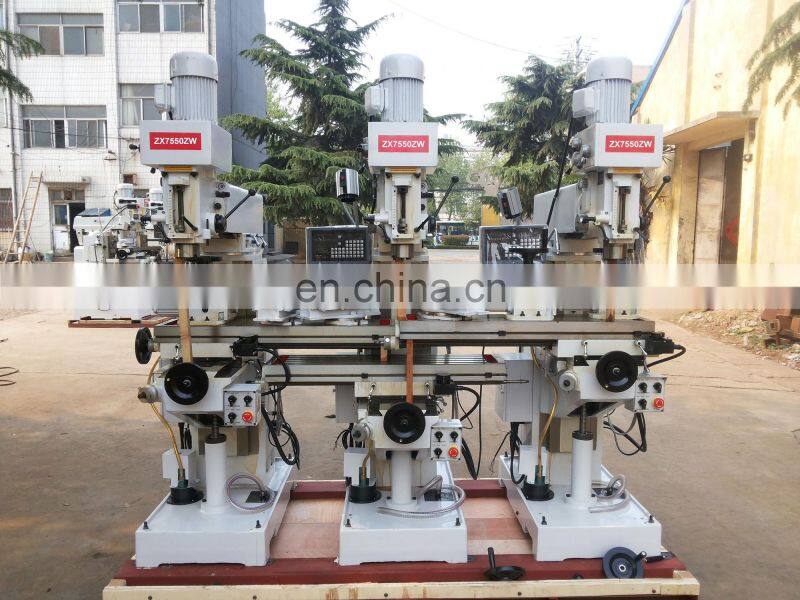

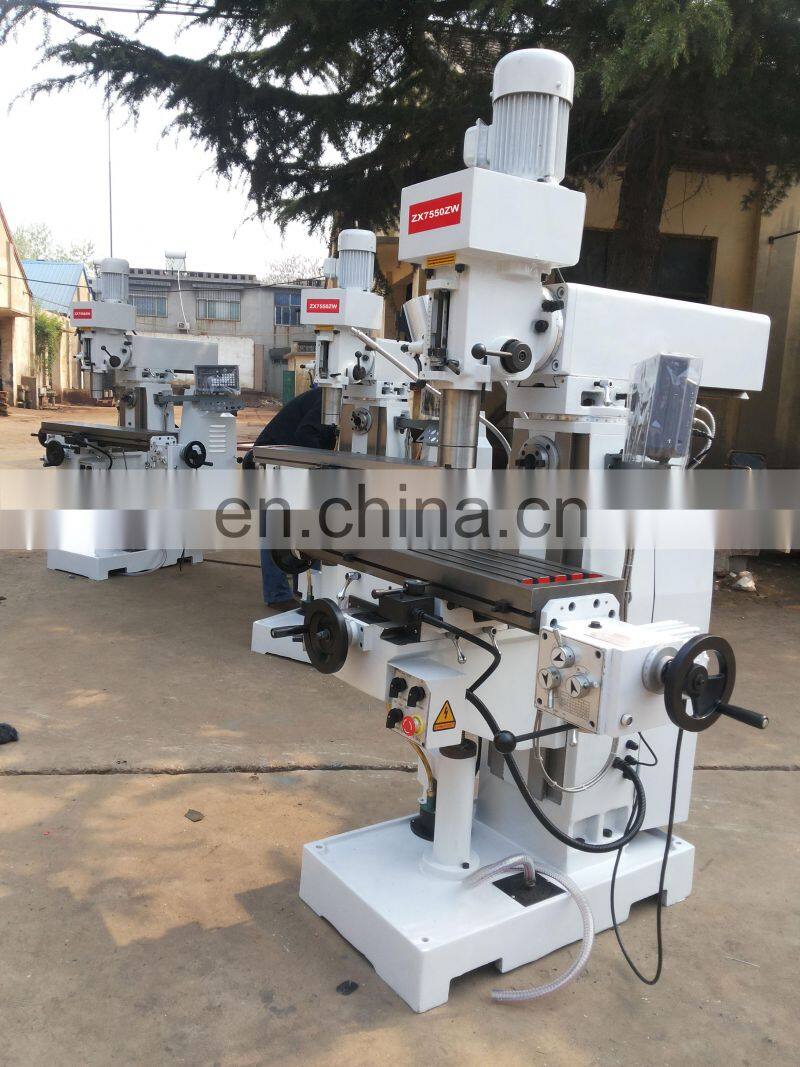

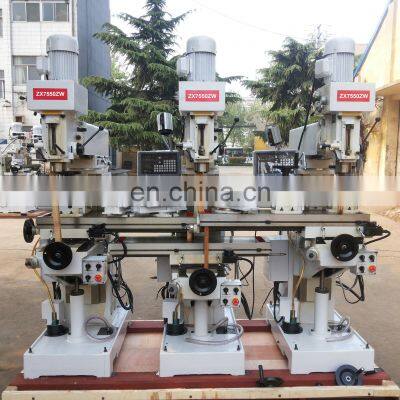

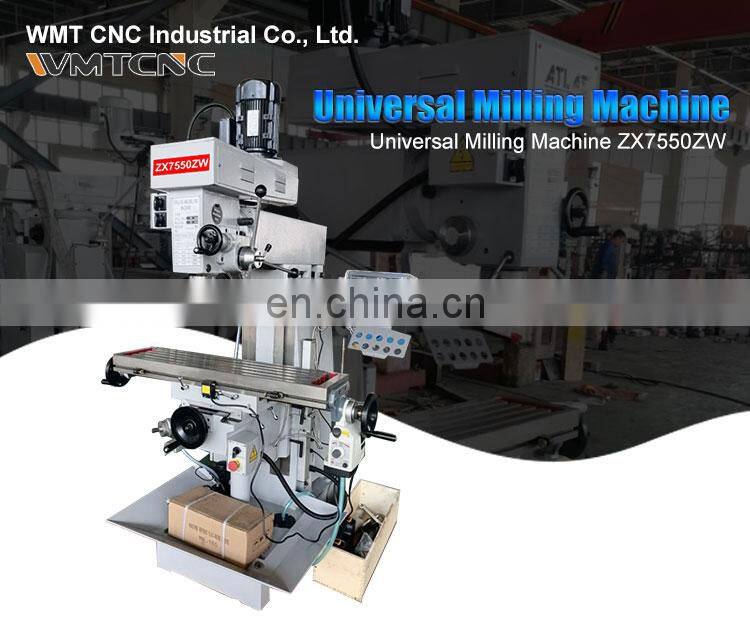

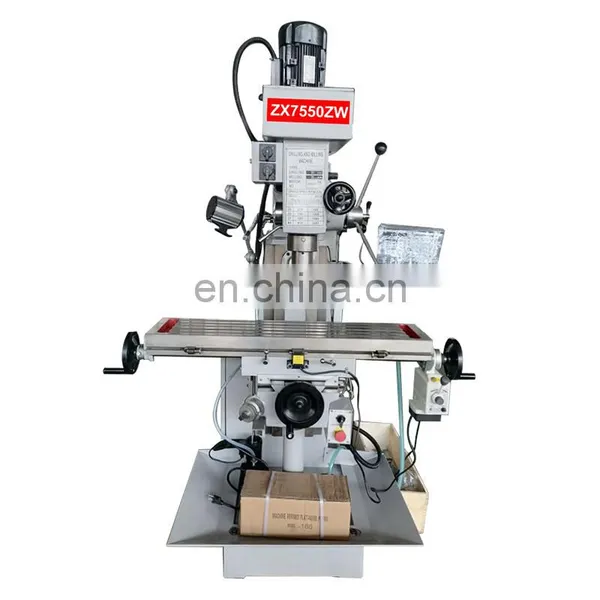

Universal Milling Machine ZX7550ZW With Vertical Spindle Auto-feeding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z3032 Small Hydraulic Radial Drilling MachineNegotiableMOQ: 1 -
Z3032x10 Factory Sale Cheap Hydraulic Radial Drilling MachineNegotiableMOQ: 1
-
13mm Factory Directly Sale Mini Drilling and Milling Machine XJ9512 With CE for HobbyNegotiableMOQ: 1
-
Bench Type Worktable Z3040/13 Cheap Radial Drilling Machine With CE for SaleNegotiableMOQ: 1
-
Top Sale Z3080/25 Heavy Drill Machinery Cheap Radial Drilling MachineNegotiableMOQ: 1
ZX7550ZW Features:
Rectanger guide way,better stbility
Headstocck swivels ±90º
Worktable turns ±45º
Easily changing from vertical milling to horizontal milling
Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working
ZX5325C Vertical milling is gear-driven
ZX7550CW Vertical milling is gear-driven ;Horizontal milling is belt-driven.
ZX7550ZW Vertical milling spindle can be auto feeding based on ZX7550CW
Specification |
ZX7550CW |
ZX7550ZW |
||
Max.drilling dia |
Φ50mm |
Φ50mm |
||
Max.horizontal milling dia. |
Φ100 |
Φ100 |
||
Max.vertical milling dia. |
Φ25mm |
Φ25mm |
||
Max.boring dia. |
Φ120mm |
Φ120mm |
||
Spindle taper |
ISO30, R8, MT4 |
|||
Spindle speeds range) |
V:115- 1750rpm(8) H:60-1350(8) |
V:60-1500rpm(8) H:60-1350(8) |
||
Spindle travel |
120mm |
120mm |
||
Table size |
240×1000mm |
240×1000mm |
||
Table travel |
400×230×350mm |
400×230×350mm |
||
Main motor power (V/H) |
V:0.85/1.5 H:2.2mm |
V:1.5kw H:1.5kw |
||
Packing size |
1140×1120×2220(1 unit/PKG) 1140×1220×2220(2 units/PKG) |
1140×1120×2220(1 unit/PKG) 1140×1220×2220(2 units/PKG) |
||
N.W/G.W |
850kg/1000kg |
900kg/1050kg |
||

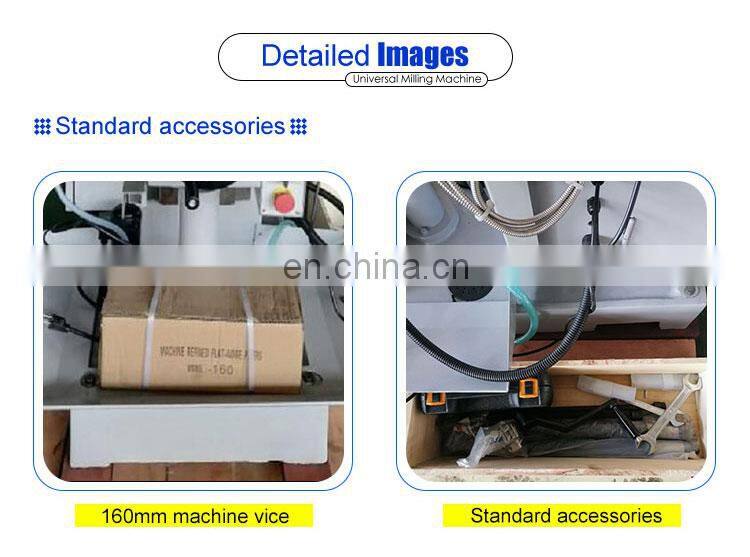

Standard Accessories:
Reduction sleeve
Parallel vice
Wrenches
Milling chuck
Drill chuck
