Home > Products > DRILL/MILL/BORING/TAPPING > Vertical drilling machine Model Z5032 Z5040 Z5045 with CE

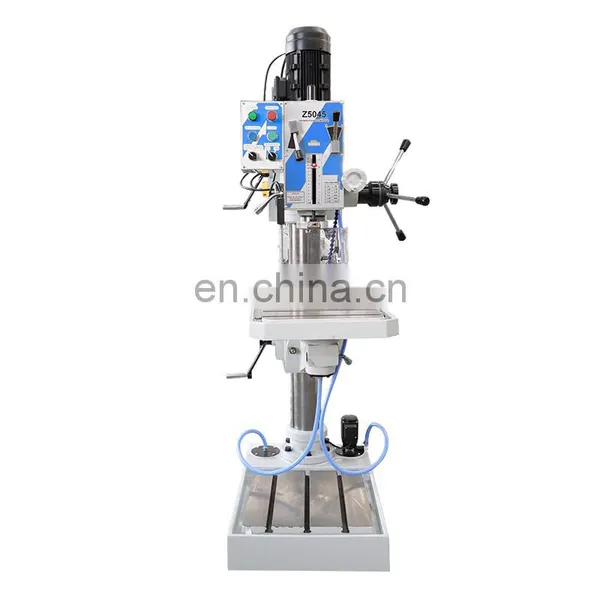

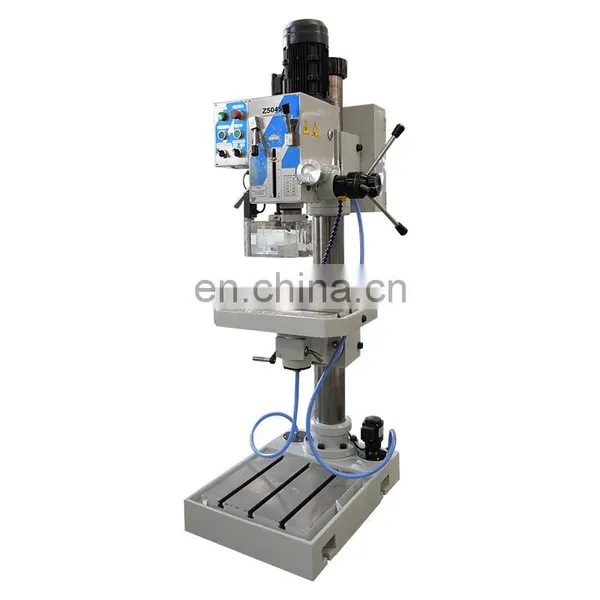

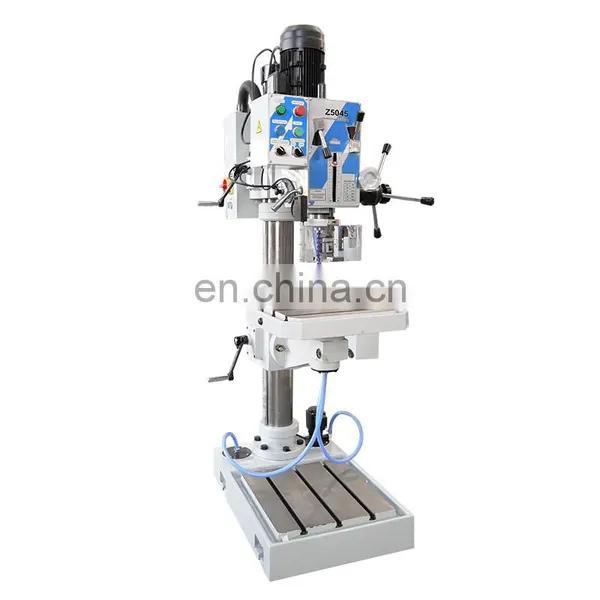

Vertical drilling machine Model Z5032 Z5040 Z5045 with CE

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

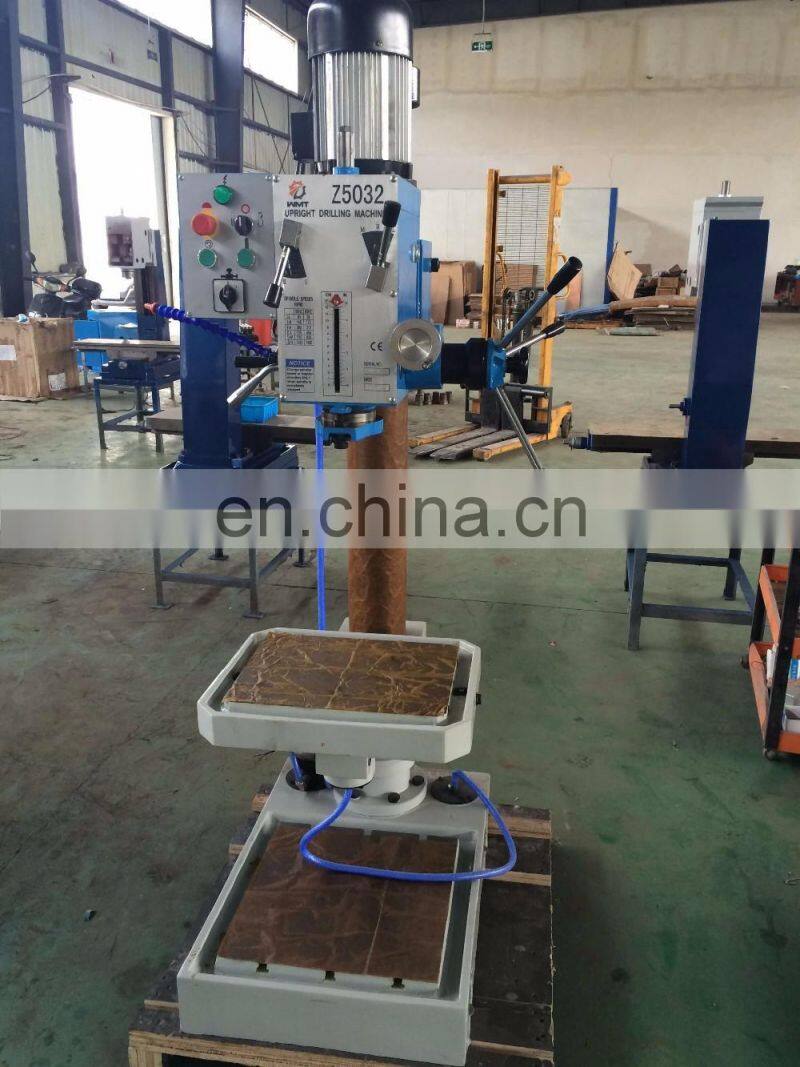

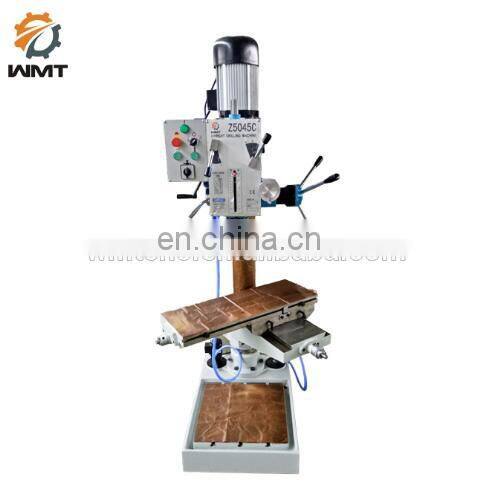

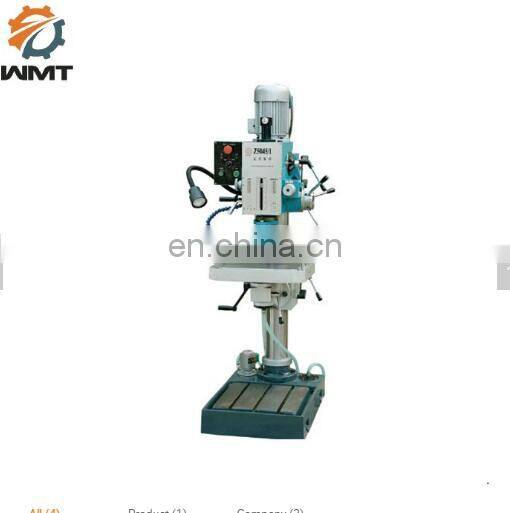

Vertical drilling machine Z5032 Z5040 Z5045

Specification

Specification	Z5032 Z5040 Z5045
Max.drilling capacity	Φ32mm/Φ40mm/Φ45mm (1-1/4"/1-5/8"/1-3/4")
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm(5-1/8")
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Step of spindle auto-feeding	/
Range of spindle auto-feeding amount	/
Min.distance from spindle axis to column	290mm(11-3/8")
Max.distance from spindle nose to worktable	700mm(27-1/2")
Max.distance from spindle nose to stand table	1125mm(44-1/4")
Max.travel of headstock	Φ250mm(10")
Swivel angle of headstock (horizontal / perpendicular)	360°
Max.travel of worktable bracket	Φ600mm(23-5/8")
Worktable size of avaliablity	730×210mm
Swivel angle of table horizontally	360°
Table leaned	/
Size of stand worktable of avaliability	417×416mm
Motor Power	0.75kw/1.1kw/1.5kw
speed of motor	1400rpm
N.W/G.W	470/530kgs
Packing size	1850×950×1000mm
Loading amount/20" container	12pcs

Standdard accessories:
Drill chuck 1-13mm/B16
Draw bar
Allen wrenchs
Wedge
Tie rod

Optional accessories:
Halogen lamp
Coolant system
58pcs clamping kits
Face milling cutter Φ63mm
Milling chuck(8pcs/set)
H/V precision rotary table HV-150mm
Auto-tapping electrical
Millingl vice QH-125mm
Double speed motor

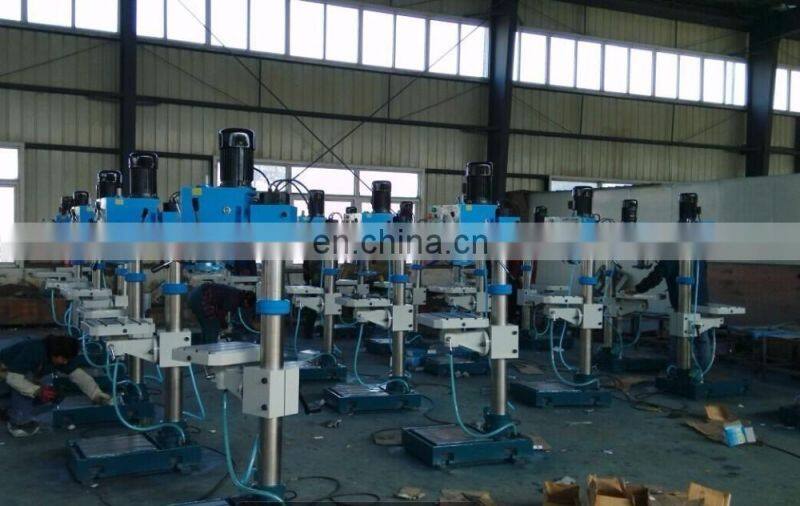

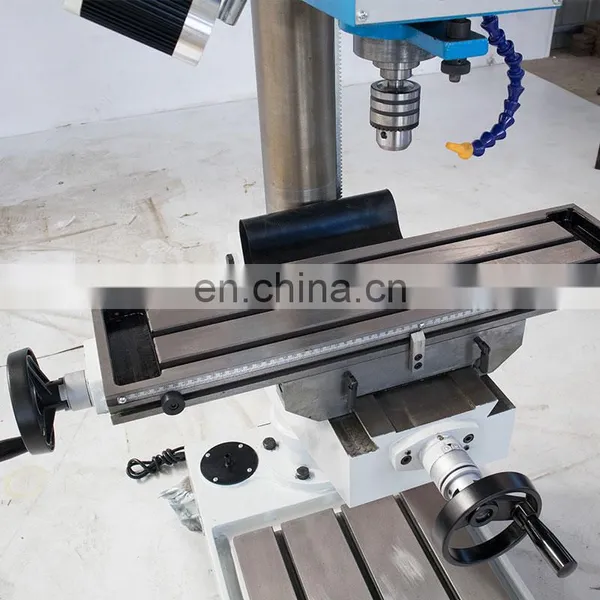

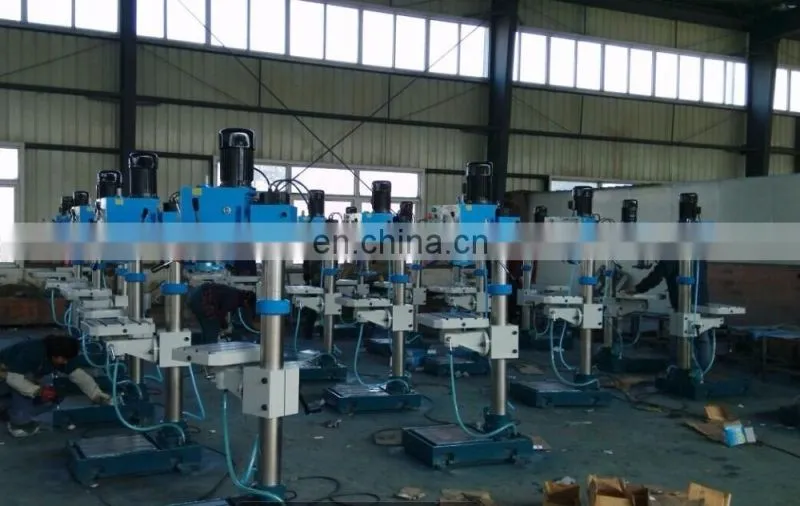

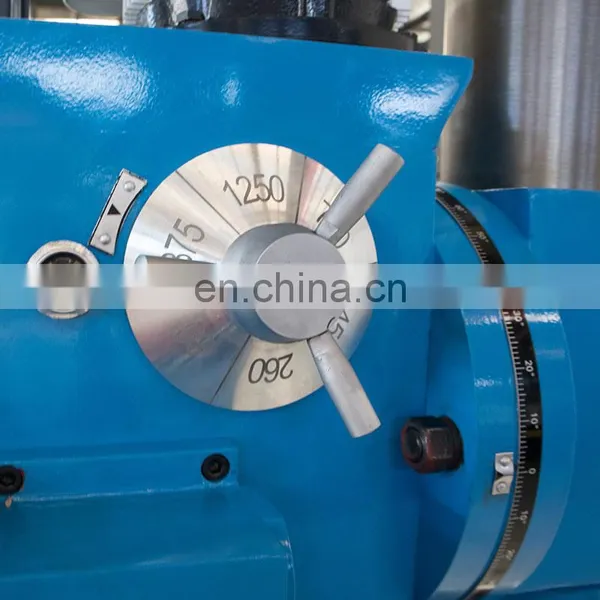

More pics. about machines:
