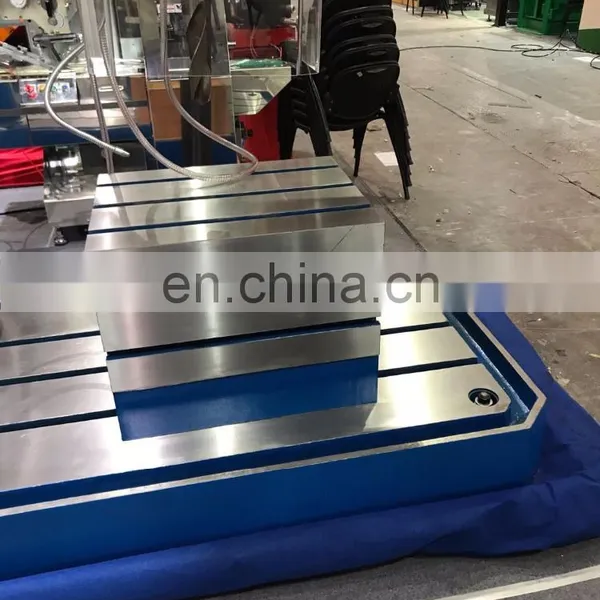

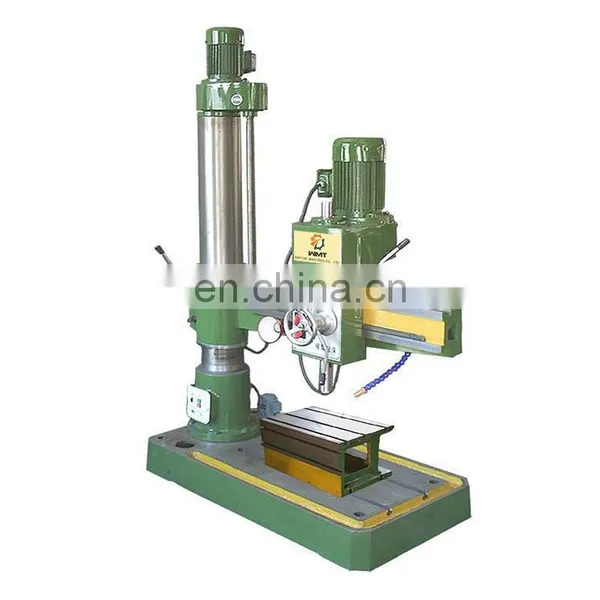

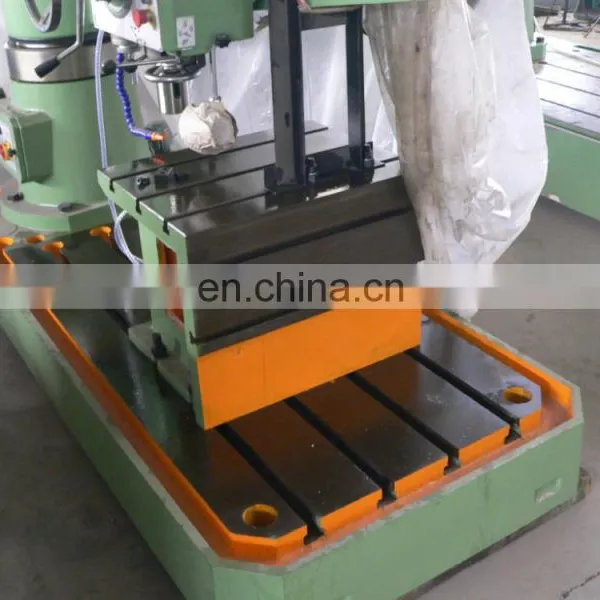

ZQ3032x10 Mechanical Type Radial Drilling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Radial Drilling Machine ZQ3035x10 Manual Type Wide Use Radial Drilling MachineNegotiableMOQ: 1 -
ZQ3040 Small Mechanical China Radial Drilling MachineNegotiableMOQ: 1
-
ZQ3040 Mechanical Radial Drilling Machine for Metal WorkingNegotiableMOQ: 1
-
Z5032C Z5040C Z5045C Metal Hole Vertical Drilling MachineNegotiableMOQ: 1
-
Z5045 Multi-functional Vertical Drilling Machine With CE StandardNegotiableMOQ: 1
Features:
1.Radial drilling machine
2.Transmission:Mechanical transmission
3.Max. drilling diameter:35mm
4.Spindle taper:Morse 4
5.Spindle travel:200mm
Specification:
Technical parameters |
ZQ3032×10 |
Max Drilling Diameter(mm) |
steel 32 /iron 32 |
column dia(mm) |
200 |
Spindle center to column (mm) |
200-910 |
spindle box travel (mm) |
710 |
Spindle nose to table (mm) |
330--1060 |
Arm lifting travel (mm) |
730 |
Spindle travel (mm) |
120 |
Spindle taper(Morse) |
4 |
Spindle speed range (r/min) |
108/162/262/398/665/1000 |
Spindle speeds series(mm/r) |
0.10/0.16/0.25 |
Arm lifting speed (m/min) |
1.21 |
Radial rotation Angle |
360° |
Main motor power( kw) |
1.5/2.2 |
Lifting Motor Power ( kw) |
0.55 |
Coolant motor power ( kw) |
0.04 |
Machine weight (kgs) |
1080 |
Machine overall size (L*W*H mm) |
1400×660×2060 |
