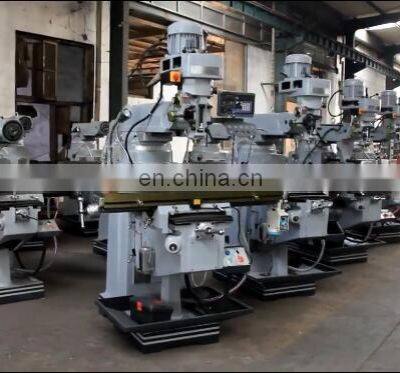

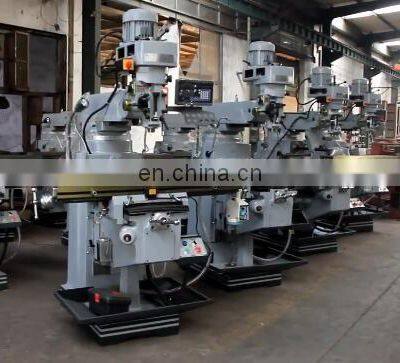

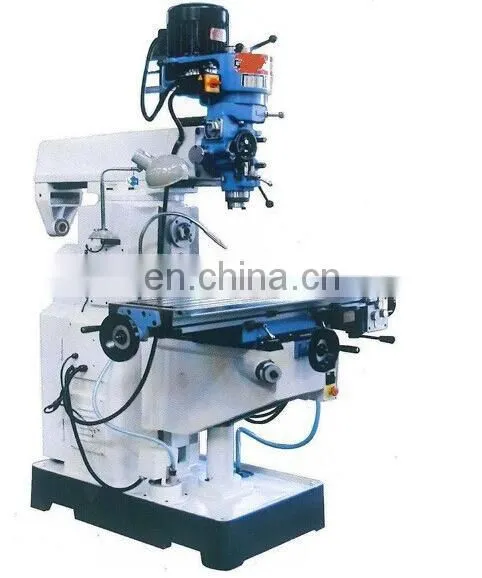

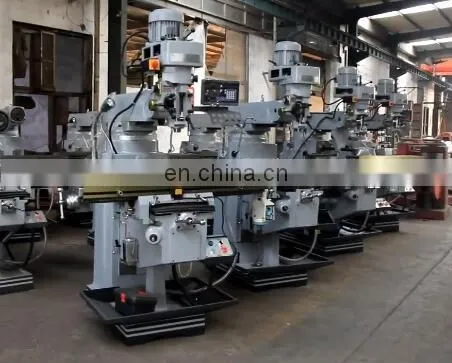

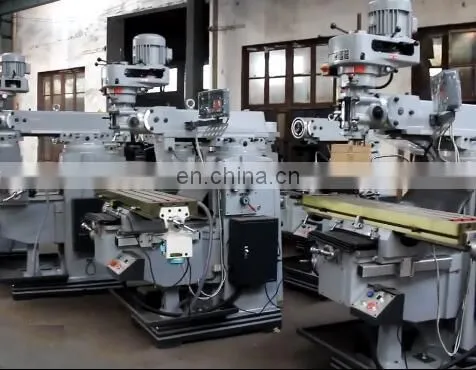

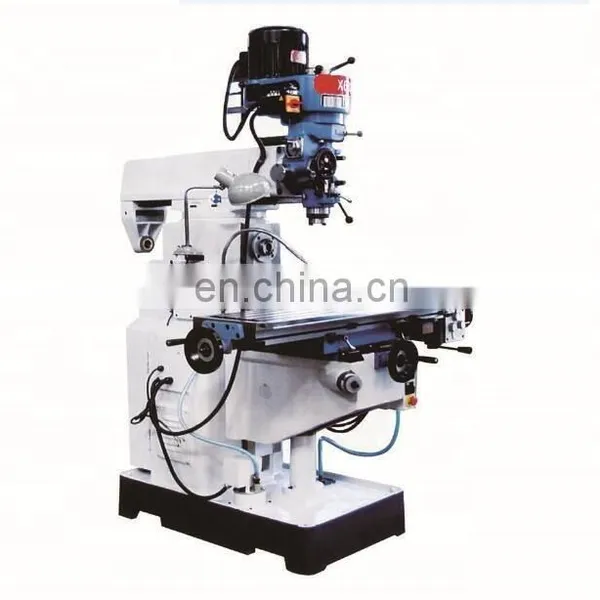

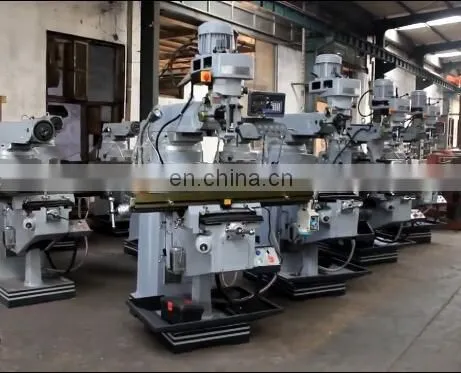

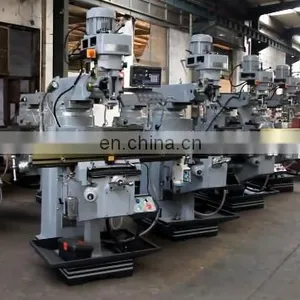

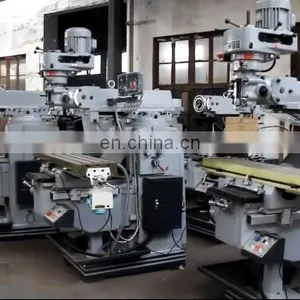

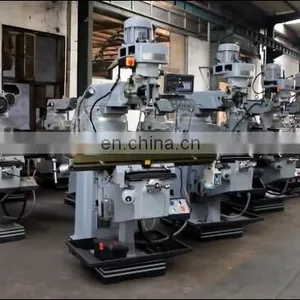

X6328 Universal Milling Machine With X,Z Axis Auto Feeding

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Features:

Horizontal vertical milling variable speed X Zaxis auto-feeding for X6328

X,Y,Z 3 axis auto-feeding for X6328B

Specification	X6328	X6328B
Spindle taper	ISO40(V) ISO40(H)	ISO40(V) ISO40(H)
Max.drilling diameter	30mm	50mm. 30mm
Distance from spindle to table	100-480mm	90-470mm
Distance from horizontal spindle to table	0-350mm	0-380mm
Distance from spindle to column	200-700mm	200-700mm
Spindle speeds	(16)60-4540r.p.m(V) (12)40-1300r.p.m(H)	(16)80-5440r.p.m(V)(12)48-1560r.p.m(H)
Spindle travel	127mm	120mm
Feeding of quill	(3steps)0.04 0.08 0.15	(3steps)0.04 0.08 0.15
Max drilling capacity of auto-feeding	14mm	14mm
Head movement(left/right)	45degrees	45degrees
Table size	1200x280mm	1270x280mm
Table travel(horizontal/cross/vertical)	680x300x380mm	700x300x380mm
Feeding range of longitudinal travel	(8)24-720mm/min	(8)24-420mm/min
X.Y-axis rapid feed speed	1180mm/min for Only X	1080mm/min
Z-axis rapid feed speed		420mm/min
Z-axis motor power		750w
Max weight of workpiece	280kg	350kg
T-slot number /width/distance	3/14mm/63mm	3/14mm/70mm
Horse power for main motor	2.25KW(V)2.2KW(H)	2.25KW/2.2KW
X axis driving motor	370W	750W
Overall dimension	1660x1340x2150mm	1700x1600x2300mm
N.W./G.W.	1250/1350kg	1660/1760kg
