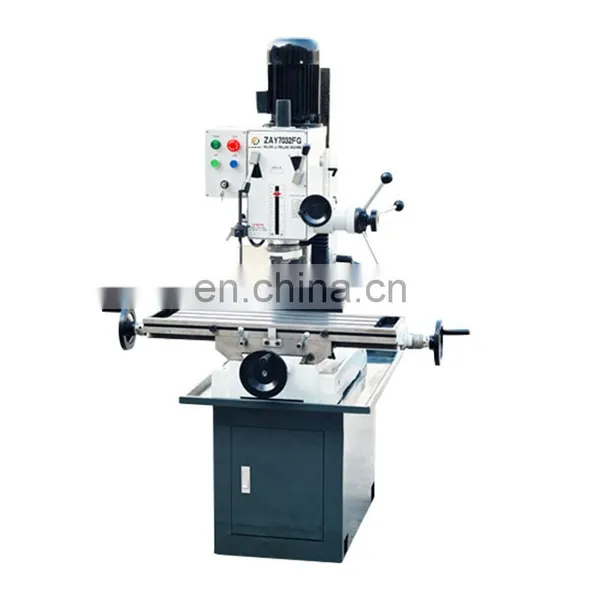

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE thumbnail-3

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE thumbnail-4

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE photo-1

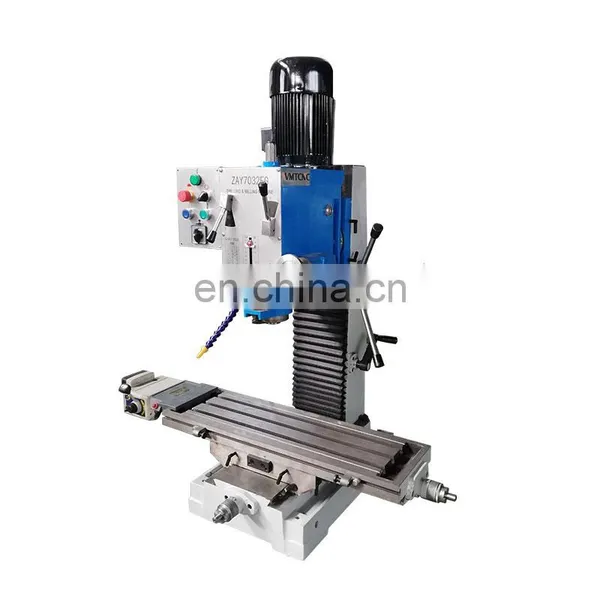

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE photo-2

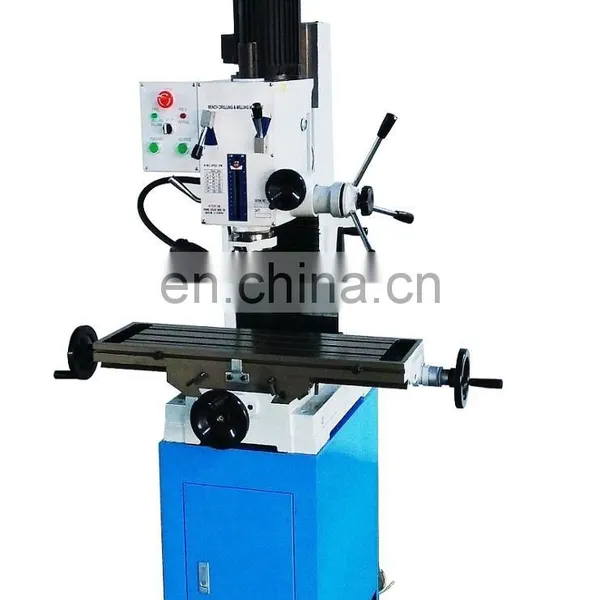

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE photo-3

ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CE photo-4

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Features

1. ZAY7032FG Milling drilling,tapping boring,reaming.
2. Head swivels ±90° verticaly.
3. Spindle micro feed precisely.
4. Adjustable gibs on table precision.
5. Accurate position, strong rigidity,powerful cutting.

Model	ZAY7032FG	ZAY7045FG	ZAY7045M
Max Face mill capacity	Φ32mm(1-1/4")	Φ45mm(1-3/4")
Max End mill capacity	Φ63mm(2-1/2")	Φ80mm(3-1/8")
End milling capacity	Φ20mm(3/4")	Φ32mm(1-1/4")
Max.distance from spindle nose to table	450mm(17-3/4")	450mm(17-3/4")	420mm(17-3/4")
Min.distance from spindle axis to column	260mm(10-1/4")
Spindle travel	130mm(5-1/8")
Spindle taper	MT3 or R8	MT4 or R8
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250 rpm
60Hz	95-1500 rpm
Swivel angleof headstock(perpendicularly)	±90°
Table size	800mm×240mm(31-1/2"×9-1/2" )
Forward and backward travel of table	175mm(6-7/8")
Left and right travel of table	500mm(20")
Motor Power	1.5KW
Net weight/gross weight	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	880×770×1160mm

Detailed Images

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
