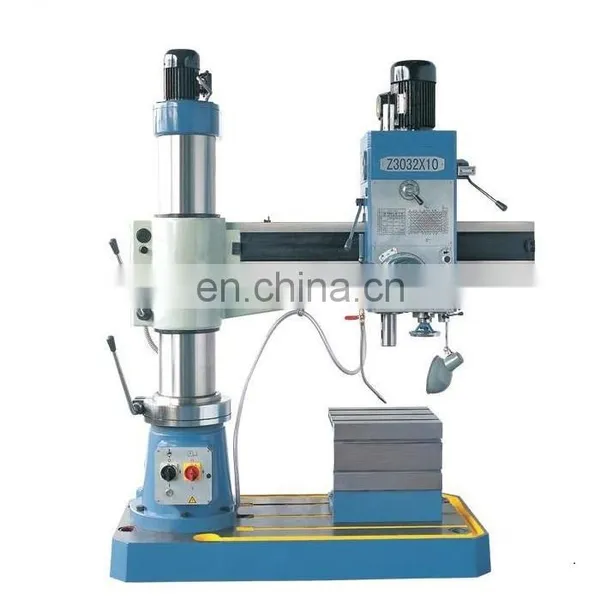

Z3032x10 Factory Sale Cheap Hydraulic Radial Drilling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
13mm Factory Directly Sale Mini Drilling and Milling Machine XJ9512 With CE for HobbyNegotiableMOQ: 1 -
Bench Type Worktable Z3040/13 Cheap Radial Drilling Machine With CE for SaleNegotiableMOQ: 1
-
Top Sale Z3080/25 Heavy Drill Machinery Cheap Radial Drilling MachineNegotiableMOQ: 1
-
ZAY7045M Benchtop Milling Machine With Swivel WorktableNegotiableMOQ: 1
-
ZAY7032FG 32mm Gear-head Bench Type Drilling and Milling Machine With CENegotiableMOQ: 1
Features:
Radial arm drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
Perfect safety protector and outer post protection are available.
In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
Radial drilling machine Z3032X10 |
||
Max.Drilling Capacity |
32mm |
|
Spindle travel |
250mm |
|
Distance spindle axis to column surface |
1000/200mm |
|
Max.Distance spindle nose to worktable |
664mm |
|
Max.Distance spindle nose to base |
1064mm |
|
Spindle taper |
MT.4 |
|
Spindle speeds range(rpm) |
71-1800rpm |
|
Spindle speeds |
8 |
|
Dimension of worktable surface |
450×400×400mm |
|
Dimension of base |
740×1500mm |
|
Overall height |
2354mm |
|
Motor |
2.2KW |
|
G.W./N.W. |
1500/1400kg |
|
Ship measurement |
185×90×210cm |
|
You may find the accessories as you like:
