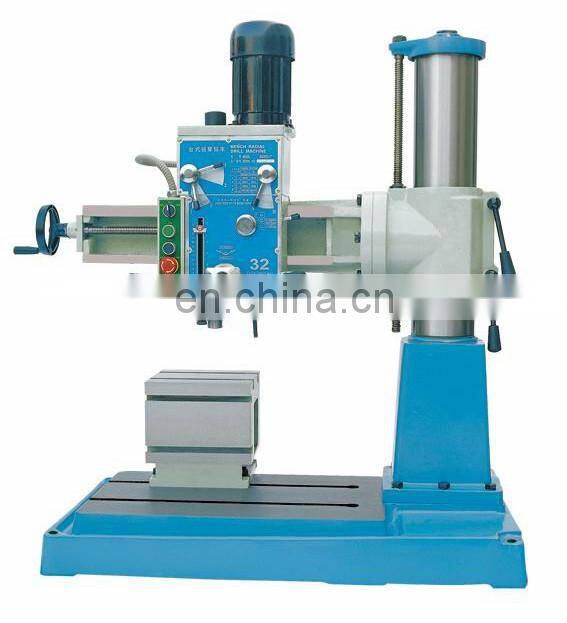

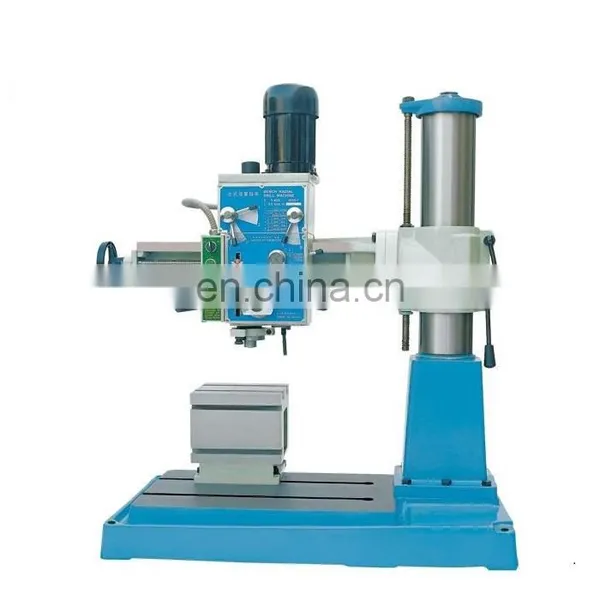

Z3032 small hydraulic Radial drilling machine

Name: Z3032 small hydraulic Radial drilling machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Features:

Radial drilling machine Z3032 is provided with hydraulic presetting speed shift mechanism to save auxiliary time. It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently. Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism. Perfect safety protector and outer post protection are available. In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.

Max.Drilling Capacity	31.5/25mm
Spindle travel	140mm
Distance spindle axis to column surface	720/300mm
Max.Distance spindle nose to worktable	380mm
Max.Distance spindle nose to base	680mm
Spindle taper	MT.3
Spindle speeds range(rpm)	100-1600rpm
Spindle speeds	8
Dimension of worktable surface	250×250×250mm
Dimension of base	1050×550mm
Overall height	1195mm
Motor	0.75KW
G.W./N.W.	400/380kg
Ship measurement	119×64×133cm

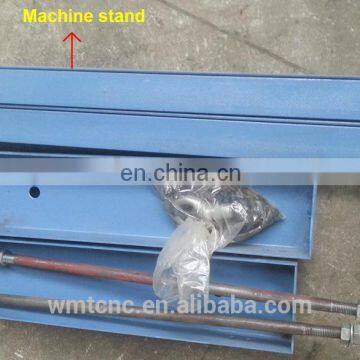

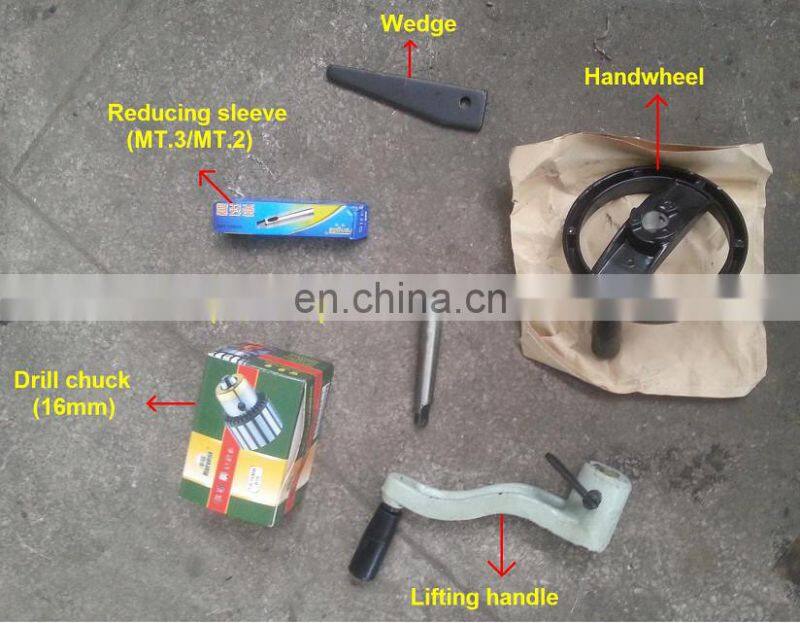

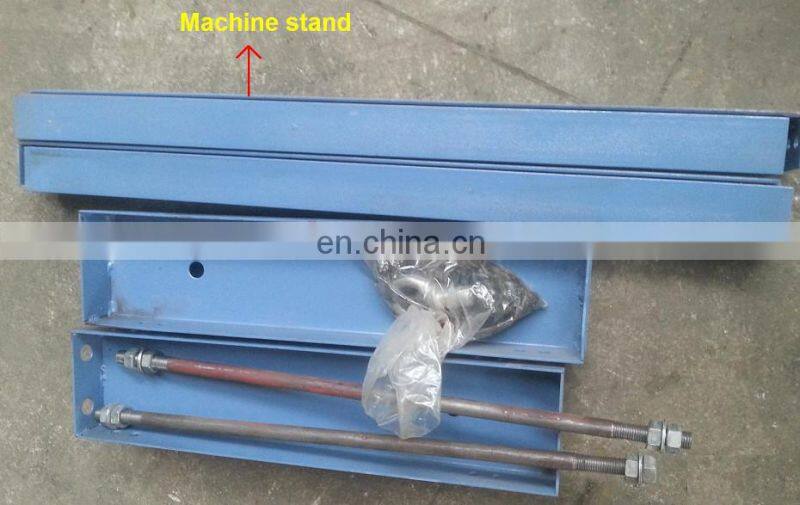

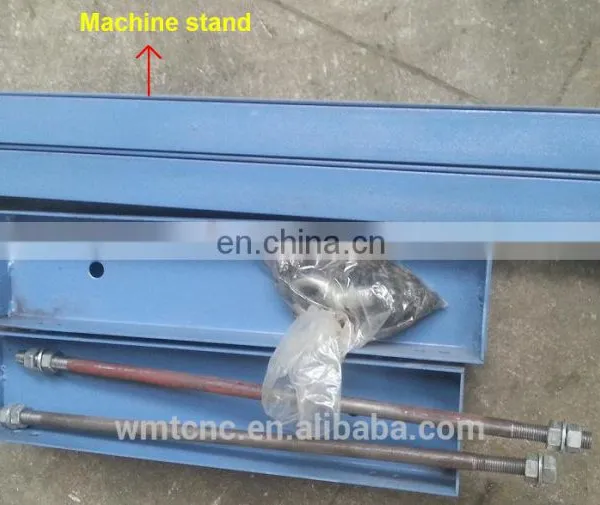

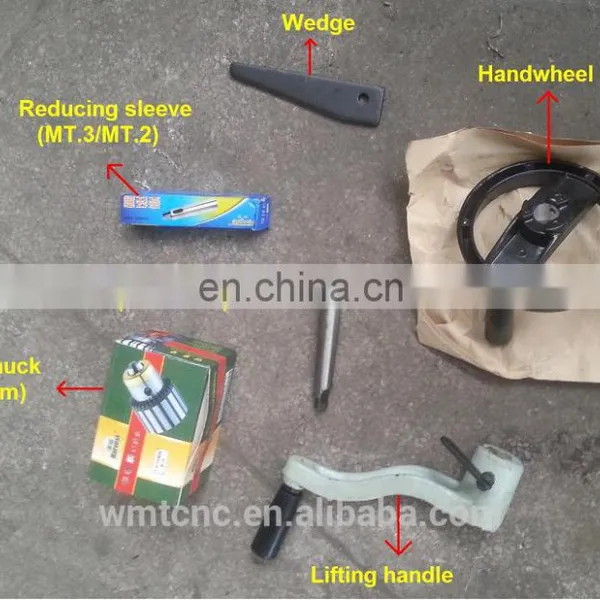

You may find the accessories as you like:
