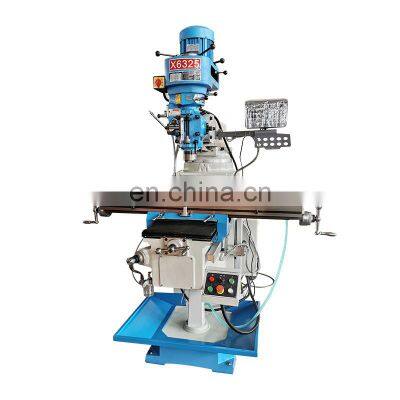

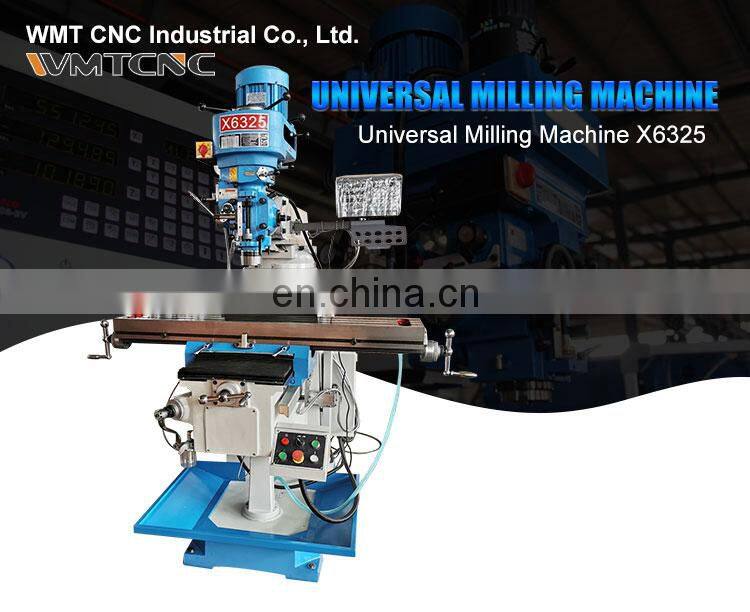

Small Milling X6325 High Rigid Metal Milling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
X6330 Factory Direct Sale Price Vertical Universal Milling Machine With CE CertificateNegotiableMOQ: 1 -
Universal Milling Machine ZX7550ZW With Vertical Spindle Auto-feedingNegotiableMOQ: 1
-
Z3032 Small Hydraulic Radial Drilling MachineNegotiableMOQ: 1
-
Z3032x10 Factory Sale Cheap Hydraulic Radial Drilling MachineNegotiableMOQ: 1
-
13mm Factory Directly Sale Mini Drilling and Milling Machine XJ9512 With CE for HobbyNegotiableMOQ: 1
Product Description
X6325 Metal Milling Machine Features:
1. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
2. The guideway on saddle is lined with TF wearable material.
3. Fixed structure is used to connect the mill head without adapter, which makes the cut intensity well.
2. The guideway on saddle is lined with TF wearable material.
3. Fixed structure is used to connect the mill head without adapter, which makes the cut intensity well.
Specification | Model X6325 |
Worktable size | 1270×254mm (Optional: 1370×254mm) |
T-slot (No./Width/Pitch) | 3/16/65mm |
Table travel (X/Y/Z) | 800×400×400mm |
Spindle taper:vertical/horizontal | R8 or NT30 |
Distance between horizontal nose and table surface | 60-460mm |
Ditance between spindle axis and ram surface | 270mm |
Spindle speed range | 66-4540rpm |
Arm travel | 400mm |
Main motor power | 3HP |
Machine overall size (L*W*H) | 1700×1600×2150mm |
NW/GW | 1200kgs |

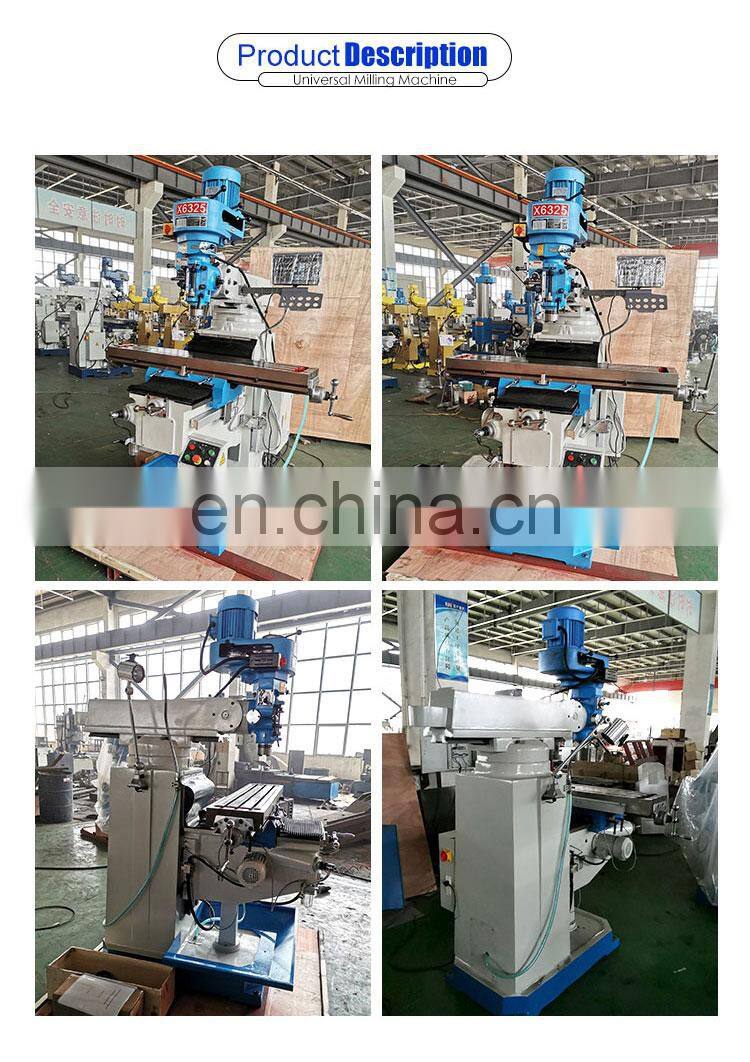

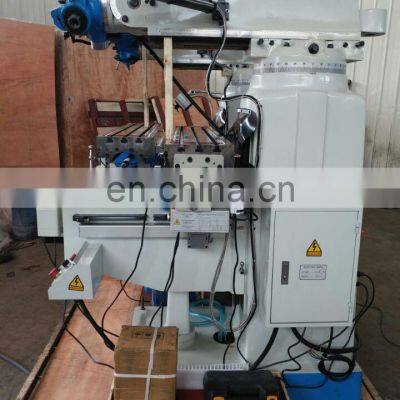

Detailed Images
Standard accessories:
1. Work light
2. coolant pump
3. machine vice
4. 8pcs/set milling chuck
5. tool box with tools
Optional accessories:
1. 3-axis DRO
2. Oil tray
4. CE electrical part with protection
5. Power feed
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
