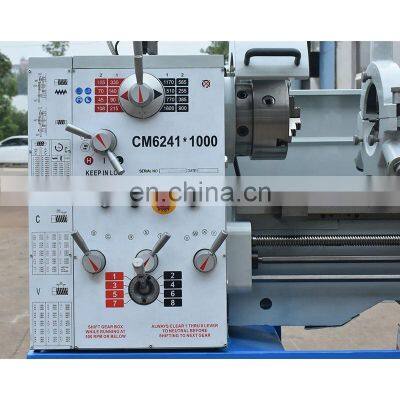

CM6241 52mm Spindle Bore Manual Engine Lathe Machine With CE for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C0636B Horizontal Precision Metal Bench Lathe Machine With Competitive PriceNegotiableMOQ: 1 -
Lathe Tool C0636A Cheap Lathe Machine Tool PrecisionNegotiableMOQ: 1
-
CQ6240F Bench Lathe Machine Metal Machine for Sale With CENegotiableMOQ: 1
-
CJM0632V Parallel Lathe Small Lathe Machine With Variable SpeedNegotiableMOQ: 1
-
CJM320C 750mm Small Lathe Machine Mini Metal Lathe Machine Price With CENegotiableMOQ: 1
Product Description
52mm spindle bore CM6241 cheap heavy engine lathe machine with CE for sale.
Features:
Super voice frequency heated bedways cheap cnc lathe machine
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Specification |
CM6241×1000 /1500mm |
Swing over bed |
410mm |
Swing over cross slide |
255mm |
Swing in gap |
580mm |
Length of gap |
19mm |
Distance between centers |
1000mm /1500mm |
Center height |
205mm |
Width of bed |
250mm |
Spindle nose |
D1-6 |
Spindle bore |
52mm |
Taper of spindle bore |
MT6 |
Range of spindle speed |
16 changes 45-1800r/min |
Travel of compound rest |
102mm |
Max.travel of cross slide |
210mm |
Leadscrew pitch |
4T.P.I. |
Max.Section of tool |
20×20mm |
Longitudinal feeds range |
0.05-1.7mm/rev(0.002-0.067/rev) |
Cross feeds range |
0.025-0.85mm(0.001-0.0335/rev) |
Cross feeds range |
0.025-0.85mm(0.001-0.0336/rev) |
Inch threads range |
45kinds 2-72T.P.I |
Diametrical pitches range |
21kinds 8-44D.P. |
Module pitches range |
18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve |
50mm |
Travel of tailstock sleeve |
120mm |
Taper of tailstock sleeve |
MT4 |
Power of main motor |
2.2/3.3kw(optional 3.0/4.5kw) |
Power of coolant pump |
90w |
Overall dimension |
1940/2440×850×1300mm |
Packing size |
2060/2560×900×1640mm |
N.W/G.W |
1500/1750kgs 1550/1800kgs |
