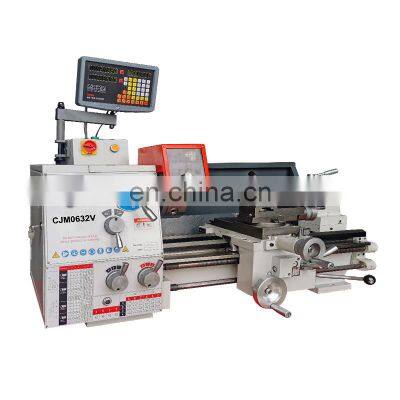

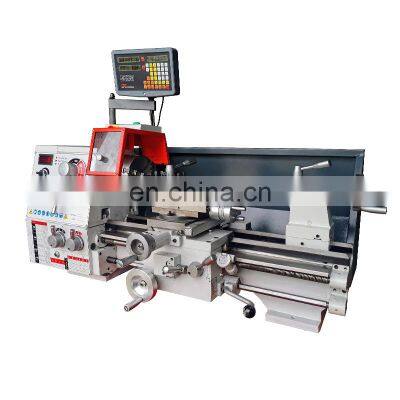

CJM0632V Parallel Lathe Small Lathe Machine With Variable Speed

New Designed Product CJM0632V
An economical and practical processing lathe that not only has the relatively complete functions of ordinary lathes,
but also has the characteristics of lightness and flexibility of light bench lathes, compact and reasonable structure, simple and flexible operation, excellent cutting rigidity, complete basic functions, and quick installation and maintenance.
The machine can be used for turning internal and external cylindrical surfaces, end surfaces, cones, and metric and inch threads. It is widely used in small and medium-sized enterprises, scientific research institutions, individual industries and repair industries at home and abroad; with corresponding functional modules, it can achieve other Special cutting processing.
Model | CJM0632V |
Max Swing diameter on the bed | 320 mm |
the distance between center | 500/750mm |
Max swing over cross slide | 180 mm |
spindle bore | 38 mm |
spindle taper | MT.5# |
Max longitudinal travel over toolpost | 160 mm |
Max cross slide travel over toolpost | 75 mm |
Metric thread kinds | 18 |
Metric thread range | 0.20~3.5 mm |
Inch thread kinds | 34 |
Inch thread range | 41/2~48 1/n″ |
Moudle thread kinds | 16 |
Moudle thread range | 0.20~1.75 π |
Pitch thread kinds | 24 |
Pitch thread range | 16~120 π/DP″ |
Longitudinal feed range | 0.08~0.56 mm/r |
Cross-feed range | 0.04~0.28 mm/r |
Max tailstock quill travel | 60 mm |
Tailstock quill taper | MT.3# |
Spindle speed kinds | 3 Kinds+Variable speed in one kind |
Spidnle speed range | 30~2000 r/mim |
Main motor | 750W 380V 50HZ (or 220V 50HZ) |
New weight(without stand) | 300㎏ |
Gross weight(without stand) | 350㎏ |
