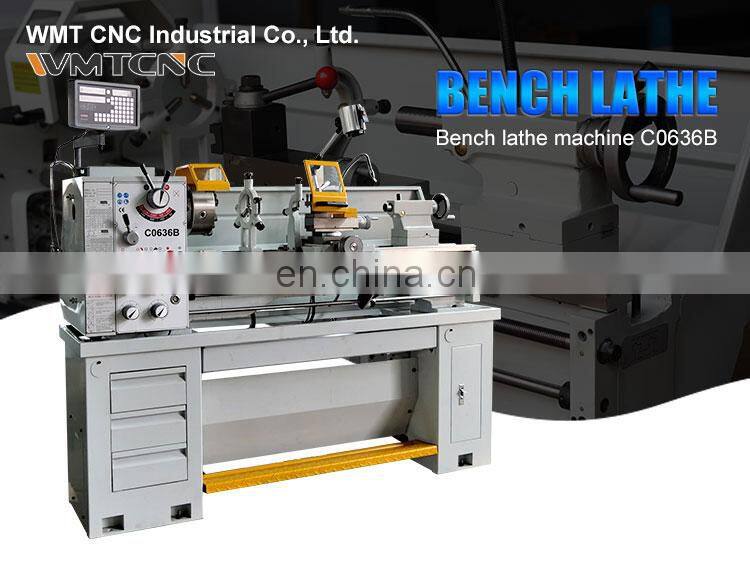

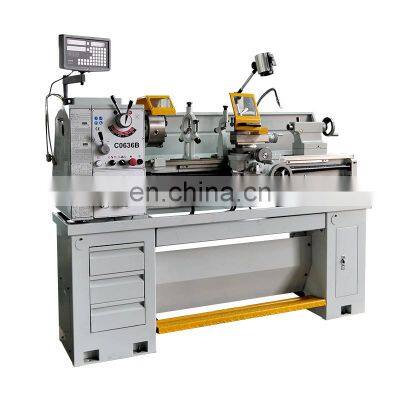

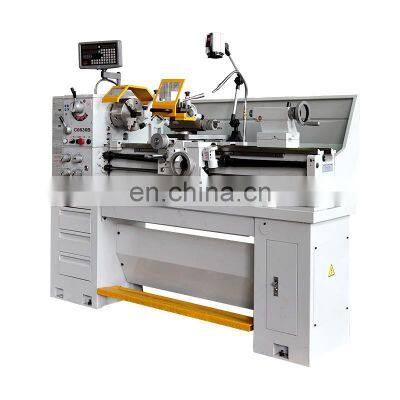

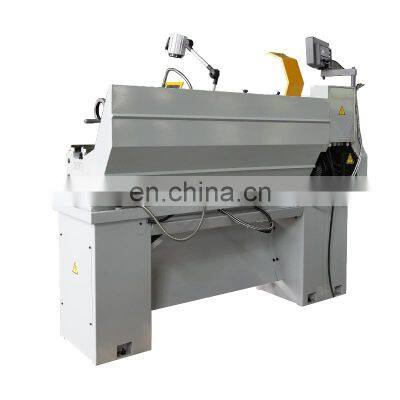

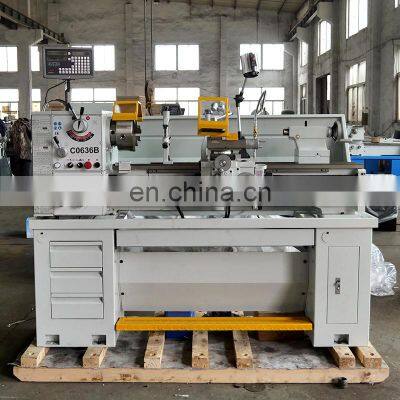

C0636B Horizontal Precision Metal Bench Lathe Machine With Competitive Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lathe Tool C0636A Cheap Lathe Machine Tool PrecisionNegotiableMOQ: 1 -
CQ6240F Bench Lathe Machine Metal Machine for Sale With CENegotiableMOQ: 1
-
CJM0632V Parallel Lathe Small Lathe Machine With Variable SpeedNegotiableMOQ: 1
-
CJM320C 750mm Small Lathe Machine Mini Metal Lathe Machine Price With CENegotiableMOQ: 1
-
Parallel Lathe DIY0712 7'''x12'' Mini Metal Lathe Machine for Household Use With CENegotiableMOQ: 1

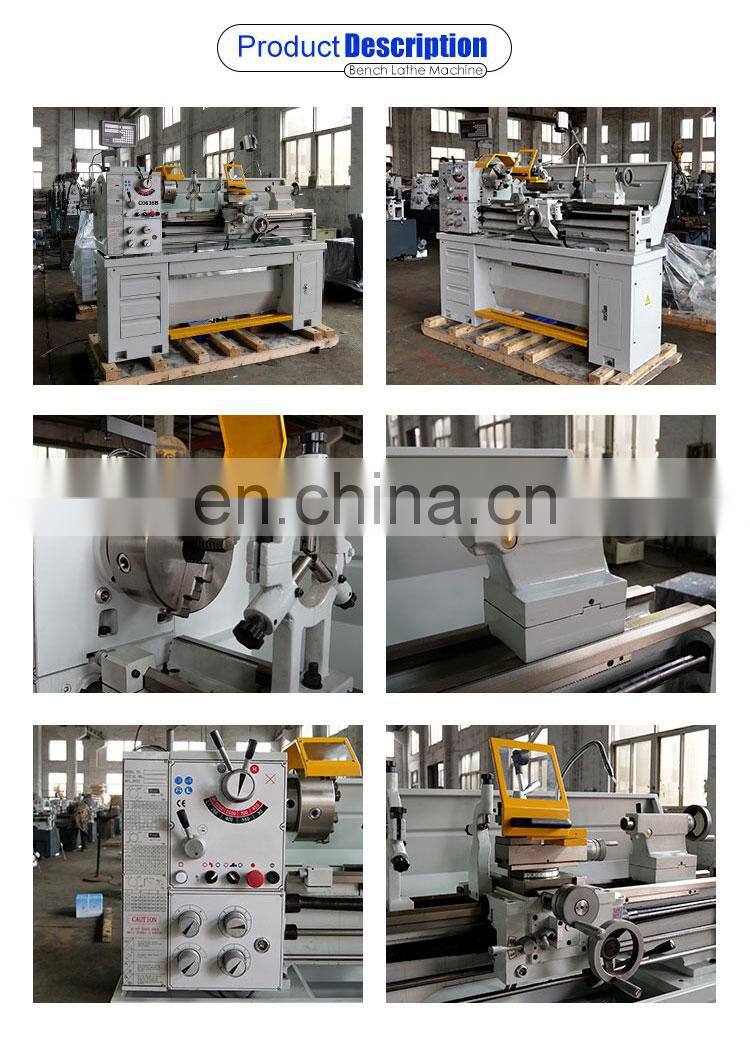

Product Description
Machine features of bench lathe:
1. Precision ground and hardenedbed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
Max. swing over bed | 360mm | |
Max. swing over cross | 212mm | |
Max. swing in gap | 491mm | |
Width of bed | 187mm | |
Spindle | ||
Spindle speed range | 8 steps 90-2000rpm | |
Spindle bore | 51mm | |
Spindle nose | D5 | |
Spindle taper | MT6 | |
Center height | 178mm | |
Thread cutting | ||
Threads metric pitches | 0.4-7mm/26kinds | |
Threads imperial pitches | 4-56TPI/34kinds | |
Threads diametral | / | |
Threads module pitches | / | |
Range of feeds | ||
Compound rest travel | 90mm | |
Cross slide travel | 170mm | |
Longitudinal feeds | 0.052-1.392mm/rev /32kinds | |
Cross feeds range | 0.009-0.253mm/rev (Metric lathe) 0.015-0.402mm/rev (Inch lathe) | |
Tailstock sleeve | ||
External diameter | 32mm | |
Max. travel | 100mm | |
Taper of bore | MT3 | |
Motor | ||
Spindle motor power | 1.5kw | |
Coolant pump power | 40w | |
Others | ||
Tool section | 16*16mm | |
Packing dimension | 1935*750*1500mm | |
Net/Gross weight | 600/700kg | |

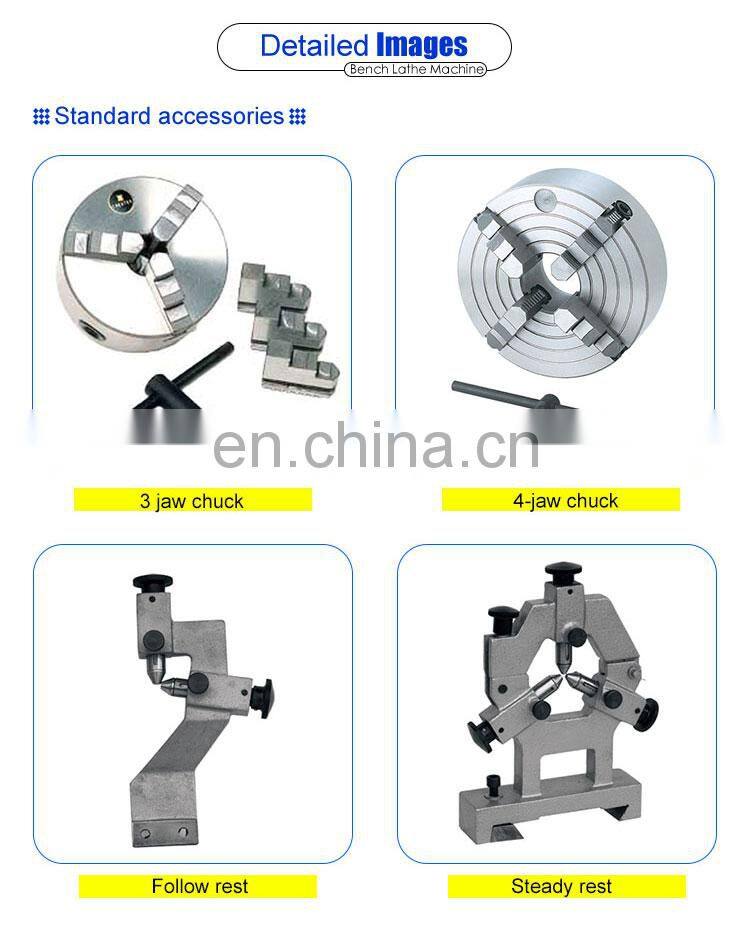

Details Images
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
