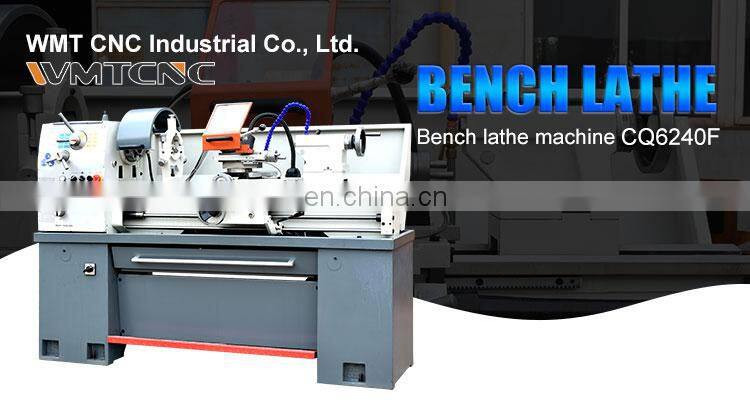

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > CQ6240F Bench Lathe Machine Metal Machine for Sale With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CJM0632V Parallel Lathe Small Lathe Machine With Variable SpeedNegotiableMOQ: 1 -
CJM320C 750mm Small Lathe Machine Mini Metal Lathe Machine Price With CENegotiableMOQ: 1
-
Parallel Lathe DIY0712 7'''x12'' Mini Metal Lathe Machine for Household Use With CENegotiableMOQ: 1
-
DIY0816 DIY Mini Hobby Bench Lathe Machine Price With Variable SpeedNegotiableMOQ: 1
-
MP800 Multi-purpose Combined Mini Metal Lathe Machine for Metal TurningNegotiableMOQ: 1

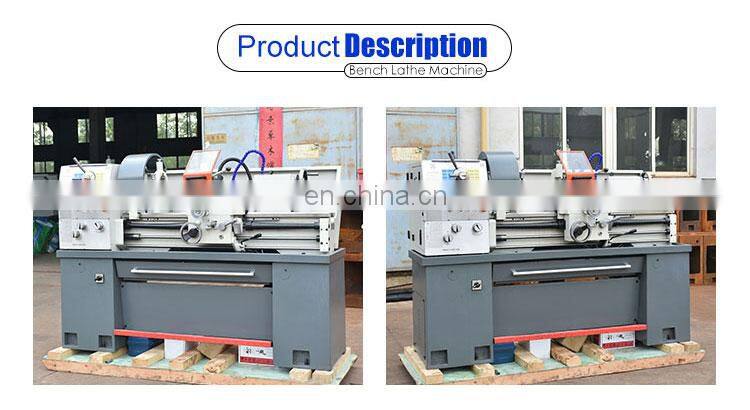

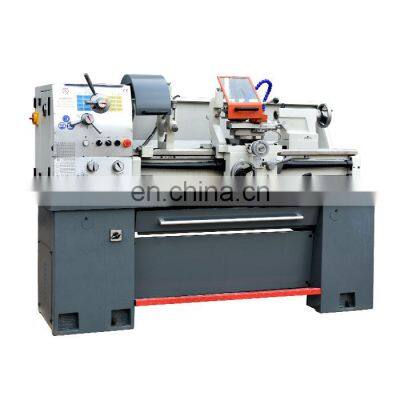

Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
Circular appearance as optional
51mm big spindle bore as optional
Specification | CQ6240F |
Max,swing over bed | 400mm |
Max.swing over cross slide | 264mm |
Max.swing in gap | 550mm |
Max.length of workpiece | 1000mm |
Width of bed | 206mm |
Spindle speed range | (16 changes)45-1800rpm |
Spindle bore | 51mm |
Spindle nose | D5 |
Taper of spindle bore | MT5 or MT6 |
Center height | 178mm |
Threads metric pitches | 0.4-7mm/28kinds(Metric lathe) 0.45-7.5mm/22kinds(Inch lathe) |
Threads imperial pitches | 4-56TPI/28kinds(Metric lathe) 4-112TPI/40kinds(Inch lathe) |
Compound rest travel | 90mm |
Cross slide travel | 150mm |
Max.section of tool | 16x16mm |
Longitudinal feeds range | 0.043-0.653mm/rev(Metric lathe) 0.0012-0.0297in/rev(Inch lathe) |
External diameter | 45mm |
Max.travel | 100mm |
Taper of bore | MT3 |
Main motor power | 1.5/2.4KW |
Coolant pump power | 40W |
Packing size(LxWxH) | 1950X750X1500mm |
Net weight | 700kg |
Gross weight | 800kg |
