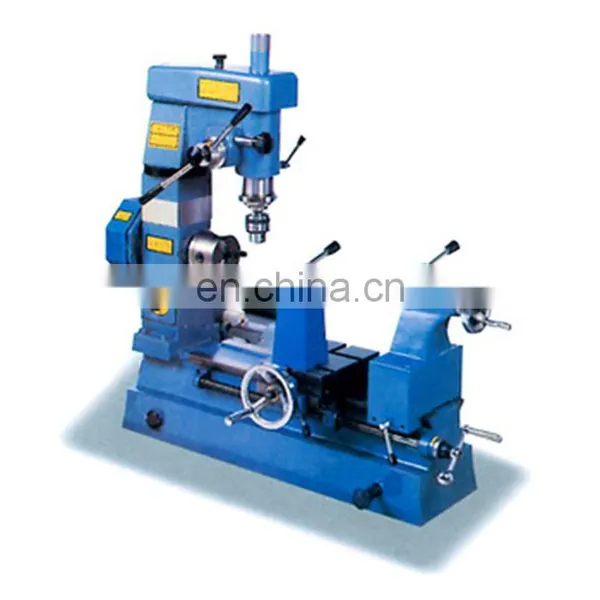

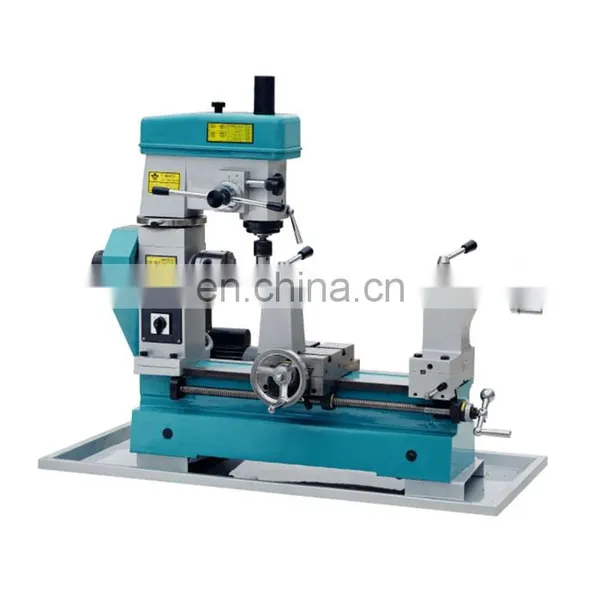

HQ400 3 in 1 lathe machine from China.

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features of 3 in 1 lathe machine

1. A kind of combination machine with turning,milling,drilling and threading.
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other material
4. Excellant advantage of various functions,small occupation and economilization
5. Widely used in job-shops,car shops,technical school,factories and family.For machine parts repairing and making,education,training.etc.

3 in 1 lathe machine			HQ400
LATHE	Swing over bed	420mm
		Distance between centers	400mm
		Max. longitudinal travel	380mm
		Max. cross travel	120mm
		Taper of spindle	M. T. 3
		Spindle hole	φ 20mm
		Step of spindle speed	3
		Range of spindle speed	500,900,1600 r. p. m
		Barrel travel	70mm
		Barrel taper	M. T. 3
DRILLING & MILLING	Max. drilling capacity	φ 15mm
		Worktable size (L*W)	200× 150mm²
		Max. end mill capacity	φ 20mm
		Max. face capacity	φ 63mm
		Spindle travel	85mm
		Headstock travel of up and down	80mm
		Spindle taper	M. T. 3
		Step of spindle speed	6
		Range of spindle speed	375-1600r. p. m
		Swivel angle of headstock	± 360°
MOTOR	Motor power	0.55Kw
SHIPMENT DATA	Packing size	1030× 580× 1070mm
		N. weight/G. weight	155kg/185kg
		Loading amount	44pcs/20container
