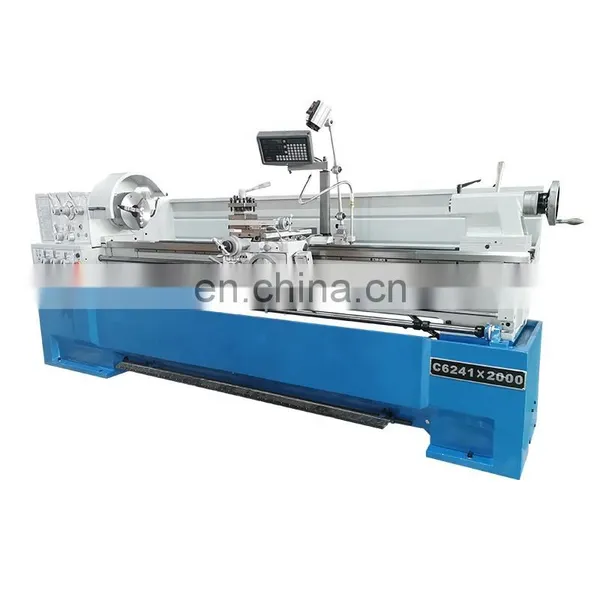

C6241x2000 mm metal manual heavy duty lathe machine

Name: C6241x2000 mm metal manual heavy duty lathe machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Features:

Big spindle bore lathe machine: 58mm.optional:80mm C6241*1000-3000mm Long ground bed way

Main specification

Specification	C6241	C6246	C6251	C6256
Swing over bed	Φ410mm	Φ460mm	Φ510mm	Φ560mm
Swing over cross slide	Φ220mm	Φ270mm	Φ300mm	Φ350mm
Swing in gap	Φ640mm	Φ690mm	Φ738mm	Φ788mm
Distance between centers	1000mm/1500mm/2000mm/3000mm
Valid length of gap	165mm			200mm
Width of bed	300mm			350mm
Spindle nose	D1-6			D1-8
Spindle bore	Φ58mm			Φ80mm
Taper of spindle bore	MT6			MT7
Range of spindle speed	12 changes, 25-2000r/min			12changes,25-1600r/min
Max.travel of top slide	128mm			130mm
Max.travel of cross slide	285mm			326mm
Max.section of tool	25×25mm
Pitch thread of leadscrew	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds,0.031-1.7mm/rev			35kinds,0.059-1.646mm/rev
Cross feeds range	42 kinds, 0.014-0.784mm/rev			35kinds,0.020-0.573mm
Metric threads range	41 kinds, 0.1-14mm			47kinds,0.2-14mm
Inch threads range	60 kinds, 2-112T.P.I.			60kinds,2-112T.P.I
Diametrical pitches range	50 kinds, 4-112DP			50kinds,4-112D.P.
Module pitches range	34 kinds, 0.1-7MP			39kinds,0.1-7M.P.
Tailstock quill diameter	Φ60mm			Φ75mm
Tailstock quill travel	128mm			180mm
Tailstock quill taper	MT4			MT5
Power of main motor	5.5kw(7.5HP) 3PH			7.5kw(10HP)3PH
Power of coolant pump	0.1kw(1/8HP) 3PH
Overall dimension	2200/2750/3250×1080×1370mm			2900/3400×1120×1430mm
Packing size	2250/2800/3300×1120×1620mm			2960/3460×1130×1820mm
Net weight	1670/1920/2070kgs			2335/2685kgs
Gross weight	1980/2265/2450kgs			2700/3070kgs

Machine Details
