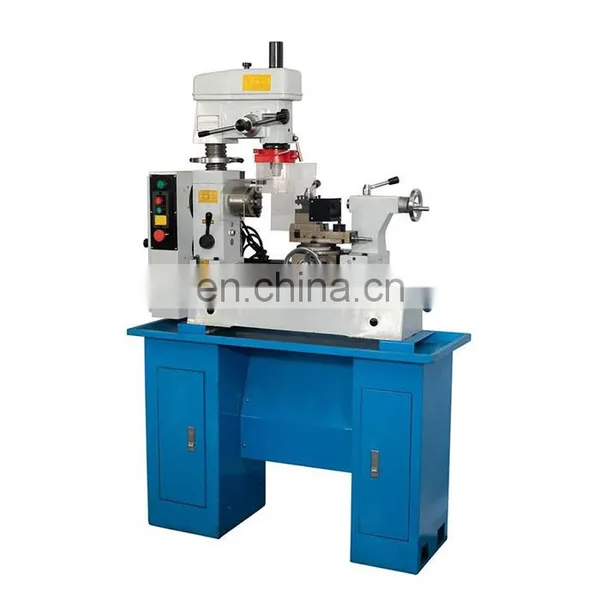

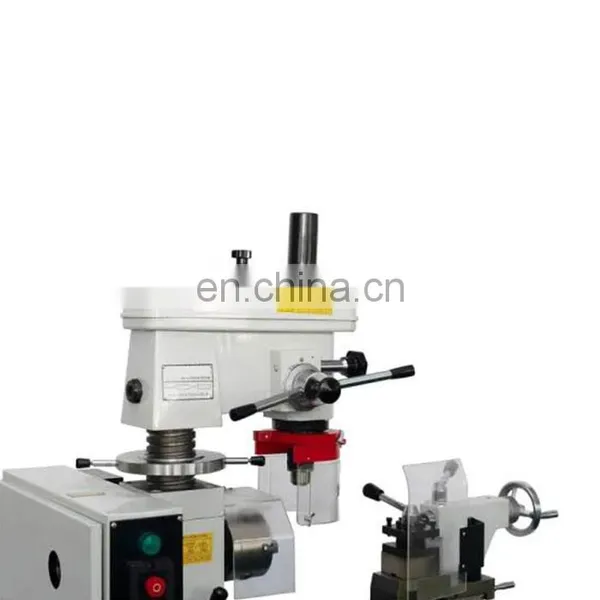

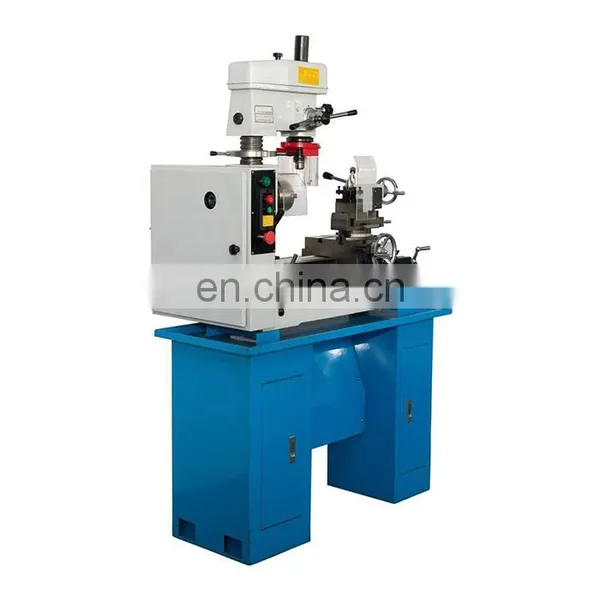

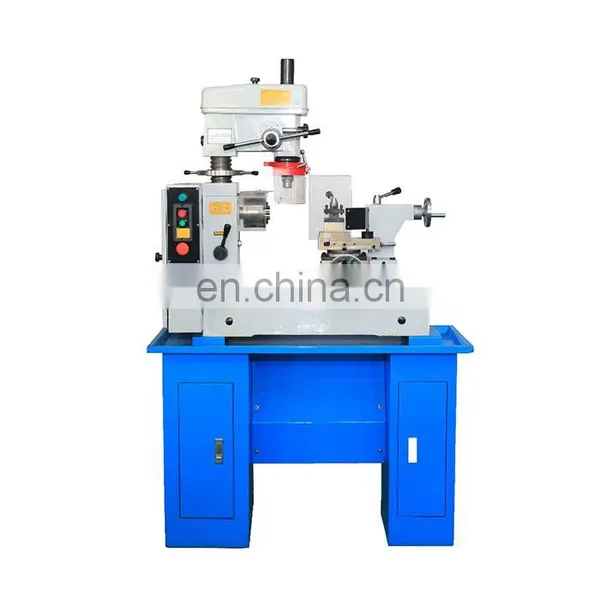

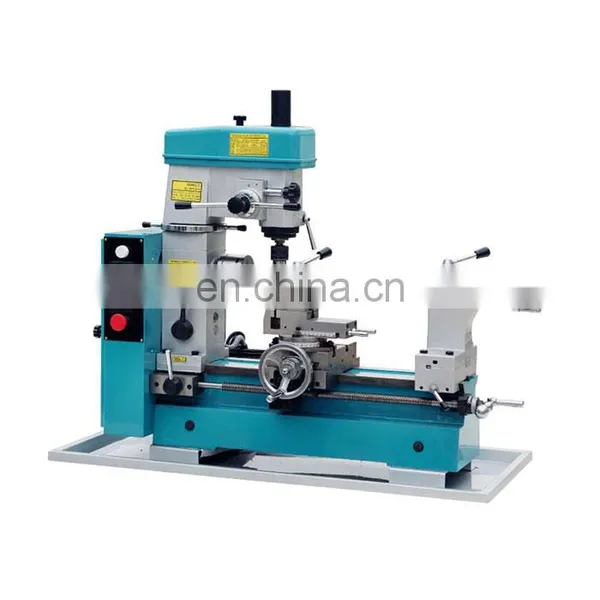

HQ400-3A Mini Lathe Mill Drill Combo for Sale From China.
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HQ400-3A Metal-working Lathe Mill ComboNegotiableMOQ: 1 -
HQ400-3A Mini Hobby Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
HQ400 3 in 1 Lathe Machine From China.NegotiableMOQ: 1
-
HQ400 Parallel Lathe Manual Lathe Machine With Drilling and Milling Function for Hobby UserNegotiableMOQ: 1
-
Hot Sale Bench Lathe Machine Metal Lathe Mini CJM360 Metal Lathe With CENegotiableMOQ: 1
Product Description
Features of manual lathe machine HQ400-3A
1. A kind of combination machine with turning,milling,drilling and threading.
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other material
4. Excellant advantage of various functions,small occupation and economilization
5. Widely used in job-shops,car shops,technical school,factories and family.For machine parts repairing and making,education,training.etc.
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other material
4. Excellant advantage of various functions,small occupation and economilization
5. Widely used in job-shops,car shops,technical school,factories and family.For machine parts repairing and making,education,training.etc.
MULTI-PURPOSE MACHINE |
HQ400-3A |
HQ400-3B |
HQ400-3L |
|||
LATHE |
Swing over bed |
420mm |
420mm |
420mm |
||
Distance between centers |
400mm |
400mm |
500mm |
|||
Max. longitudinal travel |
380mm |
380mm |
480mm |
|||
Max. cross travel |
120mm |
|||||
Taper of spindle |
M. T. 3 |
|||||
Spindle hole |
φ 20mm |
|||||
Step of spindle speed |
7 |
|||||
Range of spindle speed |
160-1360r. p. m |
|||||
Barrel travel |
70mm |
|||||
Taper of center |
M. T. 3 |
|||||
Metric thread range |
0.2-3mm |
|||||
Inch thread range |
8-120T. P. I |
|||||
Longitudinal range of automatic feeding |
0.05-0.175mm/0.002-0.007 |
|||||
DRILLING & MILLING |
Max. drilling capacity |
φ 15mm |
||||
Worktable size (L*W) |
200× 150mm² |
|||||
Max. end mill capacity |
φ 20mm |
|||||
Max. face capacity |
φ 63mm |
|||||
Spindle travel |
85mm |
|||||
Headstock travel of up and down |
80mm |
- |
80mm |
|||
Spindle taper |
M. T. 3 |
|||||
Step of spindle speed |
7 |
|||||
Range of spindle speed |
117-1300r. p. m |
|||||
Swivel angle of headstock |
± 360° |
|||||
MOTOR |
Motor power |
0.55Kw |
||||
SHIPMENT DATA |
Packing size |
1030× 580× 1070mm |
1132× 580× 1070mm |
|||
N. weight/G. weight |
180kg/215kg |
180kg/215kg |
185/226kg |
|||
Loading amount |
44pcs/20container |
|||||
