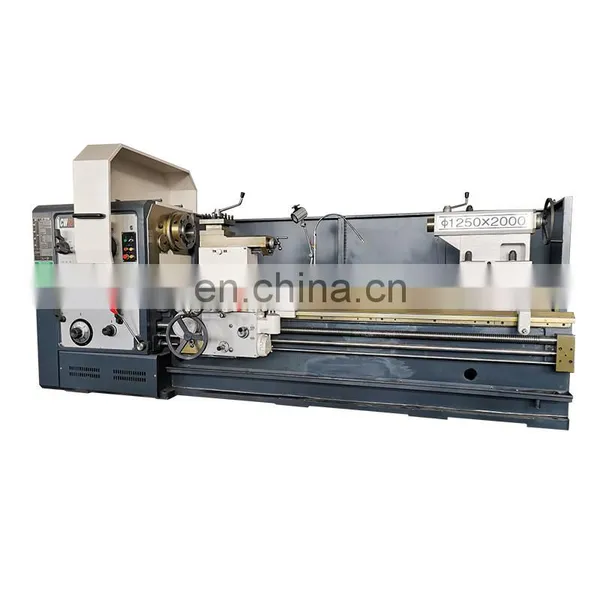

CW61125Q High Quality Heavy Duty Engine Machine photo-2

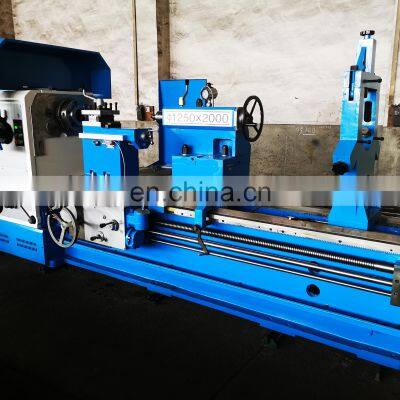

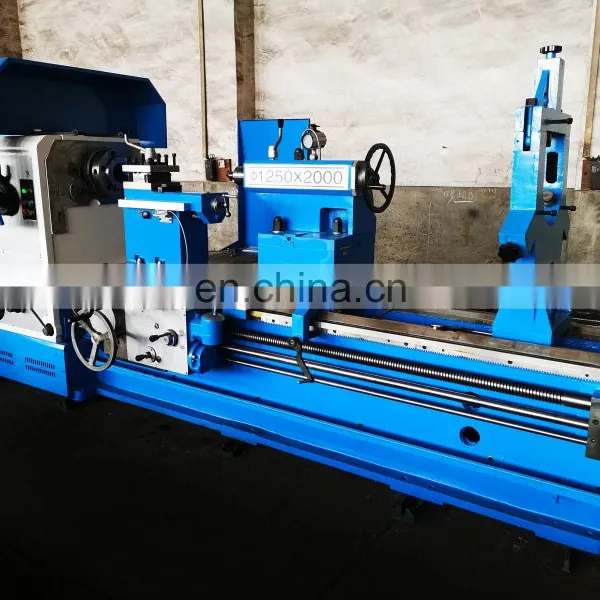

CW61125Q High Quality Heavy Duty Engine Machine photo-3

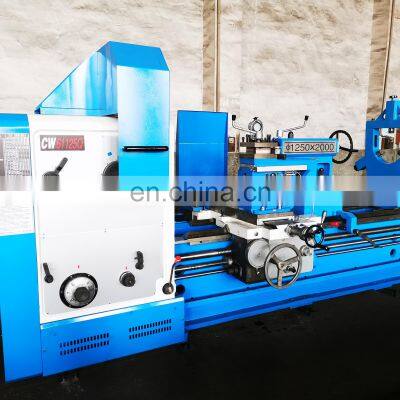

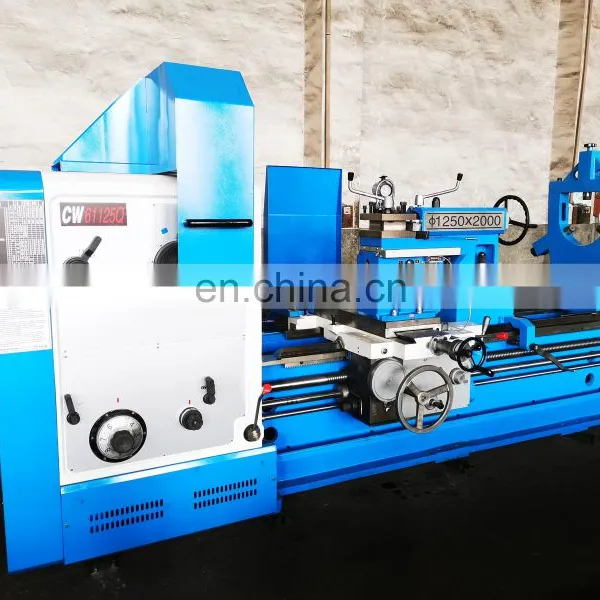

CW61125Q High Quality Heavy Duty Engine Machine photo-4

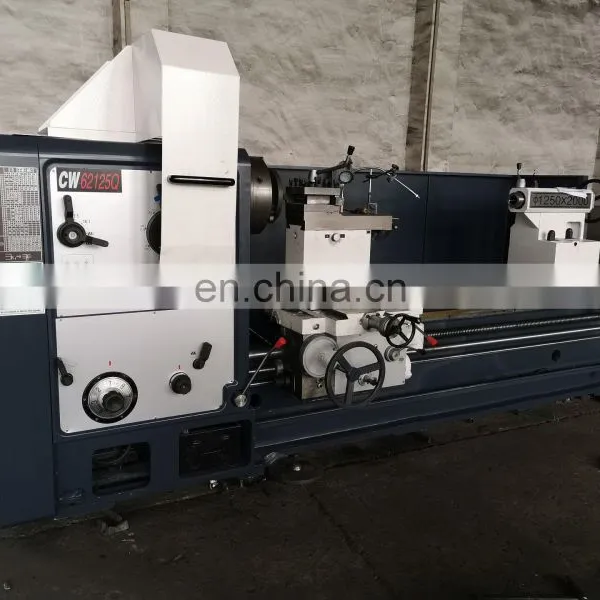

CW61125Q High Quality Heavy Duty Engine Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description

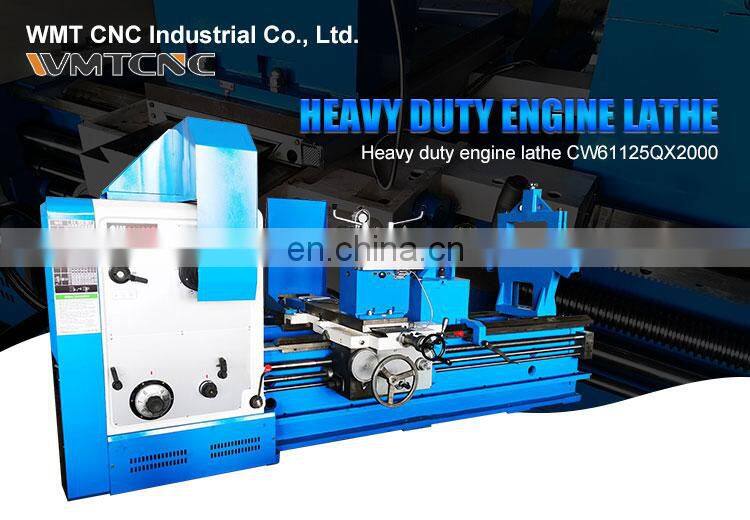

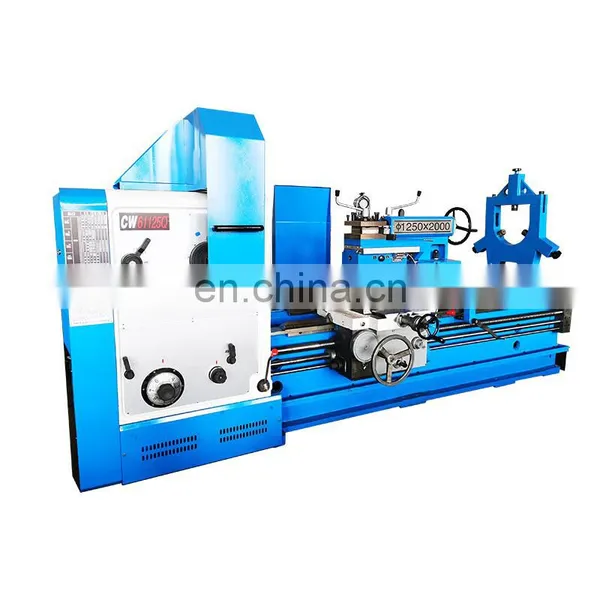

Features This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
Specification
CW61125
CW61160
CW61180
CW61200
CW61220
Swing over bed
1250mm
1600mm
1800mm
2000mm
2200mm
Bed width
755mm
755/1100mm
1100mm
Workpiece length
1500/ 3000/ 5000/ 6000/ 8000/ 15000mm
Swing over toolpost
865mm
1200mm
1400mm
1600mm
1800mm
Max. turning length
1300/ 2800/ 4800/5800/7800/14800mm
Toolpost feed kinds each spindle rotate
56 kinds
Toolpost cross feed range each spindle rotate
0.1-12mm/r
Toolpost longitudinal feed range each spindle rotate
0.05-6mm/r
Upper toolpost
0.025-3mm/r
Metric thread
43 kinds 1-20mm
Inch thread
29 kinds 28-3/8 teeth / inch
Module thread
45kinds 0.5-60mm
Pitch thread
25 kinds 1-56mm
Spindle bore
130mm
Spindle front taper
Metric 140
Spindle speed steps and range forward
21 kinds 2-200r/min
Reverse
12 kinds 2.24-178 r/min
Max.section of tool
45×45mm
Toolpost longitudinal travel
630mm
Upper toolpost travel
300mm
Toolpost rapid movement Longitudinal/Cross/Upper
3470/1870/935mm/min
Center sleeve dia and travel
160×300mm
210×300mm
Tailstock taper
MT6
Metric 80
Tailstock longitudinal movement
±25
Main motor
Y180L-4 22KW
Main transsion V belt specification
2134C 2235C 2540C
2540C 2880C
Carriage rapid motor
JC02-21-2-1.5KW
Coolant pump
JCB-45 0.15KW
Coolant pump flow
45L/min
4-jaw chuck
1000/1250mm
1250/1400mm
Steady rest
50-470mm
50-600mm
Follow rest
50-220mm

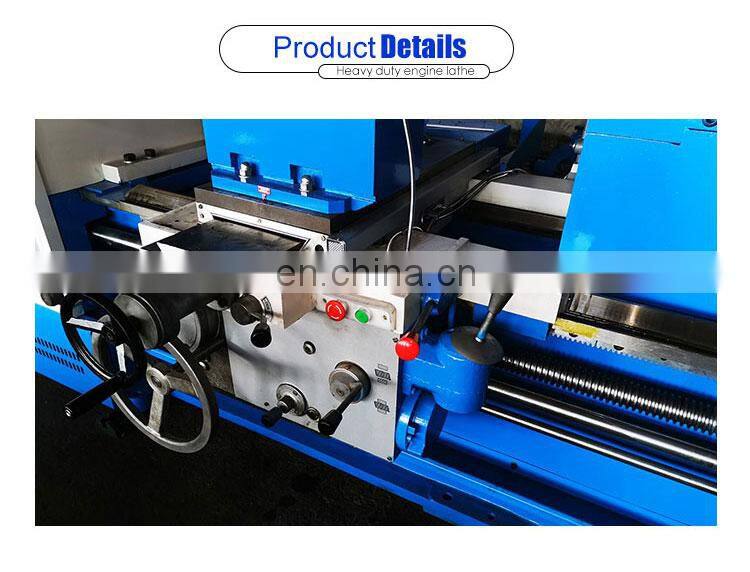

Details Images
