3m China Heavy Duty Horizontal Lathe Machine With CE

3m China Heavy Duty Horizontal Lathe Machine With CE thumbnail-3

3m China Heavy Duty Horizontal Lathe Machine With CE thumbnail-4

3m China Heavy Duty Horizontal Lathe Machine With CE thumbnail-5

3m China Heavy Duty Horizontal Lathe Machine With CE photo-1

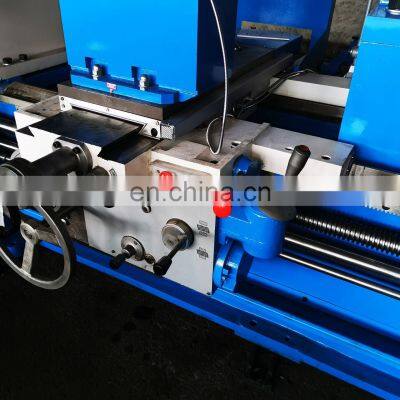

3m China Heavy Duty Horizontal Lathe Machine With CE photo-2

3m China Heavy Duty Horizontal Lathe Machine With CE photo-3

3m China Heavy Duty Horizontal Lathe Machine With CE photo-4

3m China Heavy Duty Horizontal Lathe Machine With CE photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Heavy horizontal lathe machine is suitable for heavy cutting.

This machine is bedway highly precision with hardend gears

Specification	CW61125
Swing over bed	1250mm
Bed width	755mm
Workpiece length	1500/ 3000/ 5000/ 6000/ 8000/ 15000mm
Swing over toolpost	865mm
Max. turning length	1300/ 2800/ 4800/5800/7800/14800mm
Toolpost feed kinds each spindle rotate	56 kinds
Toolpost cross feed range each spindle rotate	0.1-12mm/r
Toolpost longitudinal feed range each spindle rotate	0.05-6mm/r
Upper toolpost	0.025-3mm/r
Metric thread	43 kinds 1-20mm
Inch thread	29 kinds 28-3/8 teeth / inch
Module thread	45kinds 0.5-60mm
Pitch thread	25 kinds 1-56mm
Spindle bore	130mm
Spindle front taper	Metric 140
Spindle speed steps and range forward	21 kinds 2-200r/min
Reverse	12 kinds 2.24-178 r/min
Max.section of tool	45×45mm
Toolpost longitudinal travel	630mm
Upper toolpost travel	300mm
Toolpost rapid movement Longitudinal/Cross/Upper	3470/1870/935mm/min
Center sleeve dia and travel	160×300mm
Tailstock taper	MT6
Tailstock longitudinal movement	±25
Main motor	Y180L-4 22KW
Main transsion V belt specification	2134C 2235C 2540C
Carriage rapid motor	JC02-21-2-1.5KW
Coolant pump	JCB-45 0.15KW
Coolant pump flow	45L/min
4-jaw chuck	1000/1250mm
Steady rest	50-470mm
Follow rest	50-220mm

Detailed Images

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Company Introduction

Focusing on the aim of Service Oriented and Quality formost, many products are originally designed, carefully produced and favourably promoted. It is worth mentioning that the group has successfully sold various machines to more than 50 countries and regions all over the world. The group as well as the machines enjoys wide and well-known popularity in European and American marke.Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
