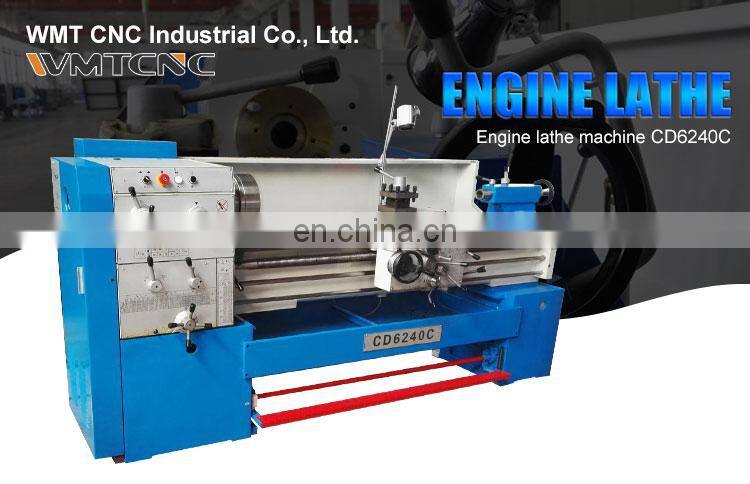

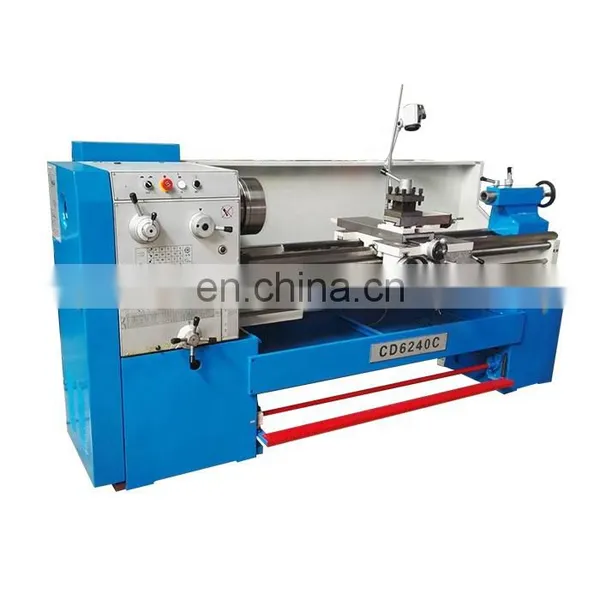

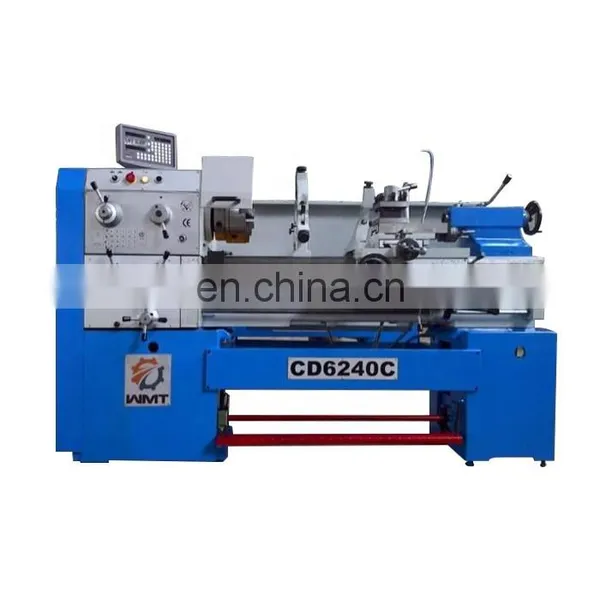

CD6240C 80mm Spindle Bore Manual Engine Lathe Machine for Sell
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CW61125Q Turning Machine 3m China Heavy Duty Horizontal Manual Lathe Machine With CENegotiableMOQ: 1 -
MP800 Mini Metal Lathe for Hobby UsersNegotiableMOQ: 1
-
C6241 Precision Hard Rigid Gap Bed Metal Lathe Machine Price for SaleNegotiableMOQ: 1
-
Stock Sale C6246 High Precision Horizontal Metal Manual Lathe MachineNegotiableMOQ: 1
-
Lathe Machine C6251 Rigid Stand High Precision Heavy Manual Lathe Machine With CE StandardNegotiableMOQ: 1
Product Description
Features:
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main specification
Specification |
CD6240B/C |
Max.swing over bed |
Φ400mm |
Max.swing over cross slide |
Φ225mm |
Max.swing over gap |
Φ550mm |
Effective length of gap |
260mm |
Center Distance |
1000mm/1500mm/2000mm/3000mm |
Bed Width |
330mm |
Spindle hole |
B:Φ65mm,C: Φ80mm |
Spindle nose |
B:ISO-D6,C:ISO-D8 |
Spindle speed(Number) |
B:20-1800rpm(15steps) C:/24-1600rpm(15steps) |
Longitudinal feeds range |
66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev) |
Cross feeds range |
66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev) |
Metric threads range |
66kinds 0.5-28 |
Inch threads range |
66kinds 1-56inch |
Module threads range |
33kinds 0.5-3.5mπ |
Diametric threads range |
33kinds 8-56D.P |
Max.travel of top slide |
130mm |
Max.travel of cross slide |
300mm |
Max.size of tool shank |
20×20mm/25×25mm |
Dia.of tailstock sleeve |
Φ65mm |
Taper of tailstock sleeve |
MT5 |
Max.travel of tailstock |
120mm |
Main drive motor |
5.5kw or 7.5kw |
Rapid traverse motor |
250w |
Coolant pump motor |
125w |
Packing size |
1000mm:2420mm×1150mm×1800mm 1500mm:2920mm×1150mm×1800mm 2000mm:3460mm×1150mm×1800mm 3000mm:4720mm×1150mm×1800mm |
N.W/G.W |
1000mm:1560/2210kgs 1600/2250kgs 1640/2290kgs |
1500mm:1770/2410kgs 1830/2470kgs 1870/2530kgs |
|
2000mm:2010/2780kgs 2070/2820kgs 2130/2860kgs |
Products Show
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
