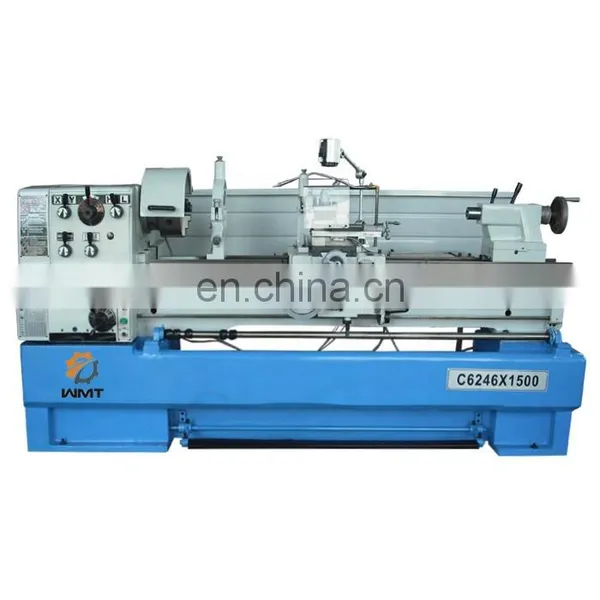

Stock Sale C6246 High Precision Horizontal Metal Manual Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lathe Machine C6251 Rigid Stand High Precision Heavy Manual Lathe Machine With CE StandardNegotiableMOQ: 1 -
Parallel Lathe CS6266C 105mm Spindle Bore Heavy Duty Lathe Machining Manual Lathe Machine for Screw CuttingNegotiableMOQ: 1
-
MPV290 Variable Speed Combo Lathe/Drill/Mill for Metal WorkingNegotiableMOQ: 1
-
C6256 High Precision Engine Lathe Machine With ISO9001NegotiableMOQ: 1
-
CQ6240F 1meter Mini Metal Manual Lathe Machine for SaleNegotiableMOQ: 1
Products Recommend
Product Description
Features:
The spindle system is high in rigidity and accuracy.The design of the main drive is optimized and the gears in the headstock are precision ground.The noise of the machine is low. There is no need for change gears.The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads.An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and reliable pedal braking device providing quick and effective stop while operating.
Item/Model |
C6246×1000 |
C6246×1500 |
C6246×2000 |
Max.swing over bed |
Φ460mm(18") |
Φ460mm(18") |
Φ460mm(18") |
Max.swing over cross slide |
Φ270mm(8 3/4") |
Φ270mm(8 3/4") |
Φ270mm(8 3/4") |
Max. swing over gap |
Φ690mm(27 1/8") |
Φ690mm(27 1/8") |
Φ690mm(27 1/8") |
Length of gap |
165mm(6 1/2") |
165mm(6 1/2") |
165mm(6 1/2") |
Max.length of workpiece |
1000mm(40") |
1500mm(60") |
2000mm(80') |
Width of bed |
300mm(11 13/16") |
300mm(11 13/16") |
300mm(11 13/16") |
Spindle nose |
D1-6 |
D1-6 |
D1-6 |
Spindle bore |
Φ58mm(2-1/4") |
Φ58mm(2-1/4") |
Φ58mm(2-1/4") |
Taper of spindle bore |
M.T.#6 |
M.T.#6 |
M.T.#6 |
Range of spindle speed |
12changes25-2000r/min |
12changes25-2000r/min |
12changes25-2000r/min |
Max.travel of compound rest |
128mm(5") |
128mm(5") |
128mm(5") |
Max.travel of cross slide |
285mm(11 1/4") |
285mm(11 1/4") |
285mm(11 1/4") |
Leadscrew pitch |
metric 6mm |
metric 6mm |
metric 6mm |
Max.section of tool |
25mm×25mm(1×1") |
25mm×25mm(1×1") |
25mm×25mm(1×1") |
Range of longitudinal feeds |
42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) |
42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) |
42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) |
Range of cross feeds |
42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) |
42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) |
42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) |
Metric threads range |
41kinds 0.1-14mm |
41kinds 0.1-14mm |
41kinds 0.1-14mm |
Inch threads range |
60kinds 2-112 T.P.I. |
60kinds 2-112 T.P.I. |
60kinds 2-112 T.P.I. |
Diametrical pitches range |
50kinds 4-112D.P. |
50kinds 4-112D.P. |
50kinds 4-112D.P. |
Module piches rang |
34kinds 0.1-7 M.P. |
34kinds 0.1-7 M.P. |
34kinds 0.1-7 M.P. |
Dia. of tailstock sleeve |
60mm(2 5/16") |
60mm(2 5/16") |
60mm(2 5/16") |
Travel of tailstock sleeve |
120mm(4 3/4") |
120mm(4 3/4") |
120mm(4 3/4") |
Morse taper of tailstock sleeve |
M.T.#4 |
M.T.#4 |
M.T.#4 |
Power of main motor |
5.5kw(7.5HP)3PH |
5.5kw(7.5HP)3PH |
5.5kw(7.5HP)3PH |
Power of coolant pump |
0.1kw(8/1HP)3PH |
0.1kw(8/1HP)3PH |
0.1kw(8/1HP)3PH |
Ovelall Dimension(LxWxH)cm |
220x108x137 |
275x108x137 |
325x108x137 |
Net weight/Gross weight(kg) |
1645/1910 |
1810/2115 |
1965/2295 |

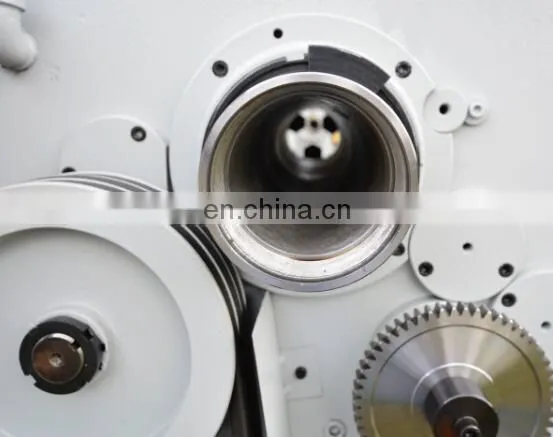

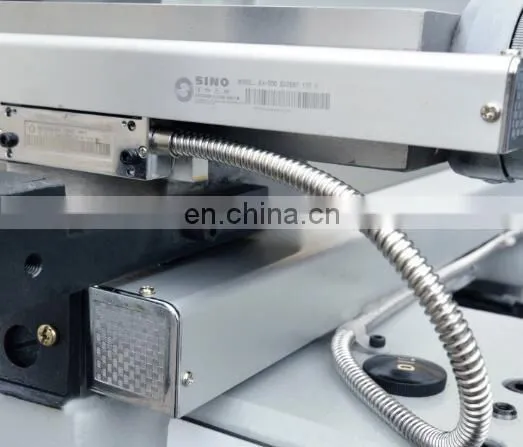

Detailed Images
Package&Shipping
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
