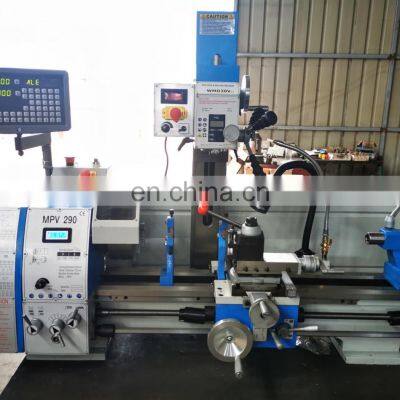

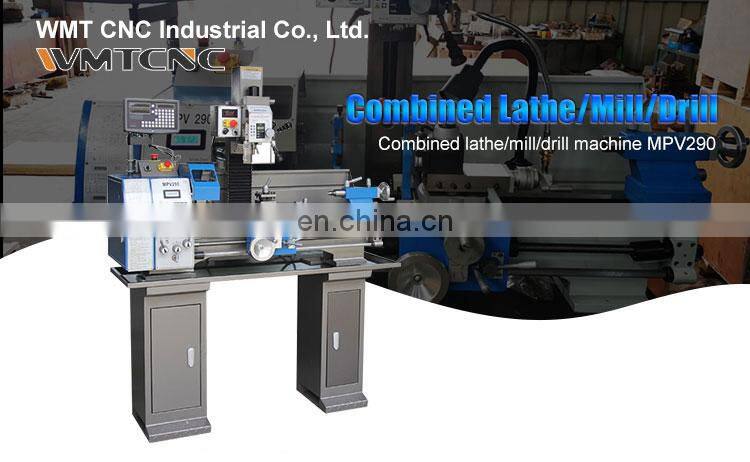

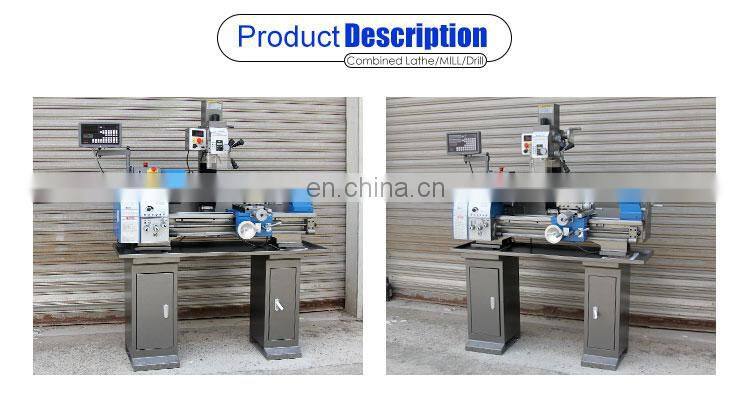

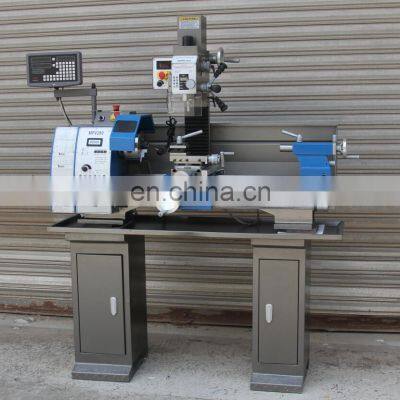

MPV290 Variable Speed Combo Lathe/Drill/Mill for Metal Working

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Specification	MPV250	MPV280	MPV290
Distance between centers	500/750mm	700mm	700mm
Swing over bed	250mm	280mm	290mm
Swing over cross slide	150mm	170mm	165mm
Spindle taper	MT4	MT4	MT5
Width of bed	135mm	180mm	180mm
Spindle bore	26mm	26mm	38mm
Range of spindle speeds（variable speed）	50-2500rpm	50-2500rpm	80-2000rpm
Range of cross feed	0.07 -0.20mm /r	0.07-0.40mm/r	0.01 -0.10mm /r
Range of longitudinal feed	0.085-0.832mm/rev	0.085~0.832mm/rev	0.085-0.832mm/rev
Range of inch threads	8-56T.P.I	8-56T.P.I	8-56T.P.I
Range of metric threads	0.2 -3.5mm	0.2-3.5mm	0.2 -3.5mm
Top slide travel	70mm	65mm	70mm
Cross slide travel	115mm	180mm	160mm

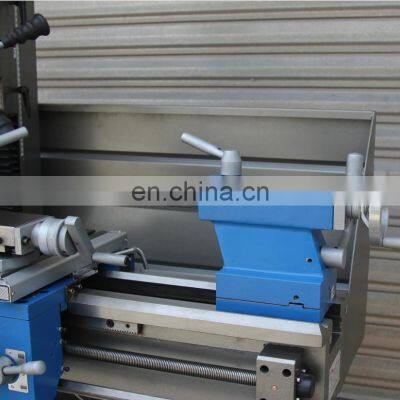

Tailstock quill travel	60mm	75mm	70mm
Taper of tailstock quill	MT2	MT2	MT3
Main motor	0.75kw	1.1kw	1.5kw

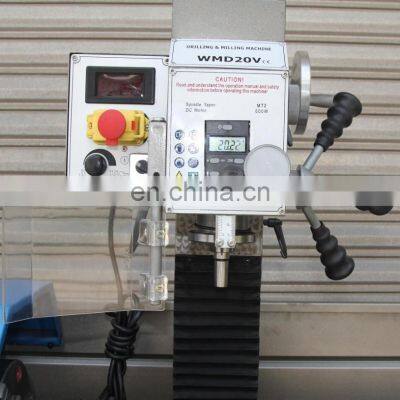

Drilling and milling head	BF16	BF20	BF20
Spindle taper	MT2	MT2	MT3
Spindle travel	52mm	52mm	52mm
Range of spindle speeds（variable speed）	50-2250rpm	50-3000rpm	50-2250rpm
Max.distance from spindle nose to table	280mm	380mm	325mm
Max.distance from spindle to columm	185mm	185mm	185mm
Motor power	500w	850w	600w

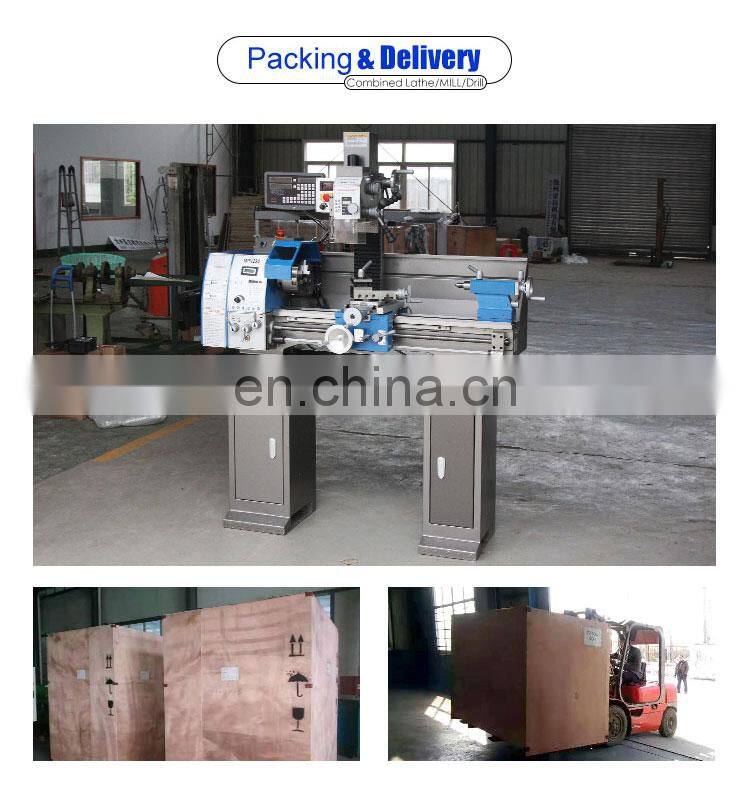

Packing size（for machine）	1200/1400 × 580 × 860mm	137x850x1050mm	1450 × 720 × 1050mm
Packing size（for stand）	760x530x415mm	800x580x415mm	800x580x415mm
N.W	195/220kgs	248kgs	325kgs
