Products Description
Main features:
1.Precision ground and supersonic frequency hardened bed ways.
2.The spindle is supported with precision roller bearing.
3.Strong power motor suited for heavy duty cutting.
4.Headstock gears are made of high quality steel ground and hardened.
5.Easy operating gear box has various feed and cutting function.
6.Removable gap is provided for larger diameter work.
2.The spindle is supported with precision roller bearing.
3.Strong power motor suited for heavy duty cutting.
4.Headstock gears are made of high quality steel ground and hardened.
5.Easy operating gear box has various feed and cutting function.
6.Removable gap is provided for larger diameter work.
Specification | CQ6240 |
Max. swing over bed | 400mm |
Max. swing over cross slide | 250mm |
Max. swing over gap | 520mm |
Distance between centers | 1080mm |
Width of bed | 218mm |
Spindle bore | 52mm |
Spindle taper | MT6 |
Spindle nose | D5 |
Range of spindle speed | 65-1800rpm |
Range of longtudinal feeds | 0.0527-1.2912mm/rev |
Range of cross feeds | 0.011-0.276mm/rev |
Range of metric threads | 0.4-7mm |
Range of inch threads | 4-60TPI |
Taper of tailstock | MT4 |
Motor power | 2.2KW (3HP) |
NW/GW | 630/750kg |

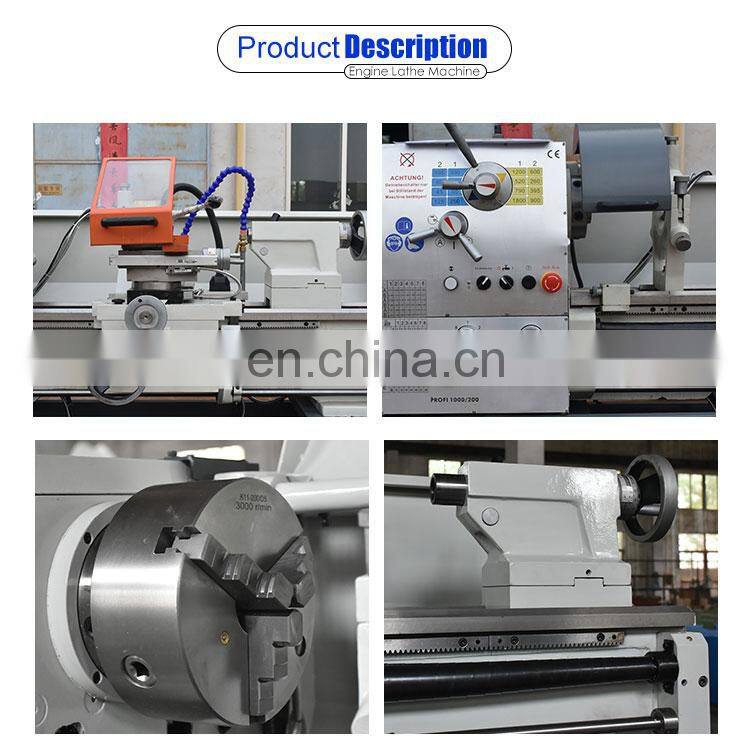

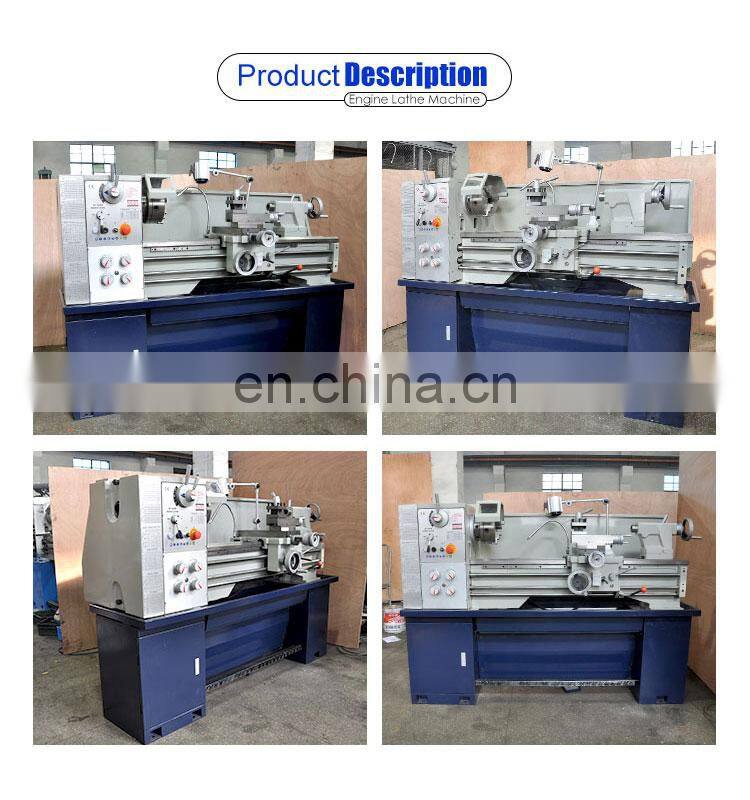

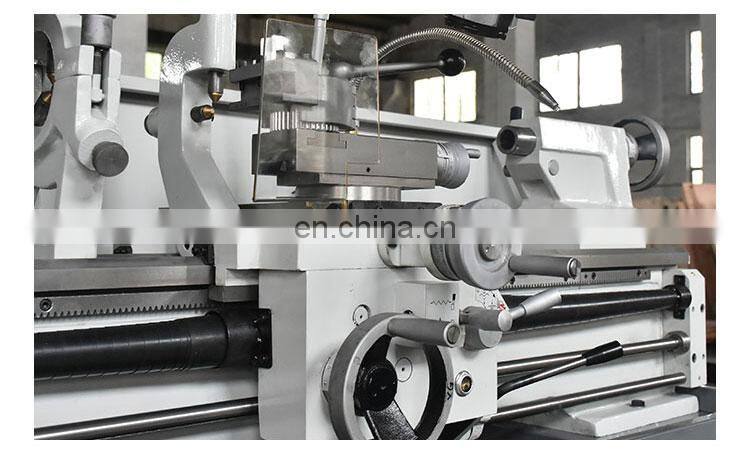

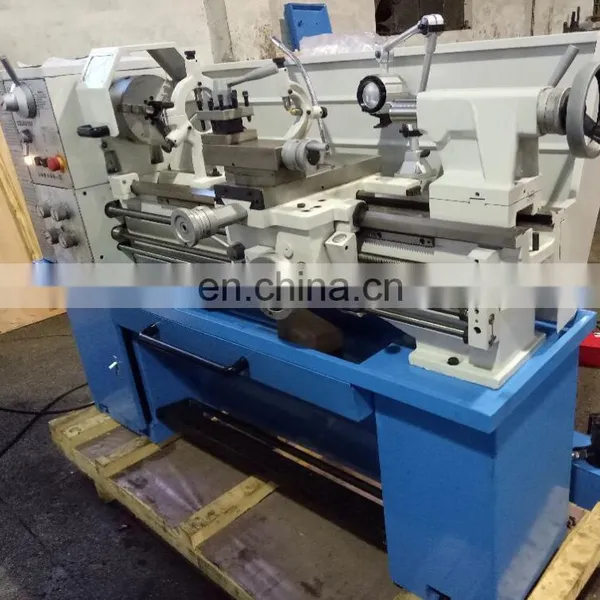

Detailed Images
