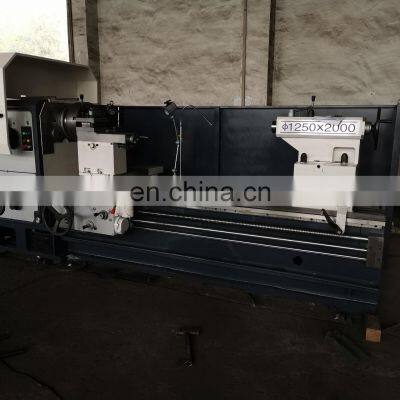

CW61125Q turning machine 3m china heavy duty horizontal manual lathe machine with CE
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
MP800 mini metal lathe for hobby users
-
C6241 Precision hard rigid gap bed metal lathe machine price for sale
-
stock sale C6246 high precision horizontal metal manual lathe machine
-
lathe machine C6251 rigid stand high precision heavy manual lathe machine with CE standard
-
parallel lathe CS6266C 105mm spindle bore heavy duty lathe machining manual lathe machine for screw cutting
-
MPV290 Variable Speed Combo Lathe/Drill/Mill for Metal Working
Product Description
Product Description
Heavy horizontal lathe machine is suitable for heavy cutting.
This machine is bedway highly precision with hardend gears
Specification | CW61125 |
Swing over bed | 1250mm |
Bed width | 755mm |
Workpiece length | 1500/ 3000/ 5000/ 6000/ 8000/ 15000mm |
Swing over toolpost | 865mm |
Max. turning length | 1300/ 2800/ 4800/5800/7800/14800mm |
Toolpost feed kinds each spindle rotate | 56 kinds |
Toolpost cross feed range each spindle rotate | 0.1-12mm/r |
Toolpost longitudinal feed range each spindle rotate | 0.05-6mm/r |
Upper toolpost | 0.025-3mm/r |
Metric thread | 43 kinds 1-20mm |
Inch thread | 29 kinds 28-3/8 teeth / inch |
Module thread | 45kinds 0.5-60mm |
Pitch thread | 25 kinds 1-56mm |
Spindle bore | 130mm |
Spindle front taper | Metric 140 |
Spindle speed steps and range forward | 21 kinds 2-200r/min |
Reverse | 12 kinds 2.24-178 r/min |
Max.section of tool | 45×45mm |
Toolpost longitudinal travel | 630mm |
Upper toolpost travel | 300mm |
Toolpost rapid movement Longitudinal/Cross/Upper | 3470/1870/935mm/min |
Center sleeve dia and travel | 160×300mm |
Tailstock taper | MT6 |
Tailstock longitudinal movement | ±25 |
Main motor | Y180L-4 22KW |
Main transsion V belt specification | 2134C 2235C 2540C |
Carriage rapid motor | JC02-21-2-1.5KW |
Coolant pump | JCB-45 0.15KW |
Coolant pump flow | 45L/min |
4-jaw chuck | 1000/1250mm |
Steady rest | 50-470mm |
Follow rest | 50-220mm |
