C6241 Precision hard rigid gap bed metal lathe machine price for sale

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Precision hard rigid gap bed conventional metal lathe machine with CE

Features: The spindle system is high in rigidity and accuracy. The design of the main drive is optimized and the gears in the headstock are precision ground. The noise of the machine is low. There is no need for change gears.The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads. An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.

Main Technical Data

Specification	C6241	C6246
Swing over bed	Φ410mm	Φ460mm
Swing over cross slide	Φ220mm	Φ270mm
Swing in gap	Φ640mm	Φ690mm
Distance between centers	1000mm/1500mm/2000mm/3000mm	1000mm/1500mm/2000mm/3000mm
Valid length of gap	165mm	165mm
Width of bed	300mm	300mm
Spindle nose	D1-6	D1-6
Spindle bore	Φ58mm	Φ58mm
Taper of spindle bore	MT6	MT6
Range of spindle speed	12 changes, 25-2000r/min	12 changes, 25-2000r/min
Max.travel of top slide	128mm	128mm
Max.travel of cross slide	285mm	285mm
Max.section of tool	25×25mm	25×25mm
Pitch thread of leadscrew	6mm or 4T.P.I.	6mm or 4T.P.I.
Longitudinal feeds range	42 kinds,0.031-1.7mm/rev	42 kinds,0.031-1.7mm/rev
Cross feeds range	42 kinds, 0.014-0.784mm/rev	42 kinds, 0.014-0.784mm/rev
Metric threads range	41 kinds, 0.1-14mm	41 kinds, 0.1-14mm
Inch threads range	60 kinds, 2-112T.P.I.	60 kinds, 2-112T.P.I.
Diametrical pitches range	50 kinds, 4-112DP	50 kinds, 4-112DP
Module pitches range	34 kinds, 0.1-7MP	34 kinds, 0.1-7MP
Tailstock quill diameter	Φ60mm	Φ60mm
Tailstock quill travel	128mm	128mm
Tailstock quill taper	MT4	MT4
Power of main motor	5.5kw(7.5HP) 3PH	5.5kw(7.5HP) 3PH
Power of coolant pump	0.1kw(1/8HP) 3PH	0.1kw(1/8HP) 3PH
Overall dimension	2200/2750/3250×1080×1370mm	2200/2750/3250×1080×1370mm
Packing size	2250/2800/3300×1120×1620mm	2250/2800/3300×1120×1620mm
Net weight	1670/1920/2070kgs	1670/1920/2070kgs
Gross weight	1980/2265/2450kgs	1980/2265/2450kgs

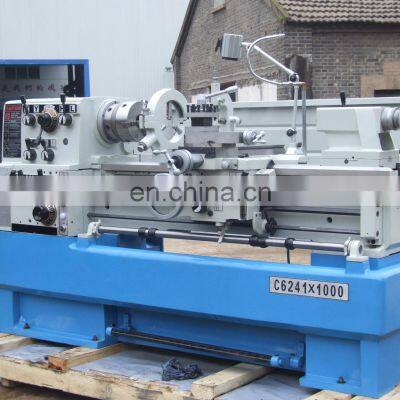

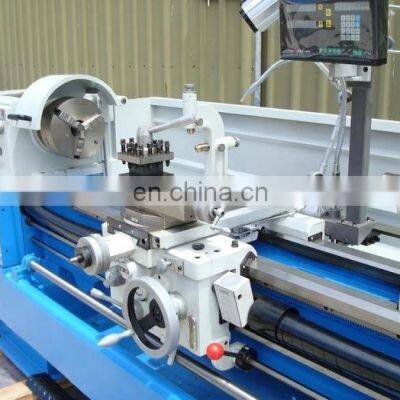

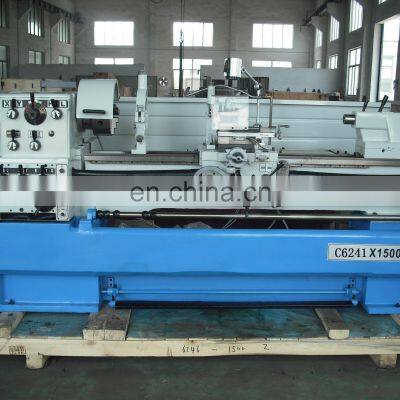

Details about the real pictures:
