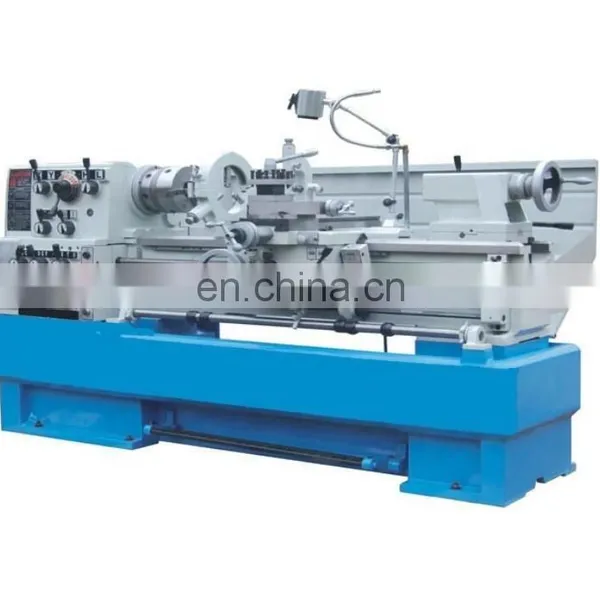

High Precision parallel lathe engine bench manual lathe machine C6246 with CE standard

Name: High Precision parallel lathe engine bench manual lathe machine C6246 with CE standard
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Engine Lathe Mahcine Main Features:

1. The spindle system is high in rigidity and accuracy. 2. The design of the main drive is optimized and the gears in the headstock are precision ground. 3. The noise of the machine is low. 4. There is no need for change gears. 5. The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads. 6. An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.

Main specification

Specifications	C6241	C6246	C6251	C6256
Swing over bed	Φ410mm(16)	Φ460mm(18)	Φ510mm(20)	Φ560mm(22)
Swing over cross slide	Φ220mm(8-13/16)	Φ270mm(10-3/4)	Φ300mm(11-7/8)	Φ350mm(13-3/4)
Swing in gap	Φ640mm(25-1/8)	Φ690mm(27-1/8)	Φ738mm(29)	Φ788mm(31)
Distance between centers	1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120")
Valid length of gap	165mm(6-1/2")			200mm(8")
Width of bed	300mm(11-13/16")			350mm(13-3/4")
Spindle nose	D1-6			D1-8
Spindle bore	Φ58mm(2-1/4")			Φ80mm(3-1/8")
Taper of spindle bore	MT6			MT7
Range of spindle speed	12 changes, 25-2000r/min			12changes25-1600r/min
Max.travel of top slide	128mm(5")			130mm(5-1/8")
Max.travel of cross slide	285mm(11-1/4")			326mm(12-15/16")
Max.section of tool	25×25mm(1×1)
Pitch thread of leadscrew	6mm or 4T.P.I.
Longitudinal feeds range	(42 kinds)0.031-1.7mm/rev(0.0011-0.0633/rev)			(35kinds)0.059-1.646mm/rev(0.0022-0.0612/rev)
Cross feeds range	(42 kinds) 0.014-0.784mm/rev(0.00033"-0.01837"/rev)			(35kinds)0.020-0.573mm(0.00048-0.01354)
Metric threads range	41 kinds, 0.1-14mm			47kinds,0.2-14mm
Inch threads range	60 kinds, 2-112T.P.I.			60kinds,2-112T.P.I
Diametrical pitches range	50 kinds, 4-112DP			50kinds,4-112D.P.
Module pitches range	34 kinds, 0.1-7MP			39kinds0.1-7M.P.
Dia. of tailstock sleeve	Φ60mm(2-5/16) 128mm(5)			Φ75mm(3")
Travel of tailstock sleeve	128mm(5")			180mm(7")
Taper of tailstock sleeve	MT4			MT5
Power of main motor	5.5kw(7.5HP) 3PH			7.5kw(10HP)3PH
Power of coolant pump	0.1kW(1/8HP) 3PH
Overall dimension(L×W×H)	2200/2750/320×1080×1370mm			2900/3400×1120×1430mm
Packing size(L×W×H)	2250/2800/3300×1120×1620mm			2960/3460×1130×1820mm
Net weight(kg)	1670/1920/2070	1720/1970/2120	2335/2685	2370/2720
Gross weight(kg)	1980/2265/2450	2045/2330/2515	2700/3070	2740/3110

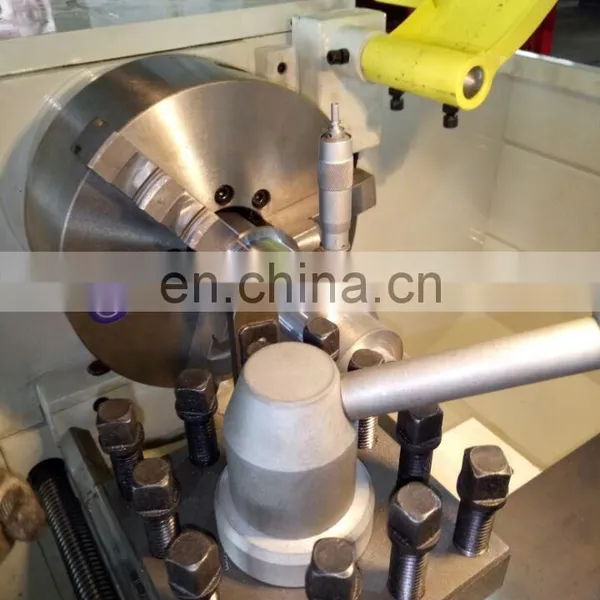

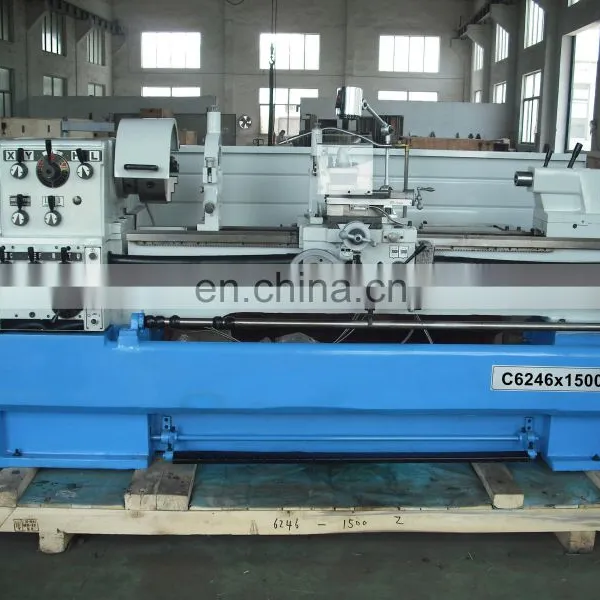

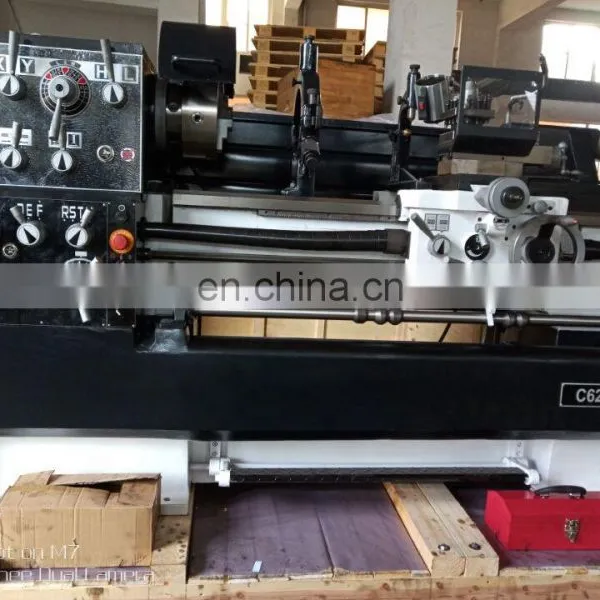

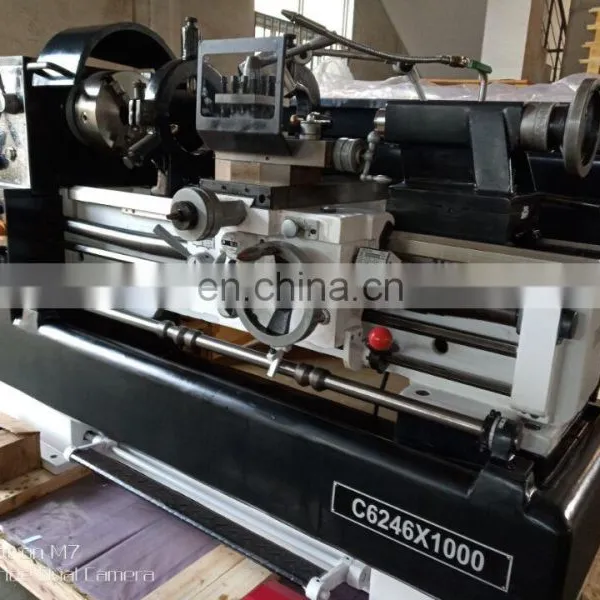

Detailed Images

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
