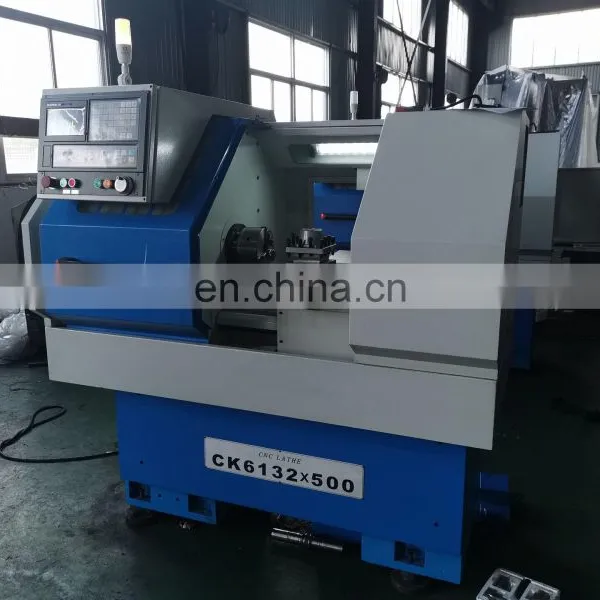

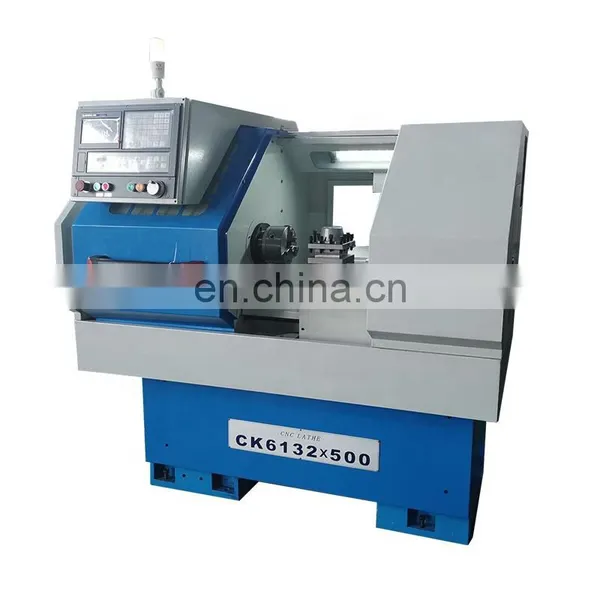

Siemens 808DA Cnc Flat Bed Lathe CK6132x500 With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Siemens 808DA Factory Direct Sale Cnc Flat Bed Lathe CK6132x500 for Metal WorkingNegotiableMOQ: 1 -
Heavy Duty TX600 Cnc Turning Center With Cnc Control System From China FactoryNegotiableMOQ: 1
-
Economical CK1107 Swiss Type Cnc Lathe With High PrecisionNegotiableMOQ: 1
-
Siemens Fanuc and GSK Cnc Control System CK6132x500 Flat Bed Cnc Lathe From China Factory With CENegotiableMOQ: 1
-
CK6140 Automatic Flat Bed Cnc Lathe Machine With Siemens 808DA From China Factory With CENegotiableMOQ: 1
Product Description
CNC lathe CK6132 Features:
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification |
CK6132x500/750/1000mm |
Max.swing over bed |
Φ320 mm |
Max.swing over carriage |
Φ150 mm |
Distance between centers |
500/750/1000mm |
Spindle bore |
40mm |
Spindle nose |
A2-5 |
Rail width |
212mm |
Taper of spindle bore |
MT5 |
Chuck |
6'' |
Range of speed (Variable) |
150-2500 rpm |
X axis travel |
180mm |
Z axis travel |
500/750/1000mm |
X/Z rapid speed |
4/7m/min |
X/Z screw |
2004/4006 |
Station of toolpost |
4 or 6 |
Max. section of tool |
20*20mm or 16*16mm |
Stroke of tailstock sleeve |
100mm |
Dia./hole of tailstock sleeve |
32mm/MT3 |
Main motor power |
2.2kw or 3.7kw |
Coolant pump power |
120w |
Overall dimenstion (L*W*H) |
1600/1920/2100x1120x1750mm |
Packing size (L*W*H) |
1815/2120/2300x1300x2000mm |
NW/GW |
800/900/1050kg;950/1050/1200kgs |
Details Images
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
