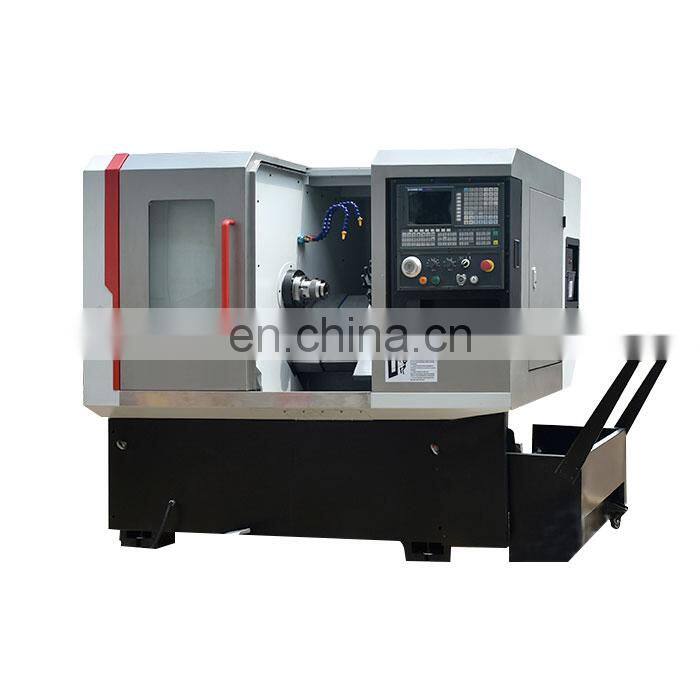

CK36L Mini Slant Bed Cnc Lathe Machine for Metal Threading
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Dual Spindle 35 Degree Slant Bed Cnc Lathe Turning Center TX500ESY With Power Turret
-
Parallel Lathe SWL450/450 Lathe Machining Turning Center CNC Slant Bed Lathe Machine With X/Z Axis Linear Guideway
-
TX500SY 3-Axis Slant Bed Cnc Turning Center Lathe Machine With High Quality
-
Dual Spindle SWL450S/1000 35-degree CNC Turning Center Slant Bed Lathe Machine
-
CK1107 Economical Swiss Type CNC Lathe With Competitive Price
-
China Hot Sell High Quality B13 Swiss Type 5 Axes Cnc Lathe With Dual Spindle
Product Description
Product Description
CNC Milling Machine Main Features:

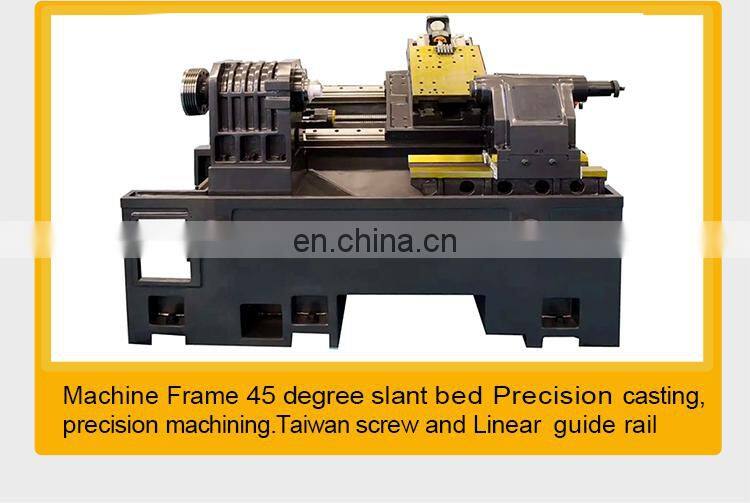

1. Mini lathe cnc machine for slant bed 45 degree.
2. X/Z axis for Taiwan precision ballscrew and Taiwan linear guideway.

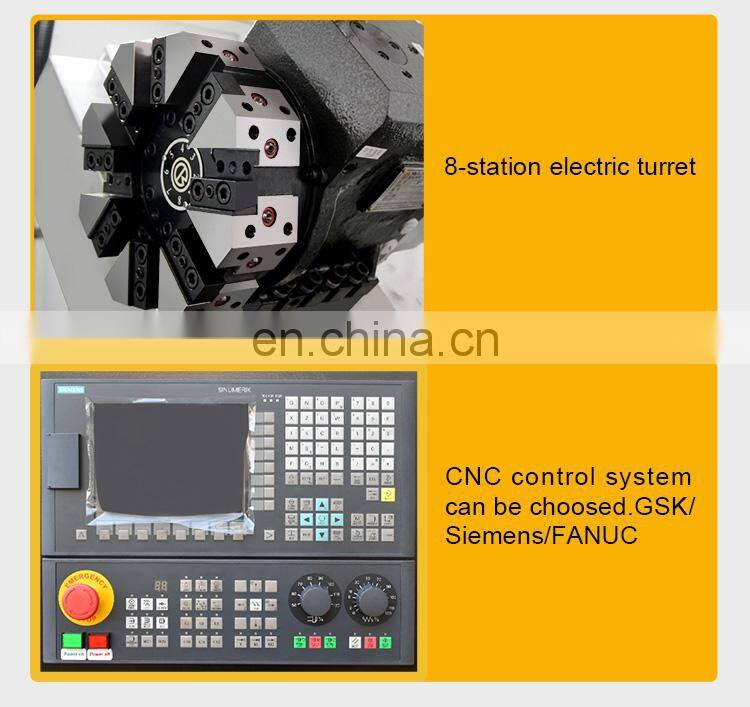

3. GSK, Siemens and Fanuc CNC controller for choices.
Model | CK30L | CK32L | CK36L |
Max. swing over bed | φ300mm | φ320mm | φ360mm |
Max. swing over carriage | φ140mm | φ180mm | φ210mm |
Max. cutting legth | 350mm | 450mm | 500/750mm |
Rail width | 260mm | 284mm | 284mm |
Spindle nose | A2-4 | A2-5 | A2-5,A2-6 |
Spindle bore | φ46mm | φ56mm | φ56mm,(62mm) |
Taper of spindle bore | 1:20 | 1:20 | 1:20 |
Chuck | 5" | 6" | 6" , ( 8") |
Range of spindle speed | 150-6000rpm | 150-4200rpm | 150-4200rpm |
X axis travel | 150mm | 190mm | 210mm |
Z axis travel | 350mm | 450/650mm | 500/750mm |
X/Z rapid speed | 20/20m/min | 20/20m/min | 20/20m/min |
Hydraulic turret | 8 | 8 | 8 |
Max. section of tool | 16*16mm | 20*20mm | 20*20mm |
Stroke of tailstock sleeve | 60mm | 80mm | 80mm |
Diameter/ Hole of tailstock sleeve | φ40mm/MT3 | φ60mm/MT4 | φ60mm/MT4 |
Main motor power | 4KW | 4KW/5.5KW | 5.5KW/7.5KW |
Coolant pump power | 370W | 370W | 370W |
Overall dimensions L*W*H | 1800*1250*1550mm | 2300*1550*1750mm | 2630/2910*1550*1750mm |
Packing size L*W*H | 2000*1400*1750mm | 2500*1750*2000mm | 2830/3130*1750*2150mm |
N.W/G.W | 1750KG/2000KG | 2200KG/2600KG | 2700KG/3000KG |

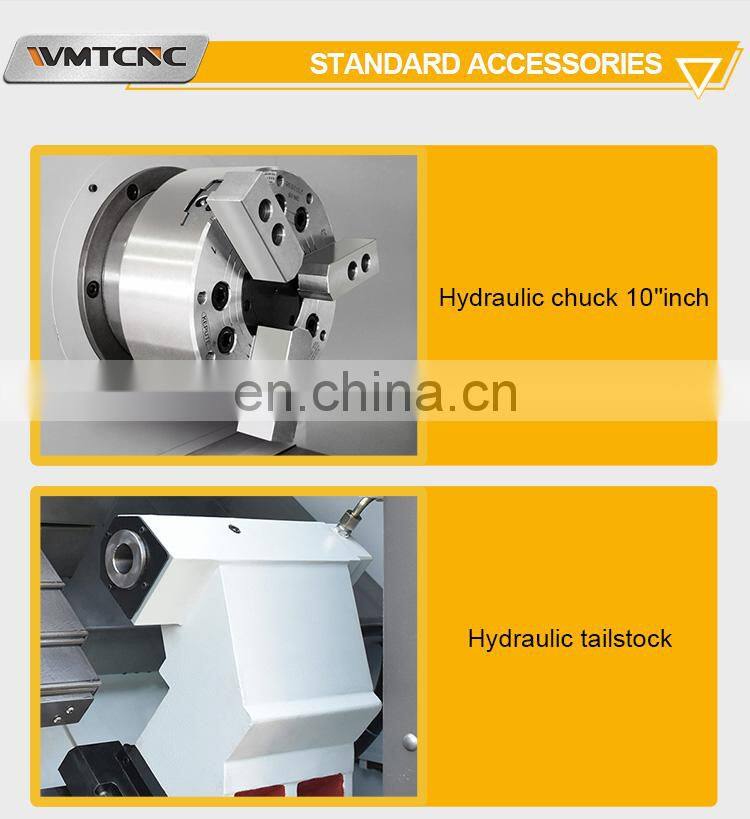

Standard Accessories:
· Spindle unit
· Pneumatic or hytraulic chuck
· AC servo motor
· Hydraulic turret
· Auto lubration coolant system

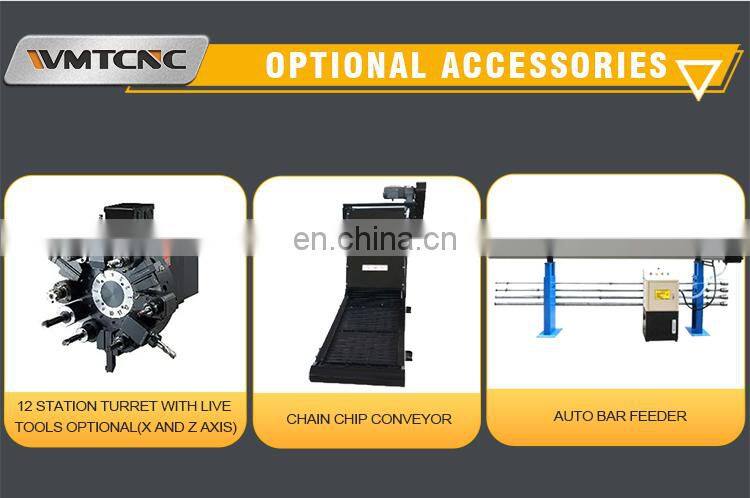

Optional Accessories:
· With milling or drilling power head
· Automatic chip removal

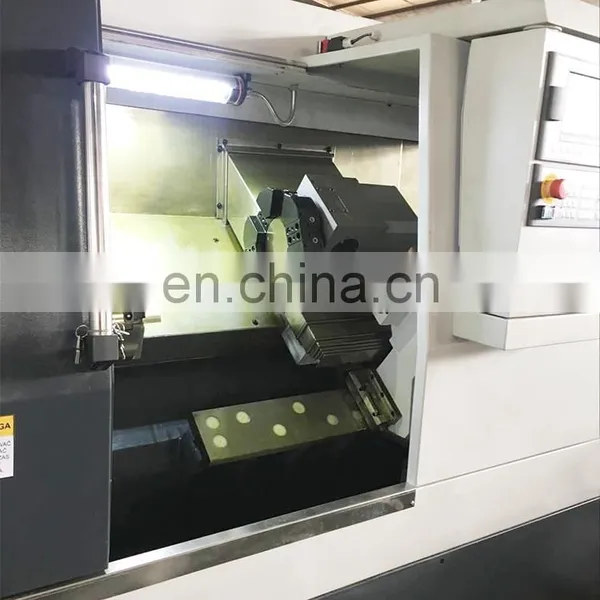

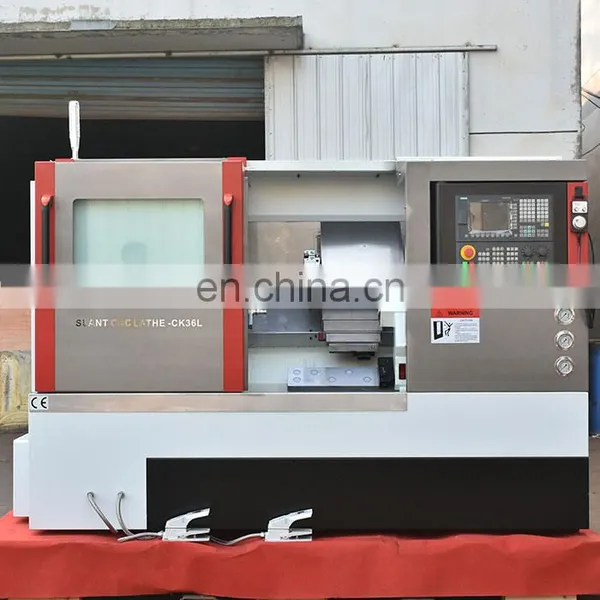

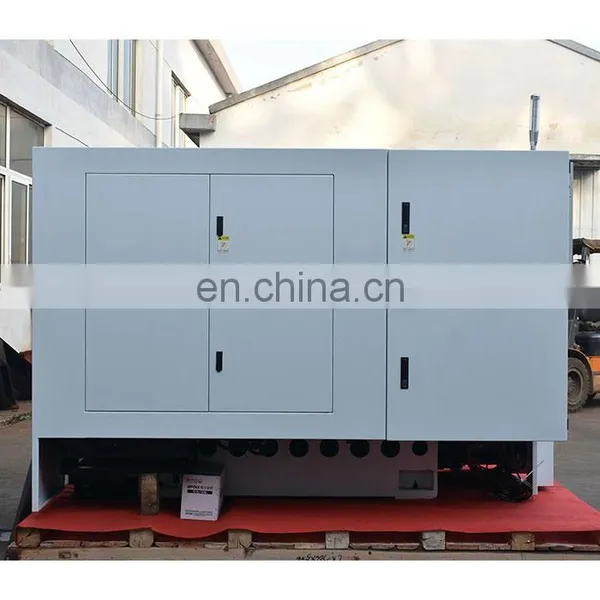

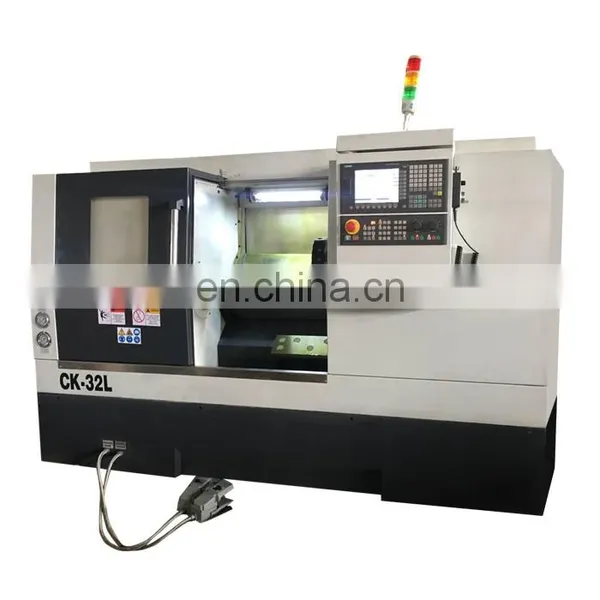

Detailed Images
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
