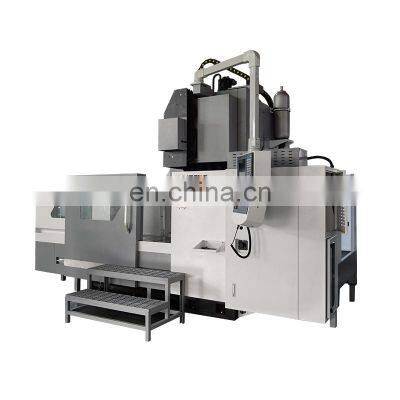

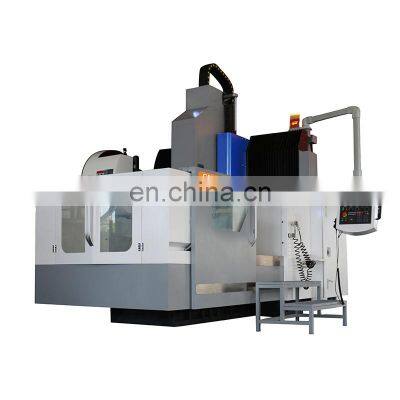

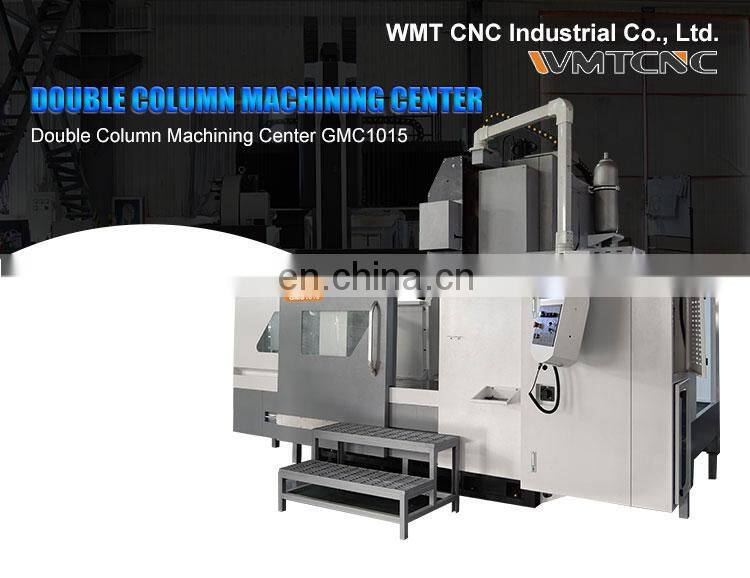

China High Precision Double Column CNC Milling Machine GMC1015 Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty CNC Gantry Machining Center SP2560 With Full ProtectionNegotiableMOQ: 1 -
SP1840 High Performance Double Column Machining Center for Metal Working in ChinaNegotiableMOQ: 1
-
SP1530 Full Protection Direct Drive CNC Machining Center for SaleNegotiableMOQ: 1
-
SP1325 Direct Drive Linear Guideway Vertical Machining Center From ChinaNegotiableMOQ: 1
-
SP1016 CNC Gantry Machining Center Machine 5 AxisNegotiableMOQ: 1
Features:
1.Optimized design of column bearing surface and gantry structure, excellent support rigidity, reliable structure
2.BT50 big spindle with powerful spindle servo motor, suitable for heavy cuts in low speeds and precision cutts in high speeds
3.All three axes adopt heavy-duty roller linear guides, which have both low friction and rigidity of the feed axis.
Note: GM2011 Z axis four guide rails are U-shaped layout
4.X, Y, and Z axes are all driven by imported precision ball screws, with advanced screw pre-stretching assembly technology, the screw has small thermal deformation and high transmission and positioning accuracy.
5.Cylinder balance weight on Z axis makes excellent deceleration and acceleration
Specifications | GMC1015 |
Worktable size | 1600×800mm |
T-slot | 22×5×140mm |
Max. loading of worktable | 1800kg |
Double column width | 950mm |
Spindle nose to table distance | 180-800mm |
Rail type | Linear Guideway |
Spindle taper | BT50-155 |
Spindle speed | 8000rpm |
Main motor power | 18.5/15kw |
X axis travel | 1500mm |
Y axis travel | 1000mm |
Z axis travel | 620mm |
X/Y/Z rapid traverse | 20/20/15m/min |
Tool magazine capacity | 24pcs |
Max.weight of tool | 15kg |
Max.feed speed | 10000mm/min |
Power | 40kVA |
Overall dimension(LxWxH) | 4800×4600×4400mm |
Weight | 15000kgs |
