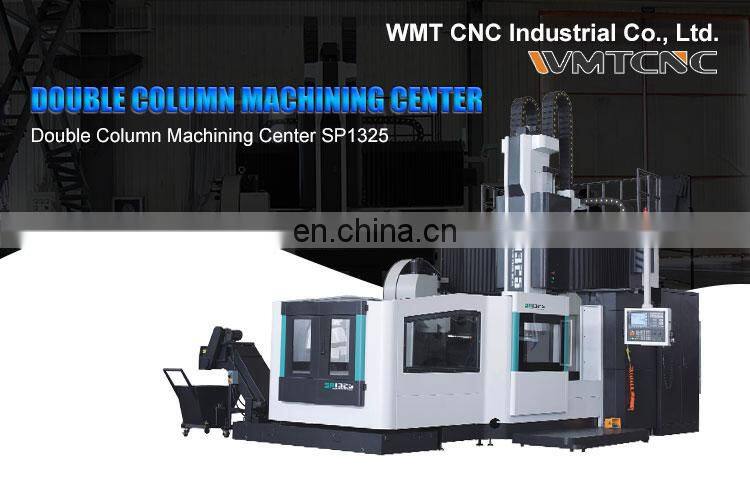

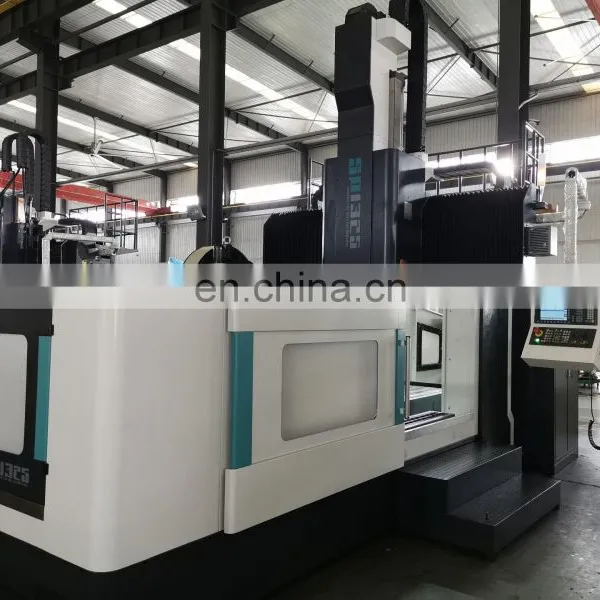

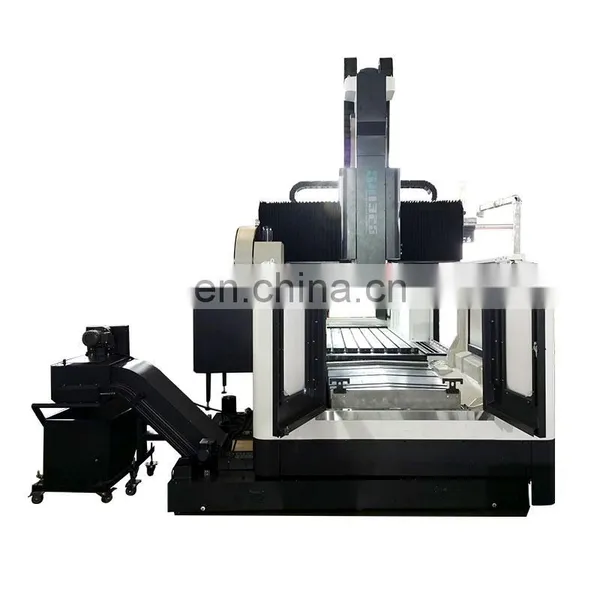

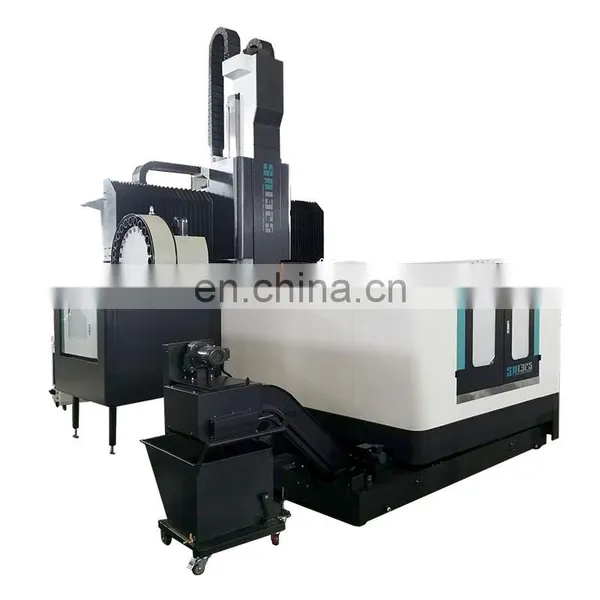

5 axes cnc SP1325 Direct drive roller guideway gantry cnc mill machine

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Specification	SP1325
X-axis travel	2600mm
Y-axis travel	1400 +160mm(tool change)
Z-axis travel	800mm
Distance from spindle nose to worktable surface	150-950mm
Worktable size(WxL)	2500×1100mm
T-slots size (NxWxD)	7-22-160mm
Max. load bearing of worktable	4000kgs
X/Y/Z guideway size	Roller 2-45/2-45mm,Z-axis hard guideway
Rapid feed speed of X axis	10000 mm/min
Rapid feed speed of Y axis	10000 mm/min
Rapid feed speed of Z axis	10000 mm/min
Main motor power	15/18.5KW
Spindle model	BT50/Φ150
Motor torque	143N.M
Spindle taper	BT50
Blind rivets aize	P50T-2-MAS403
Driven type	Direct drive/Gear box 1:4
X/Y/Z linear guideway size	X/Y-axis 2-45# roller linear guideways
X/Y/Z ball screw size	X-axis 6316,Y-axis 5016,Z-axis 5016
Tool magazine capacity	24pcs, 32pcs
Tool arbor	BT50
Max. tool dimension	Φ110/Φ220mm
Max. length of tool	350mm
Max.tool weight	20kgs
Positioning accuracy	0.03mm
Re-positioning accuracy	0.018mm
Machine weight	21000kgs
Overall size (LxWxH)	7800x5500x5000mm

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?

A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?

A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?

A4:One set only.

Q5:How about your quality?

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?

A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?

A7:Yes, we can design and manufacture according to your specific requirements.
