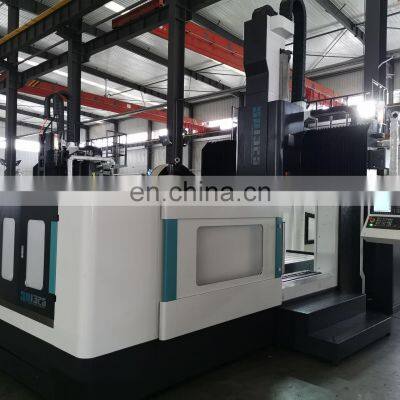

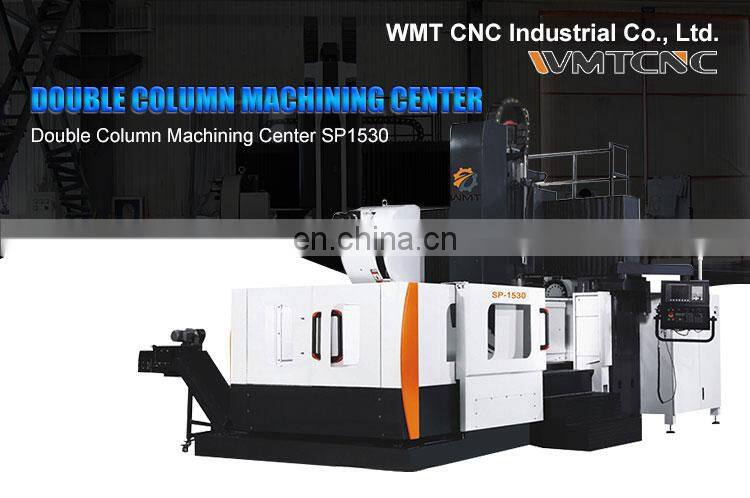

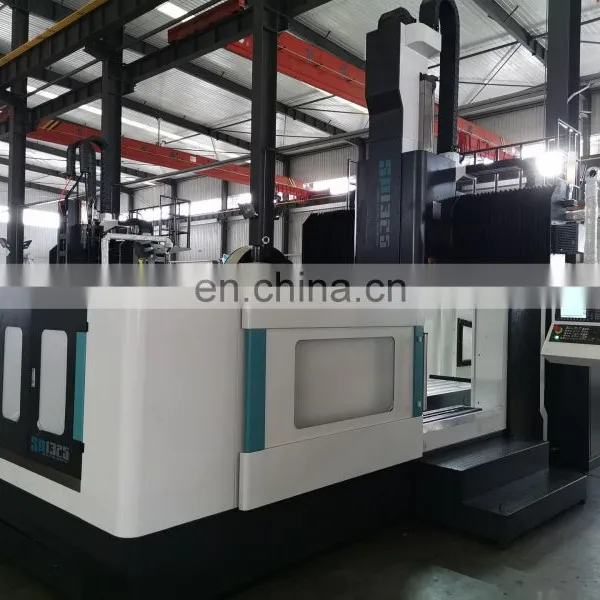

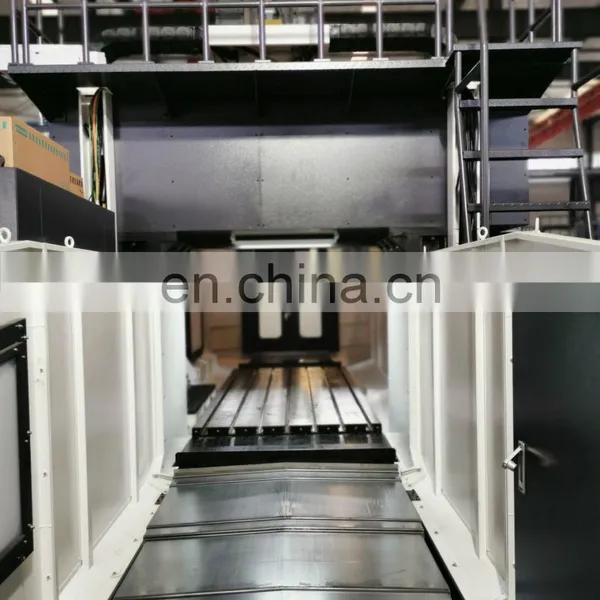

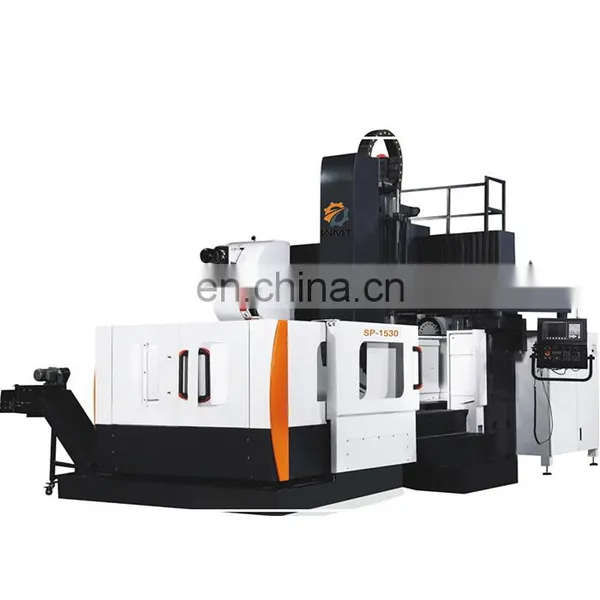

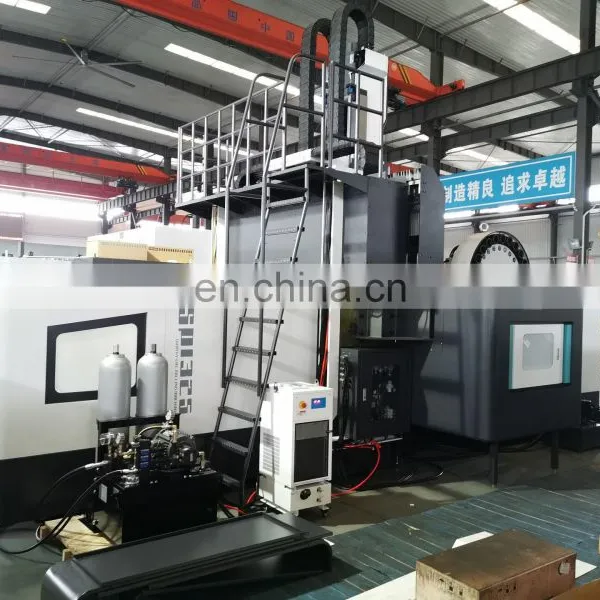

SP1530 Full Protection Direct Drive CNC Machining Center for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SP1325 Direct Drive Linear Guideway Vertical Machining Center From ChinaNegotiableMOQ: 1 -
SP1016 CNC Gantry Machining Center Machine 5 AxisNegotiableMOQ: 1
-
SP1020 Large CNC Double Column Milling MachineNegotiableMOQ: 1
-
5 Axes Cnc SP1325 Direct Drive Roller Guideway Gantry Cnc Mill MachineNegotiableMOQ: 1
-
SP1325 Gantry Milling Machine 5 Axis CNC Machining Center PriceNegotiableMOQ: 1
Specification | SP1530 |
X-axis travel | 3100mm |
Y-axis travel | 1650 +160mm(tool changer) |
Z-axis travel | 800mm |
Distance from spindle nose to worktable surface | 150-950mm |
Worktable size(WxL) | 3000×1300mm |
T-slots size (NxWxD) | 7-22-160mm |
Max. load bearing of worktable | 5000kgs |
X/Y/Z guideway size | Roller 2-45/2-45mm,Z-axis hard guideway |
Rapid feed speed of X axis | 10000 mm/min |
Rapid feed speed of Y axis | 10000 mm/min |
Rapid feed speed of Z axis | 10000 mm/min |
Main motor power | 15/18.5KW |
Spindle model | BT50/Φ150 |
Motor torque | 143N.M |
Spindle taper | BT50 |
Blind rivets aize | P50T-2-MAS403 |
Driven type | Direct drive/Gear box 1:4 |
X/Y/Z linear guideway size | X/Y-axis 2-45# roller linear guideways |
X/Y/Z ball screw size | X-axis 6316,Y-axis 5016,Z-axis 5016 |
Tool magazine capacity | 24pcs, 32pcs |
Tool arbor | BT50 |
Max. tool dimension | Φ110/Φ220mm |
Max. length of tool | 350mm |
Max.tool weight | 20kgs |
Positioning accuracy | 0.03mm |
Re-positioning accuracy | 0.018mm |
Machine weight | 24000kgs |
Overall size (LxWxH) | 8800×5800×5000 mm |
