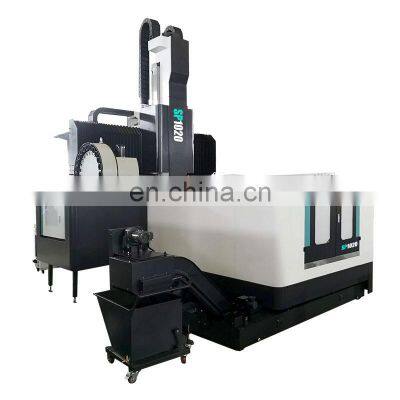

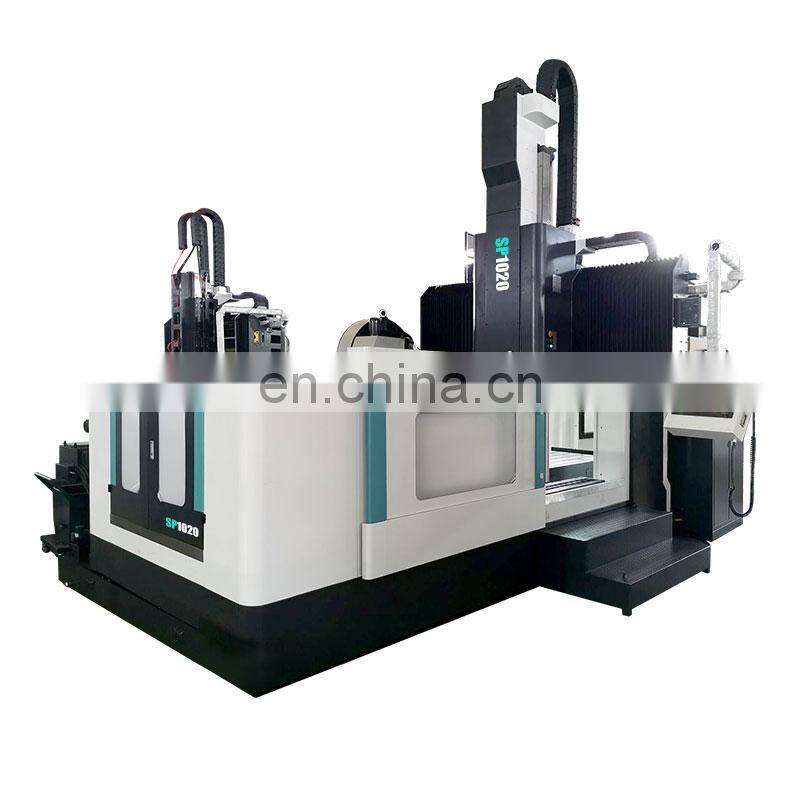

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > SP1020 Large CNC Double Column Milling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Axes Cnc SP1325 Direct Drive Roller Guideway Gantry Cnc Mill MachineNegotiableMOQ: 1 -
SP1325 Gantry Milling Machine 5 Axis CNC Machining Center PriceNegotiableMOQ: 1
-
SP1016 Fanuc Controller CNC Gantry Machining Center High Quality Milling MachineNegotiableMOQ: 1
-
China High Precision Double Column CNC Milling Machine GMC1015 PriceNegotiableMOQ: 1
-
Heavy Duty CNC Gantry Machining Center SP2560 With Full ProtectionNegotiableMOQ: 1
Specification | SP1020 |
X-axis travel | 2050mm |
Y-axis travel | 1100mm |
Z-axis travel | 600mm |
Distance from spindle nose to worktable surface | 160-760mm |
Worktable size(WxL) | 2000×1000mm |
T-slots size (NxWxD) | 7-22mm |
Max. load bearing of worktable | 3500 kgs |
X/Y/Z guideway size | Roller 2-45/2-45mm,Z-axis hard guideway |
Rapid feed speed of X axis | 20000 mm/min |
Rapid feed speed of Y axis | 20000 mm/min |
Rapid feed speed of Z axis | 12000 mm/min |
Main motor power | 18.5KW |
Spindle model | BT50/Φ150 |
Motor torque | 71.7N.M |
Spindle taper | BT50 |
Blind rivets aize | P50T-2-MAS403 |
Driven type | Belt/Gear box 1：4 |
X/Y/Z linear guideway size | X/Y-axis 2-45# roller linear guideways |
X/Y/Z ball screw size | X-axis 6316,Y-axis 5016,Z-axis 5016 |
Tool magazine capacity | 24pcs |
Tool arbor | BT50 |
Max. tool dimension | Φ110/Φ220mm |
Max. length of tool | 300mm |
Max.tool weight | 18kgs |
Positioning accuracy | 0.03mm |
Re-positioning accuracy | 0.018mm |
Machine weight | 18000kgs |
Overall size (LxWxH) | 6000×4000×3900 mm |
