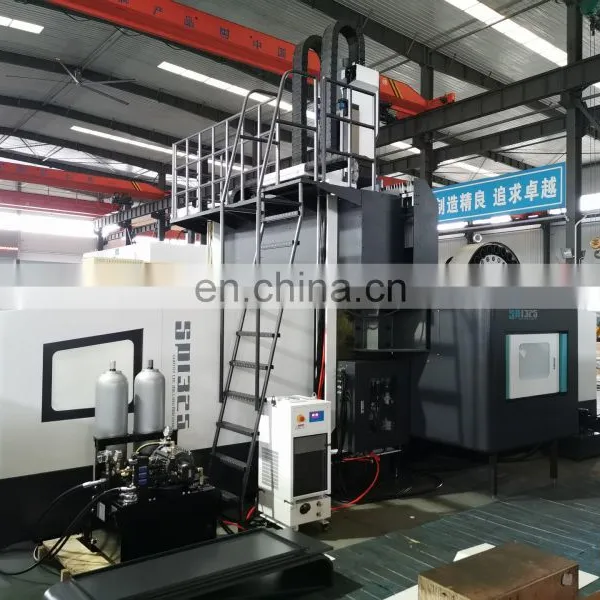

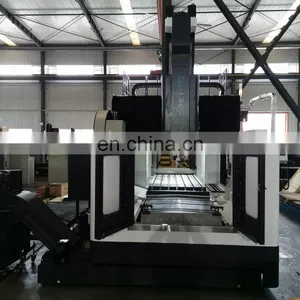

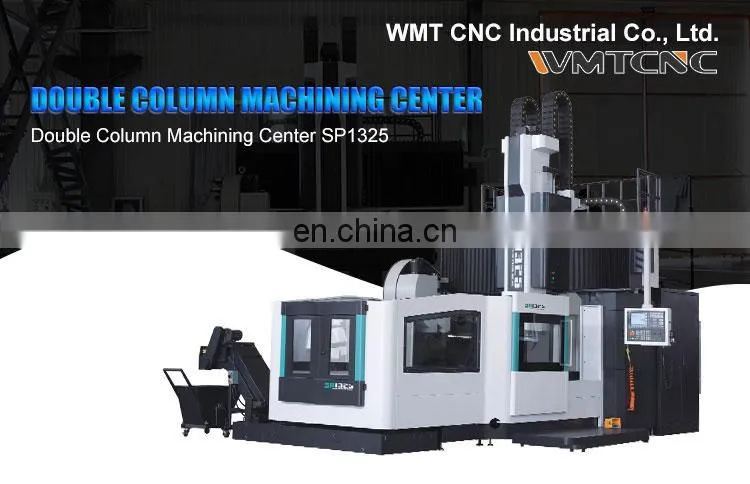

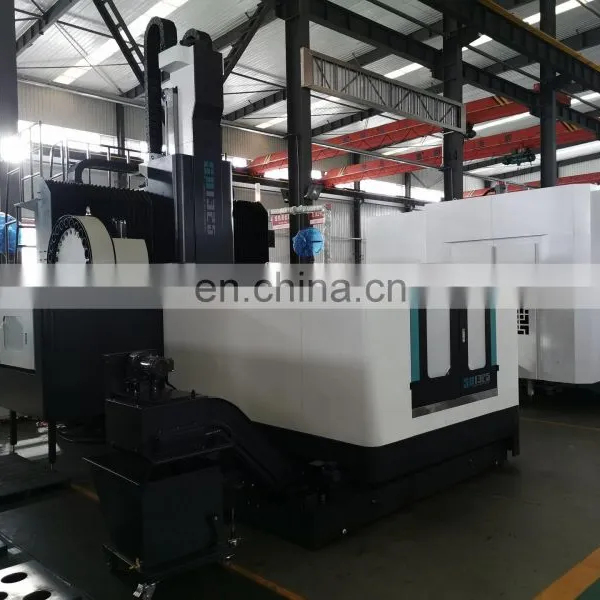

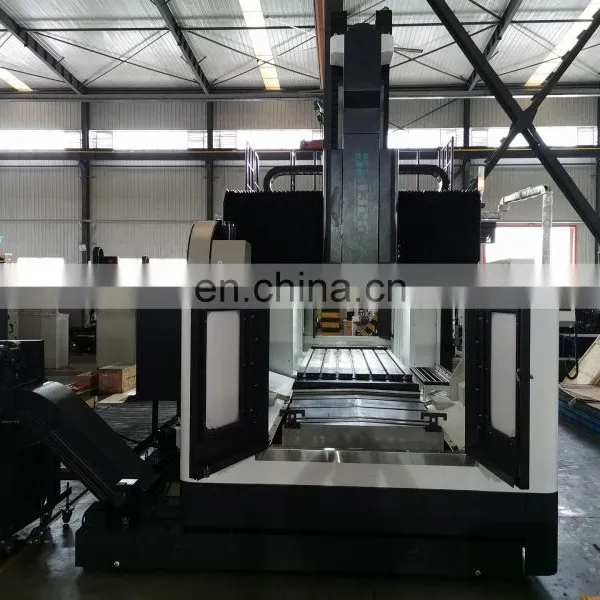

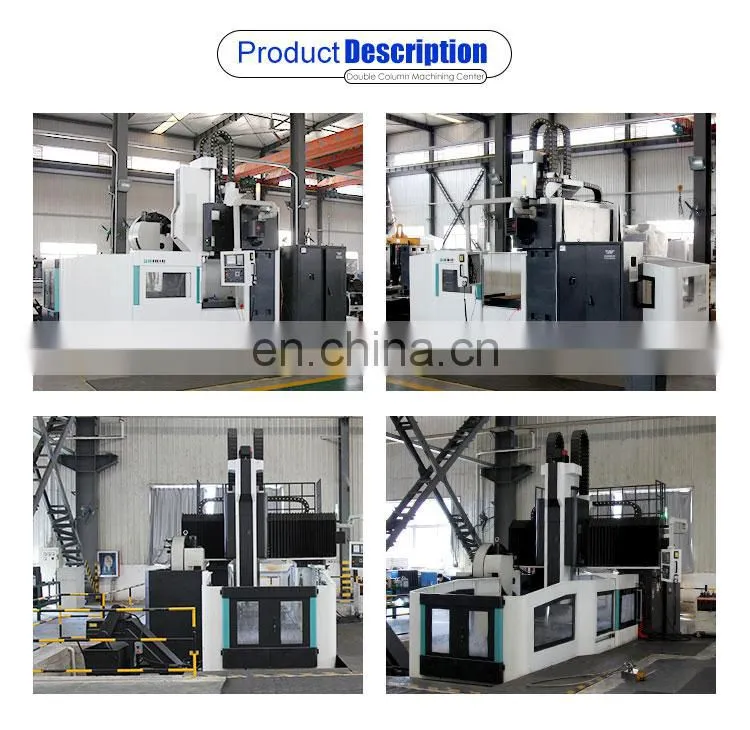

SP1325 Direct Drive Linear Guideway Vertical Machining Center From China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SP1016 CNC Gantry Machining Center Machine 5 AxisNegotiableMOQ: 1 -
SP1020 Large CNC Double Column Milling MachineNegotiableMOQ: 1
-
5 Axes Cnc SP1325 Direct Drive Roller Guideway Gantry Cnc Mill MachineNegotiableMOQ: 1
-
SP1325 Gantry Milling Machine 5 Axis CNC Machining Center PriceNegotiableMOQ: 1
-
SP1016 Fanuc Controller CNC Gantry Machining Center High Quality Milling MachineNegotiableMOQ: 1
Specification |
SP1325 |
X-axis travel |
2600mm |
Y-axis travel |
1400 +160mm(tool change) |
Z-axis travel |
800mm |
Distance from spindle nose to worktable surface |
150-950mm |
Worktable size(WxL) |
2500×1100mm |
T-slots size (NxWxD) |
7-22-160mm |
Max. load bearing of worktable |
4000kgs |
X/Y/Z guideway size |
Roller 2-45/2-45mm,Z-axis hard guideway |
Rapid feed speed of X axis |
10000 mm/min |
Rapid feed speed of Y axis |
10000 mm/min |
Rapid feed speed of Z axis |
10000 mm/min |
Main motor power |
15/18.5KW |
Spindle model |
BT50/Φ150 |
Motor torque |
143N.M |
Spindle taper |
BT50 |
Blind rivets aize |
P50T-2-MAS403 |
Driven type |
Direct drive/Gear box 1:4 |
X/Y/Z linear guideway size |
X/Y-axis 2-45# roller linear guideways |
X/Y/Z ball screw size |
X-axis 6316,Y-axis 5016,Z-axis 5016 |

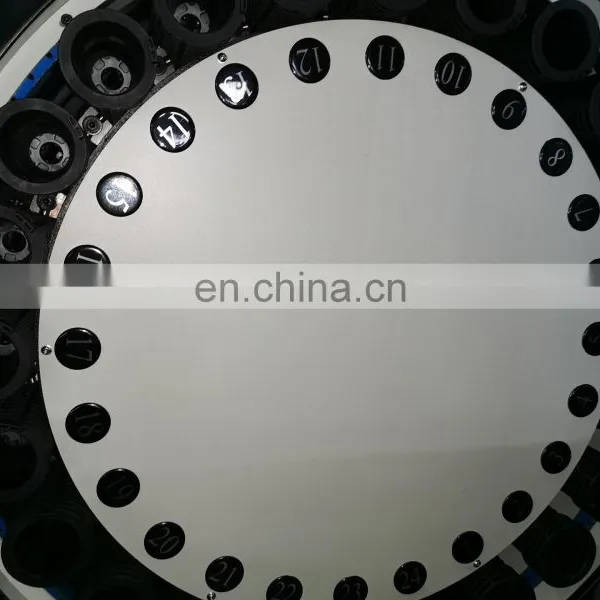

Tool magazine capacity |
24pcs, 32pcs |
Tool arbor |
BT50 |
Max. tool dimension |
Φ110/Φ220mm |
Max. length of tool |
350mm |
Max.tool weight |
20kgs |
Positioning accuracy |
0.03mm |
Re-positioning accuracy |
0.018mm |
Machine weight |
21000kgs |
Overall size (LxWxH) |
7800x5500x5000mm |
Related Products

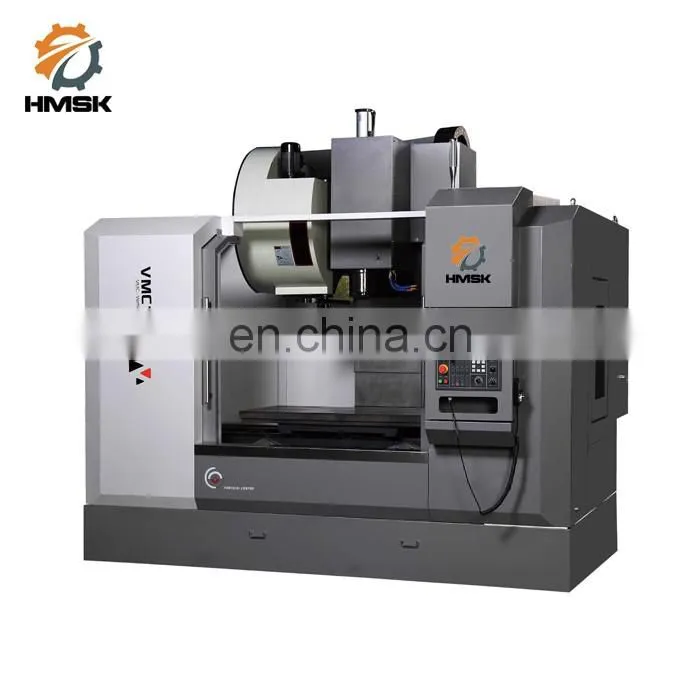

VMC850L vertical machining center
95% Response Rate

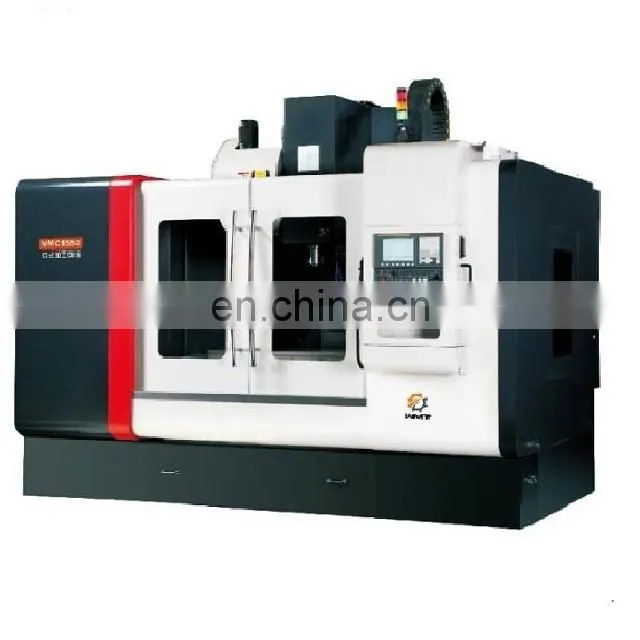

VMC1200L 3 axis cnc milling machine center
