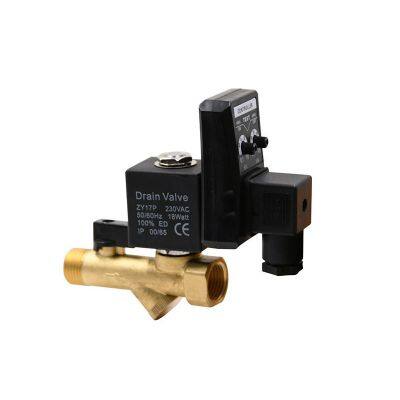

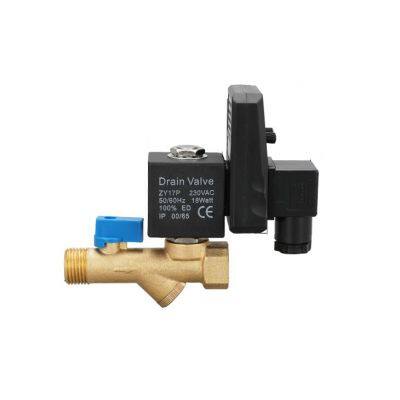

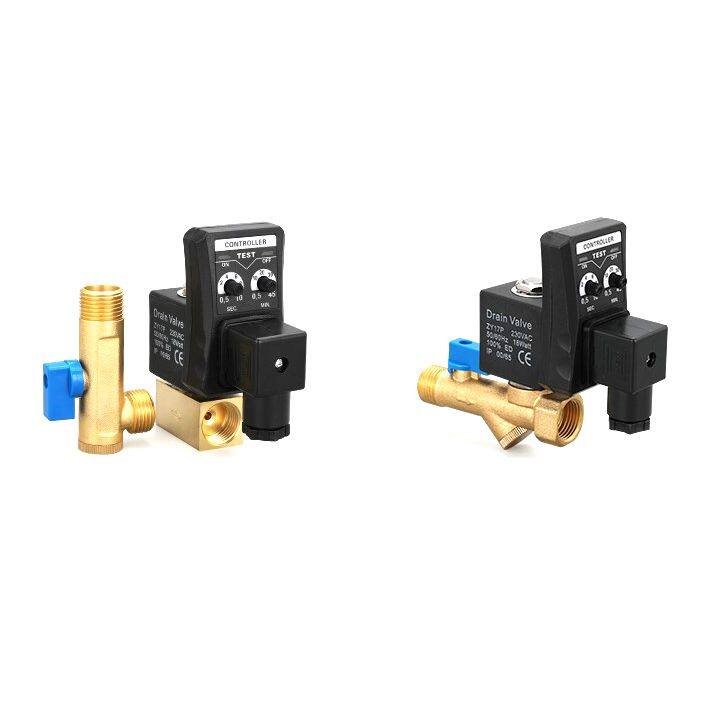

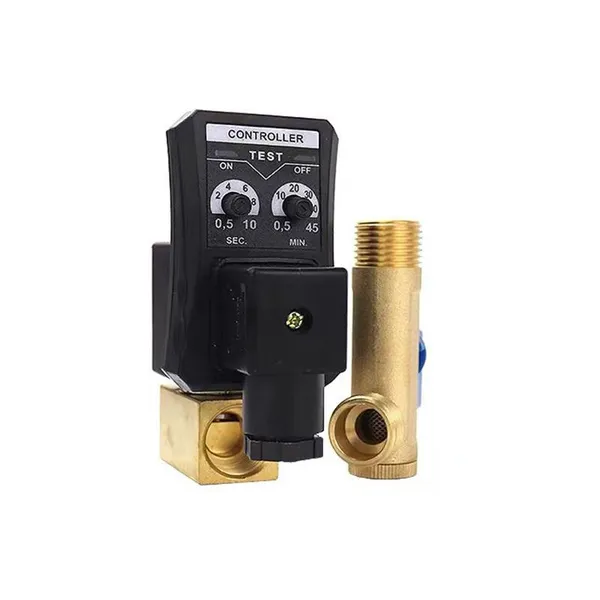

AC220V DC24V OPT-A 1/2" water Automatic Brass Digital Auto Drain Solenoid Valve with Timer
Model | OPT-A | OPT-B | OPT-T | |
Description | Separated | Inseparated | Timer | |
Port Size | 1/2'' | |||
Pressure range | 0.05-0.85 Mpa | |||
Proof pressure | 1.6 Mpa | |||
Power supply(voltage) | 24 to 240V AC/DC 50HZ/60HZ | |||
Ambient temperature | -5~80℃ | |||
Voltage range | ±10% | |||
Protection class | IP65 | |||
Connection type | DIN43650A | |||
Voltage | AC220V 50/60HZ | |||
The highest pressure | Normally open | 8 kgf/cm2 | ||
Normally closed | 10kgf/cm2 | |||

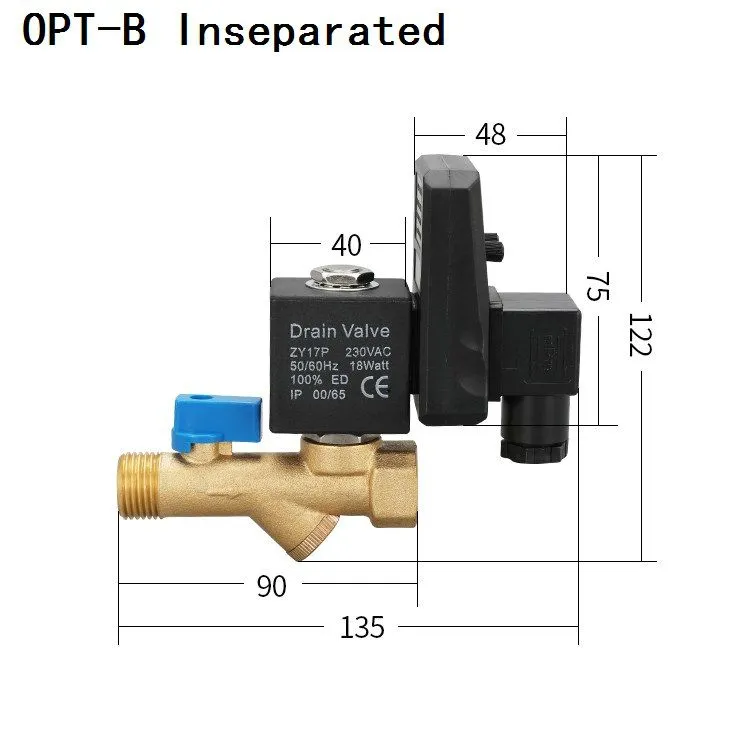

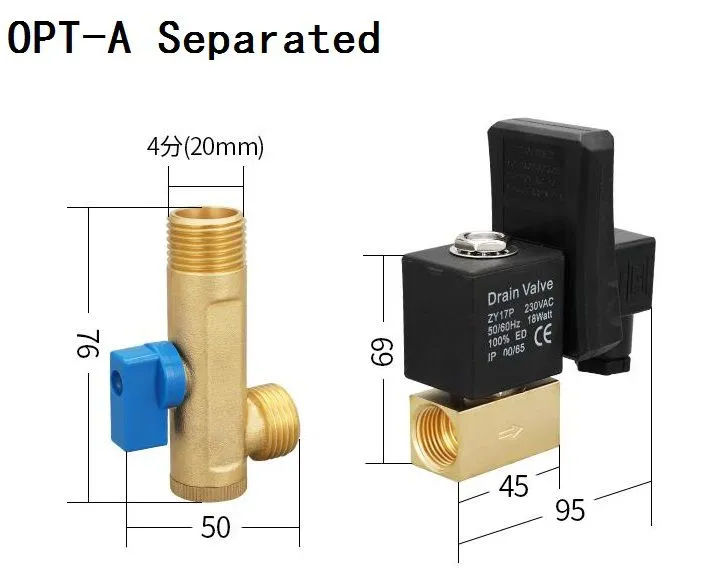

Dimension
Feature
OPT type auto drain solenoid valve match analogous circuit solid state electronic timer with the solenoid valve to realize discharging the condensed water of compressed pneuamtic system at fixed time automatically.
Normal is 1/2" port size, 1/4" & 3/8" are also avalible. Thread can be G or NPT.
Our Auto drain valve can be with EURO plug or USA plug or Australian plug or others plug as your needs.
