Single coil Airtac type 5/2 way G1/4 Pneumatic solenoid valve 4V210-08

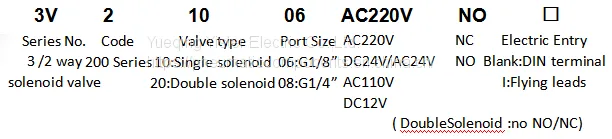

Order code
Symbol for 3V210 pneumatic solenoid valve
Technical parameter
Model |
3V210-06 |
3V220-06 |
3V210-08 |
3V220-08 |
Fluid |
Air |
|||
Acting |
Internal pilot |
|||
Original state |
NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO |
|||
Lubrication |
No required |
|||
Orifice size |
14.0mm² |
16.0mm² |
||
Port size |
In=out=G1/8'' |
In=out=G1/4'' |
||
Protective class |
IP65 |
|||
Pressure range |
0.15-0.8MPa(21~114psi) |
|||
Proof pressure |
1.2MPa(215psi) |
|||
Material of body |
Aluminum Alloy |
|||
Temperature |
-5℃~60℃ |
|||
Response speed |
||||

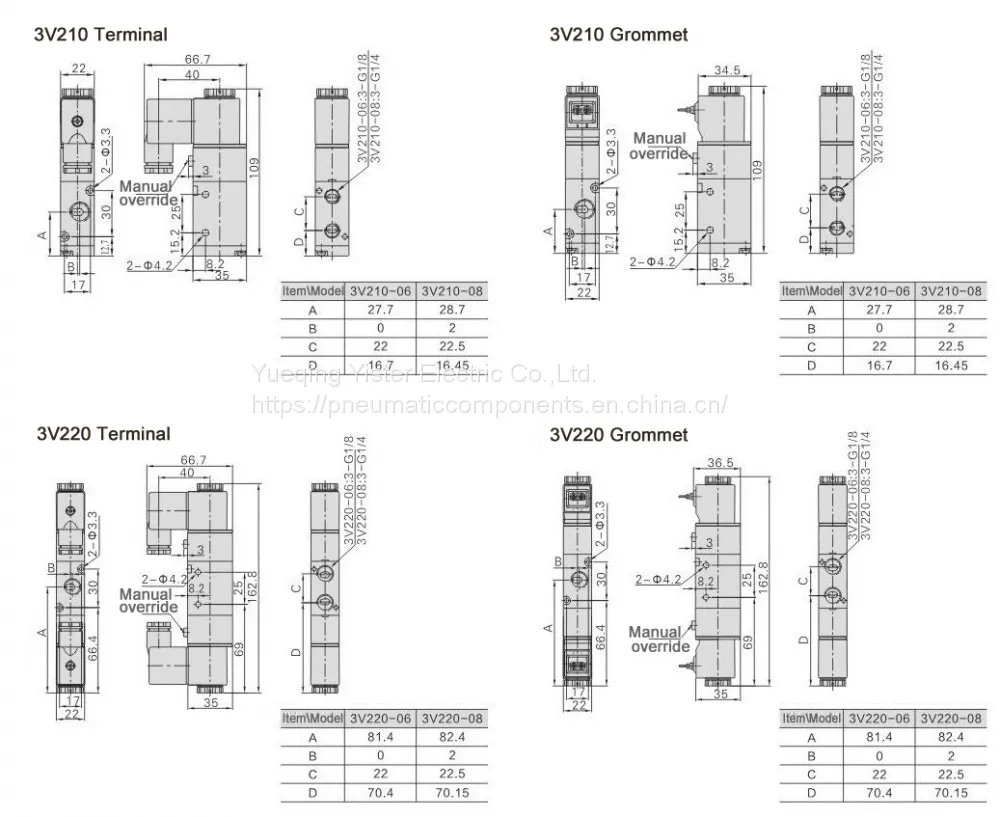

Dimension for 3V210 3V220 Solenoid valve
Feature
.2 Position 3 Way normally closed pilot Solenoid Valve 3v210-06 3v210-08
.DC12V AC220V air solenoid valve
.Valve stays open when the coil is de-energized- and it closes when energized..
.High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.
