Help Center3.5Mpa KA-15 KA-20 KA-25 High Pressure One Way Non-return Check Valve for Bottle Blowing Machine
Related Products
-
SMC Type CV Series Aluminum Alloy Vacuum Generator Pneumatic Vacuum Ejector With Fittings and MufflerUS$ 1 - 5MOQ: 1 Piece -
2/2 Way 220V Direct Acting Brass Material 2w160-15 Irrigation Water Solenoid ValveUS$ 1 - 10MOQ: 1 Piece
-
AC220V DC24V OPT-A 1/2\" Water Automatic Brass Digital Auto Drain Solenoid Valve With TimerUS$ 5 - 7MOQ: 1 Piece
-
12bar 30bar Small Body Brass Material Spring Loaded A28X High Pressure Safety Valve for Air CompressorUS$ 1 - 10MOQ: 1 Piece
-
Airtac Type Aluminum Alloy 3 Way 2 Position HSV Pneumatic Hand Slide Valve With LockUS$ 0.1 - 20MOQ: 1 Piece
3.5Mpa KA-15 KA-20 KA-25 High Pressure one way non-return check valve for bottle blowing machine

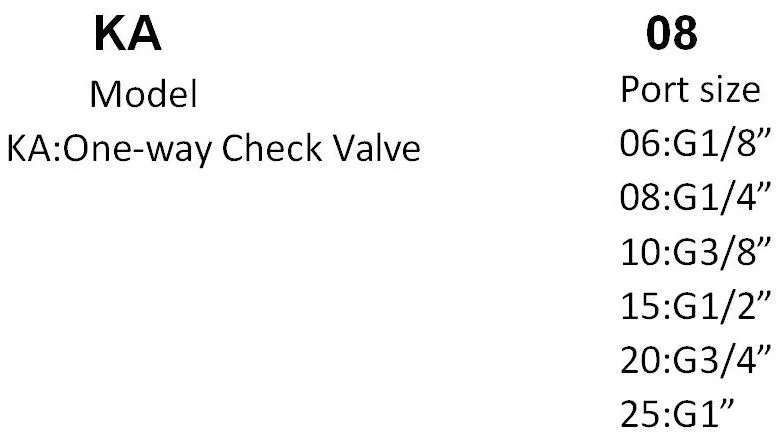

Order code
Symbol
Technical parameter
Model No |
KA06 |
KA08 |
KA10 |
KA15 |
KA20 |
KA25 |
|
Fluid |
Air |
||||||
Port size |
G1/8” |
G1/4” |
G3/8” |
G1/2” |
G3/4” |
G1” |
|
Orifice size |
10 |
20 |
40 |
60 |
100 |
190 |
|
Pressure range |
0.15-0.8MPa |
0.4-3.5MPa |
|||||
Proof pressure |
1.5MPa |
4MPa |
|||||
Temperature |
-20℃~70℃ |
||||||
|
Aluminum alloy |
||||||
Dimension
About us
Yister specialized in manufacturing pneumatic check valve,high pressure check valve,one-way valve, non-return valve,we adopt international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The main performance indicators of the products have reached the international advanced level.
FAQ
Q:Do you accept OEM?
A: Yes, we offer OEM service.
Q:What certificates can you offer?
A: CE, ISO9001 certificates.
Q:What products do you make and sell?
A: Pneumatic cylinder
Air cylinders
Air tubes and fittings
air processing unit
air control valve
Solenoid valves
Mechanical valve
Hand valve
check valve
non return valve
one way valve
Air source treatments: air regulator, air filter, air combination, air lubricator
Other pneumatic components
Q:Could i buy 1pc high pressure pneumatic one way non-return check valve first and small order ?
A: Of course, support sample order and small order, especially for new customers under certain condition.
Q:If i have my thoughts, do you design and customize according to my requirement?
A: Certainly,our design team is willing to do for you.
