3/2 Way Direct Acting Multiple Solenoid Valve Manifold

3/2 Way Direct Acting Multiple Solenoid Valve Manifold thumbnail-1
3/2 Way Direct Acting Multiple Solenoid Valve Manifold thumbnail-2
3/2 Way Direct Acting Multiple Solenoid Valve Manifold thumbnail-3
3/2 Way Direct Acting Multiple Solenoid Valve Manifold thumbnail-4
3/2 Way Direct Acting Multiple Solenoid Valve Manifold thumbnail-5
3/2 Way Direct Acting Multiple Solenoid Valve Manifold photo-1
3/2 Way Direct Acting Multiple Solenoid Valve Manifold photo-2
3/2 Way Direct Acting Multiple Solenoid Valve Manifold photo-3
3/2 Way Direct Acting Multiple Solenoid Valve Manifold photo-4
3/2 Way Direct Acting Multiple Solenoid Valve Manifold photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
3V1-05 ,3V1-06
Contact Supplier Request Quote Chat Now
Yueqing Yister Electric Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yister
Place of Origin China
Model Number 3V1-05 ,3V1-06
Material Alloy
Application General
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size M5,G1/8
Media Other, Air
Temperature of Media Normal Temperature

3/2 way direct acting multiple solenoid valve manifold

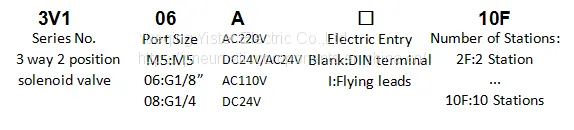

Order code for 3V1-M5

Solenoid valve Symbol for 3V1-06

Technical parameter

Model

 3V1-M5

3V1-06

3V1-08

Fluid

Air

Acting

Direct acting

Valve type

3 way 2 position

Lubrication

No required

Temperature

-20℃~70℃

Port size

M5

G1/8''

G1/4''

Viscosity limit

Under 20CST

Pressure range

0-0.8MPa(0~100psi)

Proof pressure

1.5MPa(215psi)

 Orifice size

Φ1mm

Material of body

Aluminum alloy

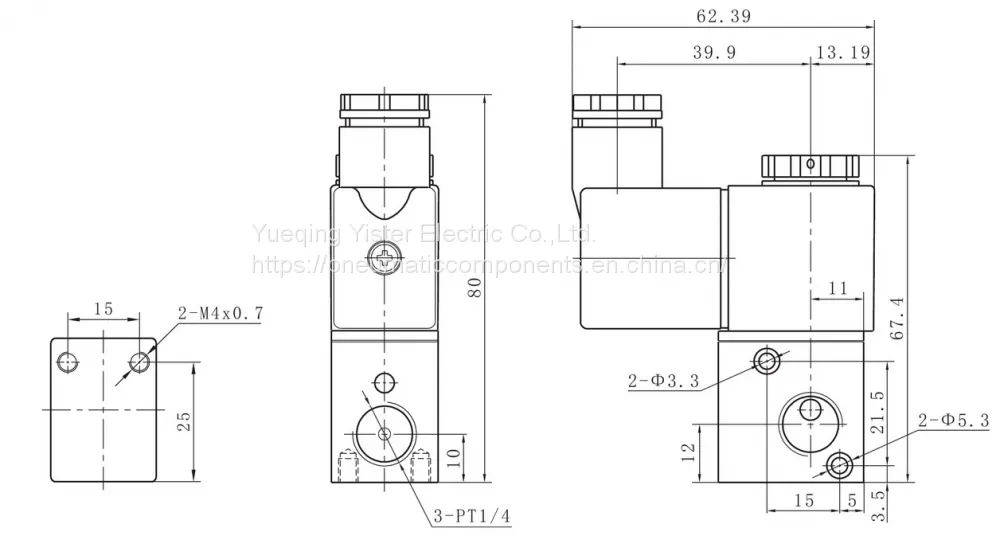

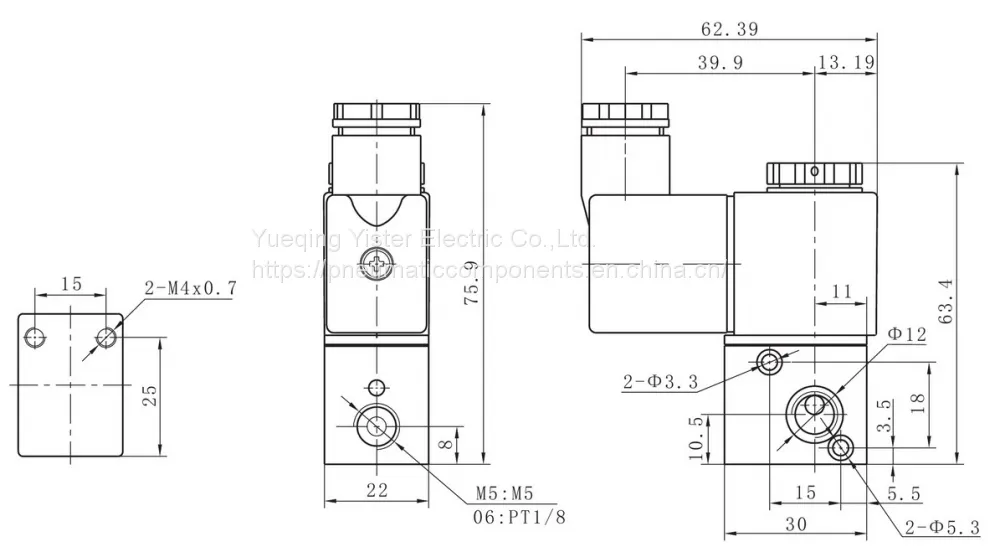

Dimension
Response speed


Feature

.3V1-M5/06 solenoid air valve is made of high quality brass material, and durable in use
.This is direct acting type normally closed solenoid air valve, which is sensitive to change direction
.Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control
.The inner valve core and spring are made of stainless steel and will not rust, no need additional lubricate
.With solenoid operated for control appropriate flow and direction, provide great performance

Product Tags: multiple solenoid valves , 3/2 solenoid valves , direct acting solenoid valves , normally closed solenoid valves , solenoid valve manifold , solenoid valve symbol , solenoid valve assembly , solenoid valve air , solenoid valve body
