Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230

Yueqing Yister Electric Co.,Ltd.
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 thumbnail-1
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 thumbnail-2
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 thumbnail-3
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 thumbnail-4
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 thumbnail-5
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 photo-1
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 photo-2
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 photo-3
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 photo-4
Smc Type 3 Way 1/4 Inch Solenoid Valve VF3130 VF3230 VF3230 photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
VF3130,VF3230,VF3330
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yister
Place of Origin China
Model Number VF3130,VF3230,VF3330
Material Other, Aluminum
Application Other, Automation machine
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size G1/4
Media Other, Air
Temperature of Media Normal Temperature

smc type 3 way 1/4 inch solenoid valve VF3130 VF3230 VF3230

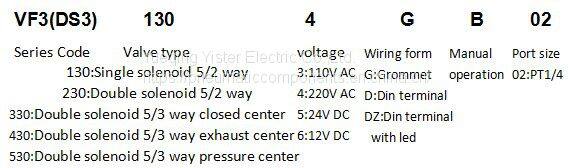

Order code

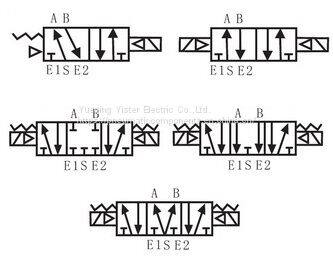

Symbol for 5V210 12v solenoid valve

Technical parameter

Model

VF3130(DS3130)

VF3230(DS3230)

VF3330(DS3330)

VF3430(DS3430)

VF3530(DS3530)

Fluid

Air

Acting

Internal pilot

Valve type

5/2 way

5/3 way

Orifice size

16.0mm2

16.0mm2

12.0mm2

12.0mm2

12.0mm2

Lubrication

No required

Port size

In=out=G1/4''

Protective class

IP65

Pressure range

0.15-0.8MPa

Proof pressure

1.2MPa

Material of body

Aluminum Alloy

Temperature

5℃~50℃

Response speed

<0.05s

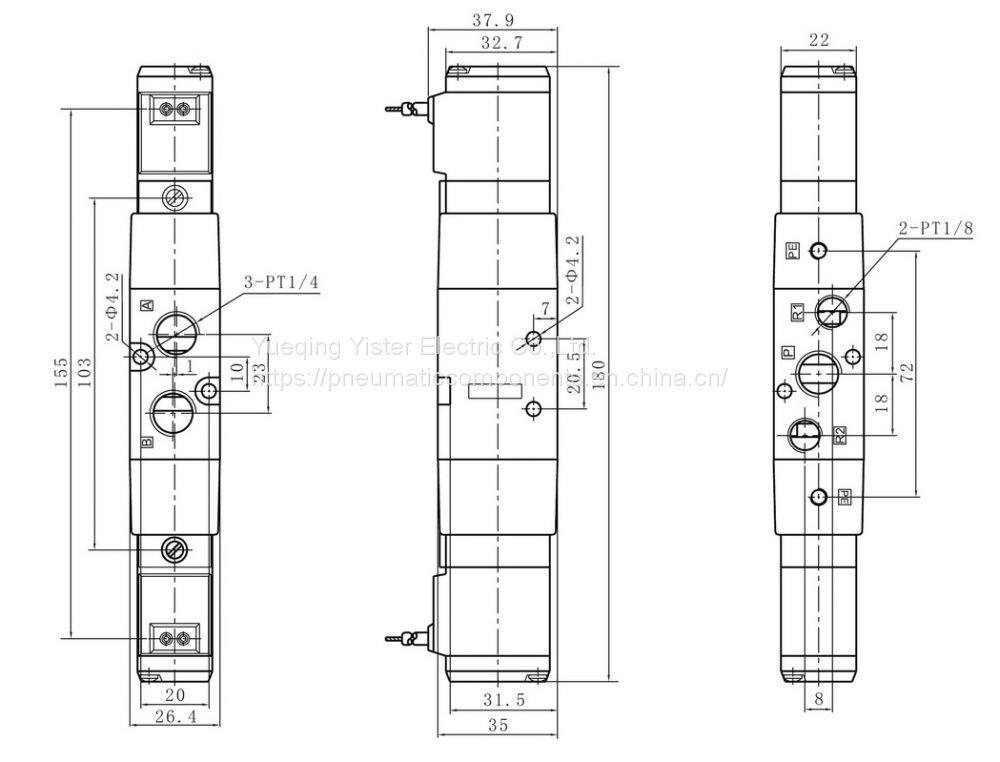

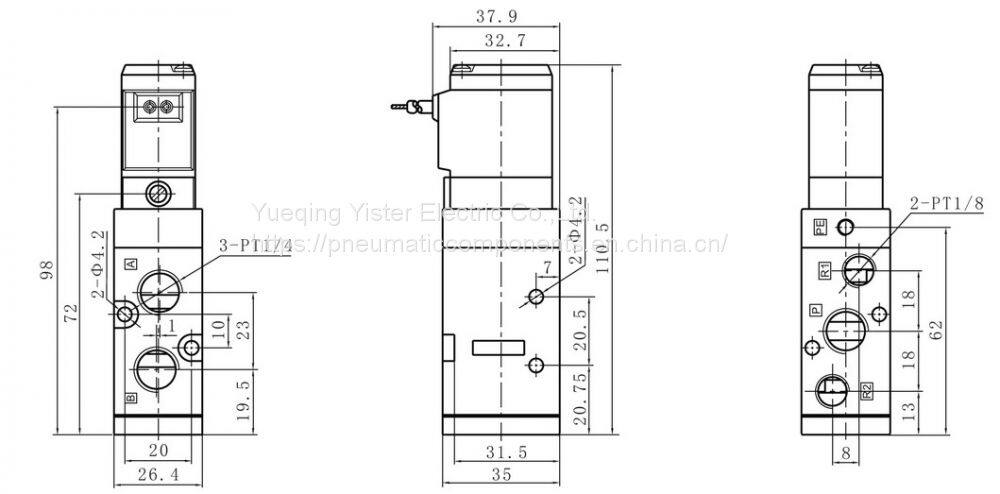

Dimension for SMC standard VF series Solenoid valve

FAQ

1. what is your products?

Yister Pneumatic produce Pneumatic solenoid valve, Mechanical valve, foot valve, Air control valve, hand valve, cylinder, PU Tube ,pneumatic fittings,etc.



2. how can we guarantee quality?

Warrenty is one-year. 100% Inspection before shipment;



3. VF3130 VF3230 VF3330 solenoid valve is SMC original brand ?

No,ours VF3130 3 way solenoid valve is SMC replacement with same function


Product Tags: smc solenoid valve , solenoid valve 1/4 inch , 3 way solenoid valve , VF3130 , VF3230 , 5/3 solenoid valve , 120v solenoid valve , 1/4 solenoid valve
