3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve

3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve thumbnail-1
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve thumbnail-2
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve thumbnail-3
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve thumbnail-4
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve thumbnail-5
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve photo-1
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve photo-2
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve photo-3
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve photo-4
3/2 Way Normally Closed 3V410-15W External Pilot Pneumatic Electric Solenoid Valve photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yister
Place of Origin:
China
Model Number:
3V410-15
Contact Supplier Request Quote Chat Now
Yueqing Yister Electric Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yister
Place of Origin China
Model Number 3V410-15
Material Other, Aluminum
Application Other, pneumatic solenoid valve
Structure Other, electric solenoid valve
Standard or Nonstandard Standard
Pressure Low Pressure
Power Solenoid
Port Size G1/2
Media Other, 1/2 solenoid valve
Temperature of Media Normal Temperature

3/2 way normally closed 3V410-15W external pilot pneumatic solenoid valve

Order code

Pneumatic solenoid valve diagram

Technical parameter

Model

 3V410-15W

3V420-15W

Fluid

Air

Acting

external pilot

Original state

NC(Normally closed),NO(Normally open);Double solenoid :no NC/NO

Lubrication

No required

Orifice size

25.0mm²

30.0mm²

Port size

In=out=G1/2''

Protective class

IP65

Pressure range

0.15-0.8MPa(21~114psi)

Proof pressure

1.2MPa(215psi)

Material of body

Aluminum Alloy

Temperature

-5℃~60℃

Response speed

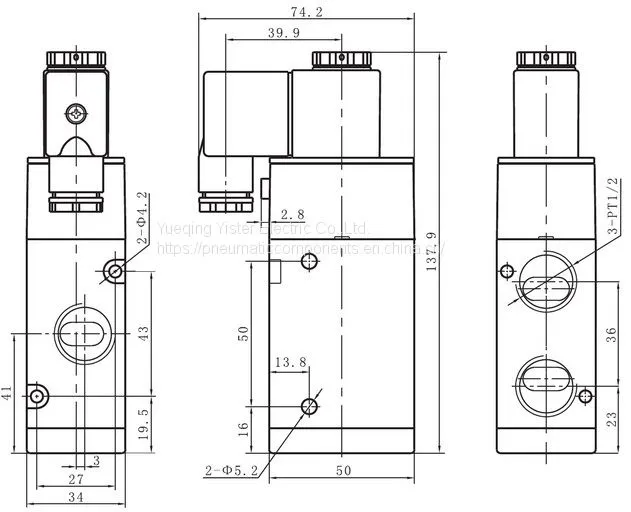

Dimension

Feature

2 Position 3 Way external pilot Solenoid Valve (normally open)

Valve stays open when the coil is de-energized- and it closes when energized..
High-quality solenoid valve pilot head, sensitive response, response speed 5 times per second, stable performance.

Product Tags: solenoid air valve , electric solenoid valve , 220V solenoid valve , pneumatic solenoid valve , solenoid valve , 1/2 solenoid valve , 24V solenoid valve , pilot solenoid valve , air solenoid valve 220v
