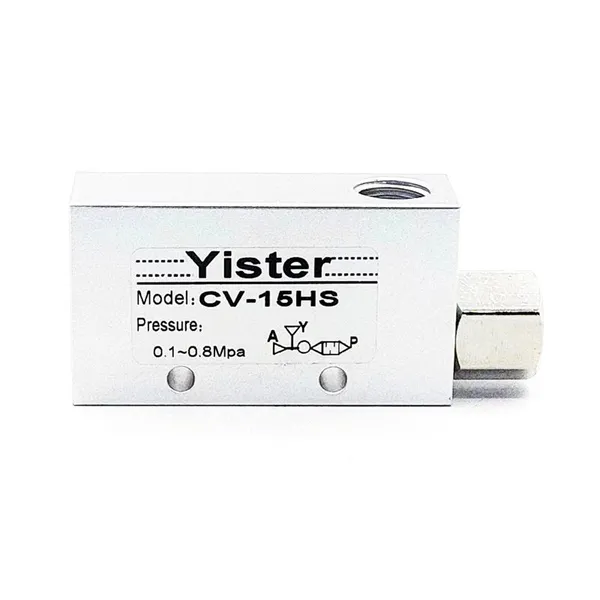

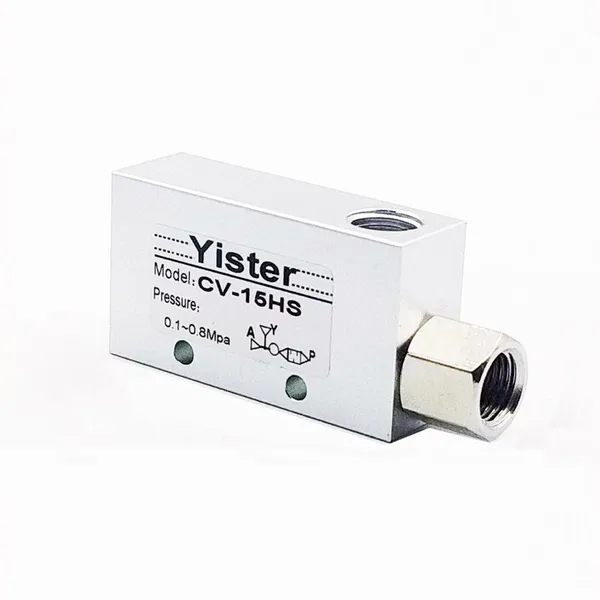

SMC type CV Series Aluminum Alloy Vacuum Generator Pneumatic Vacuum Ejector with fittings and muffler
Order code
Technical valve
Model No |
Unit |
CV-10HS |
CV-15HS |
CV-20HS |
Fluid |
No oil compressed Air |
|||
Ambient temperature |
℃ |
0-60（no freezing） |
||
Pressure range |
MPa |
0.1~0.6 |
||
Nozzle diameter |
φmm |
1.0 |
1.5 |
2.0 |
Proof pressure |
MPa |
0.5 |
||
Vacuum flow rate |
R/min |
27 |
63 |
110 |
Max.vacuum pressure |
kPa |
-0.92 |
||
|
L/min |
44 |
100 |
180 |
Symbol
Inner structure

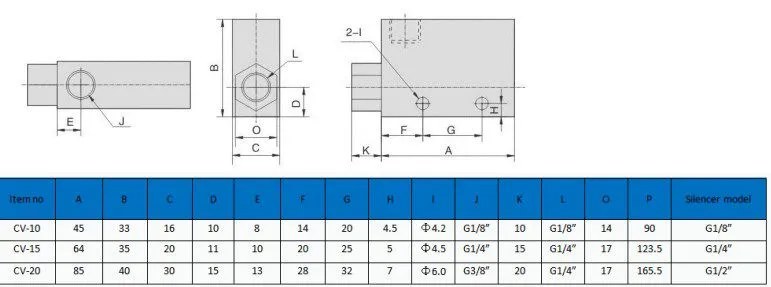

Dimension
Feature
Vacuum generators are widely used in the fields of machinery, electronic packaging, printing, plastics and robots in industrial automation. The traditional use of vacuum generators is to cooperate with suction cups to absorb and transport various materials, especially suitable for adsorbing fragile, Soft, thin non-ferrous, non-metallic materials or spherical objects.
