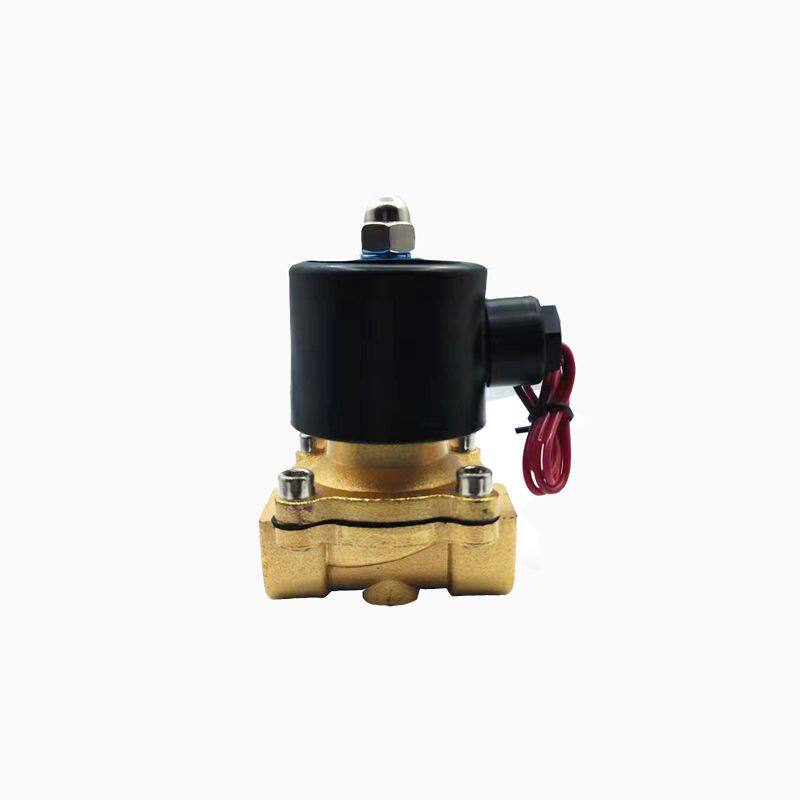

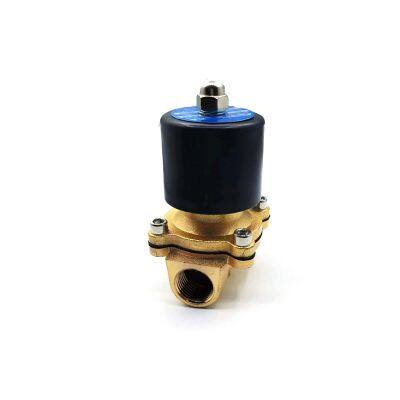

2/2 way 220V direct acting normally closed brass material 2w160-15 irrigation water solenoid valve

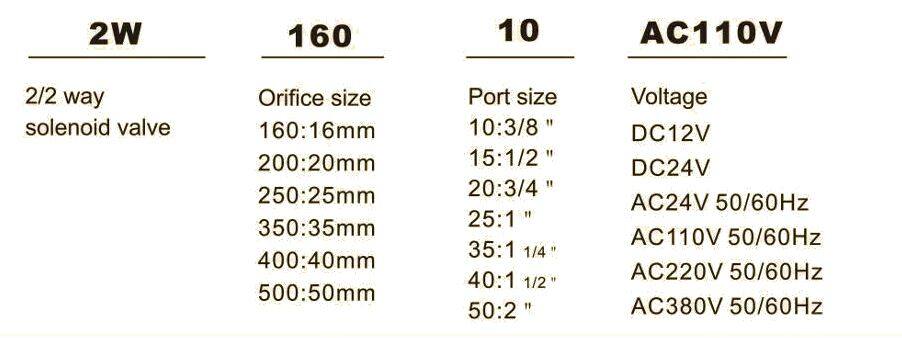

Order code
Technical Parameter
| Normally closed brass solenoid valve | |||||||
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Working medium | Air, water, oil, gas | ||||||
| Motion pattern | Direct acting Type | ||||||
| Type | Normal Closed Type | Normal Open Type | |||||
| Orifice(mm) | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
| CV | 4.8 | 4.8 | 7.6 | 12.00 | 24.00 | 29.00 | 48.00 |
| Pipe size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Material of valve body | Brass | ||||||
| Operation fluid viscosity | 20 CST(below) | ||||||
| Working pressure | Water: 0~5 bar, Air: 0~5, Gas:0~7 | ||||||
| Max. pressure | 10.5 bar | ||||||
| Temperature | -5~80 degrees centigrade | ||||||
| Material of Oil Seal | NBR, EPDM or VITON | ||||||

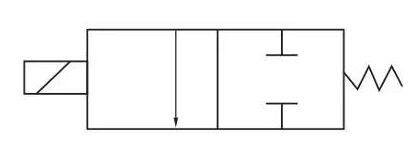

Symbol

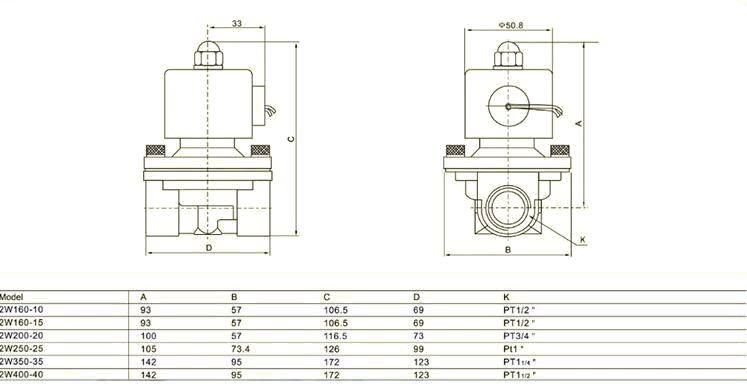

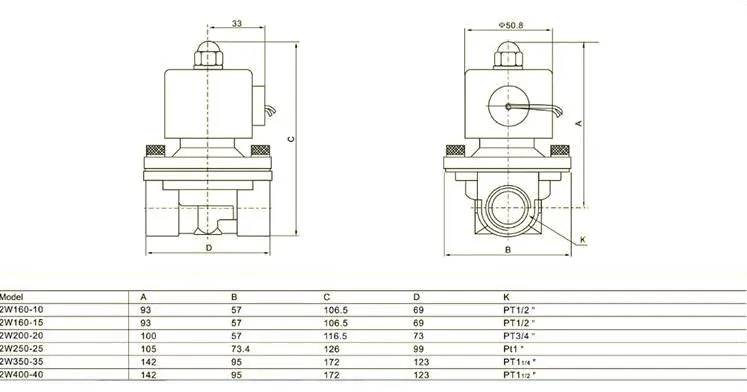

Dimension
Feature
Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum
Function type: Normally Closed (N/C), Normally Open (N/O)
Pressure: Normally Closed 10bar; Normally Open 6bar
Temperature: -5 ÷80℃
Mode of action: Direct acting 2w160-15 water solenoid valve
Body material: Brass
Sealing material: NBR,EPDM,Viton
Protection class: IP65
About us
Yister specialized in manufacturing pneumatic hand control lever valve,push pull valve, pneumatic switch, manual control valve, air control valve,water solenoid valve, brass solenoid valve, etc. Our company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.Shipping&Packing
FAQ
1.Q:If i have my thoughts, do you design and customize solenoid valve according to my requirement?
A: Certainly,our design team is willing to do for you.
2.Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. Q:How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
4.Q: How Will You Make the Shipment for brass solenoid valve?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
