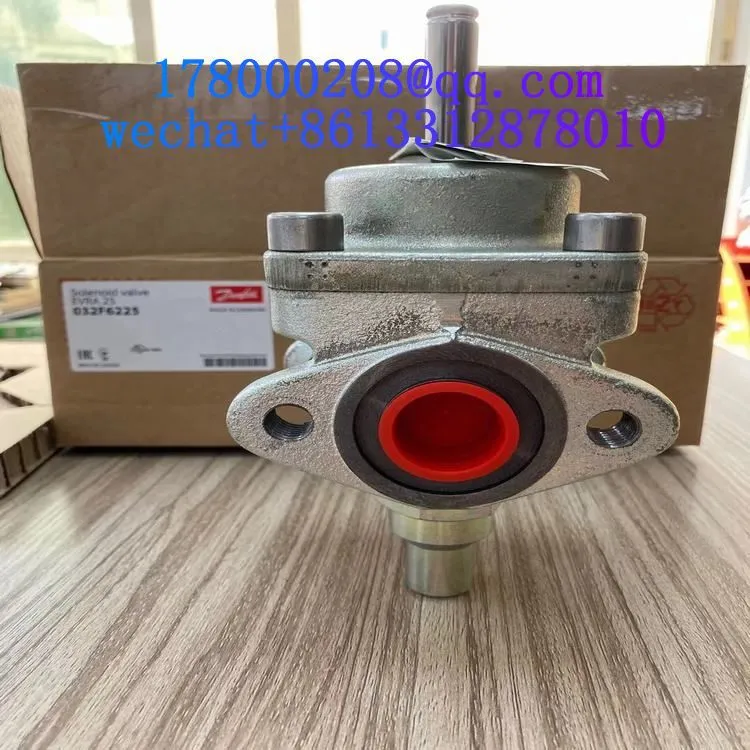

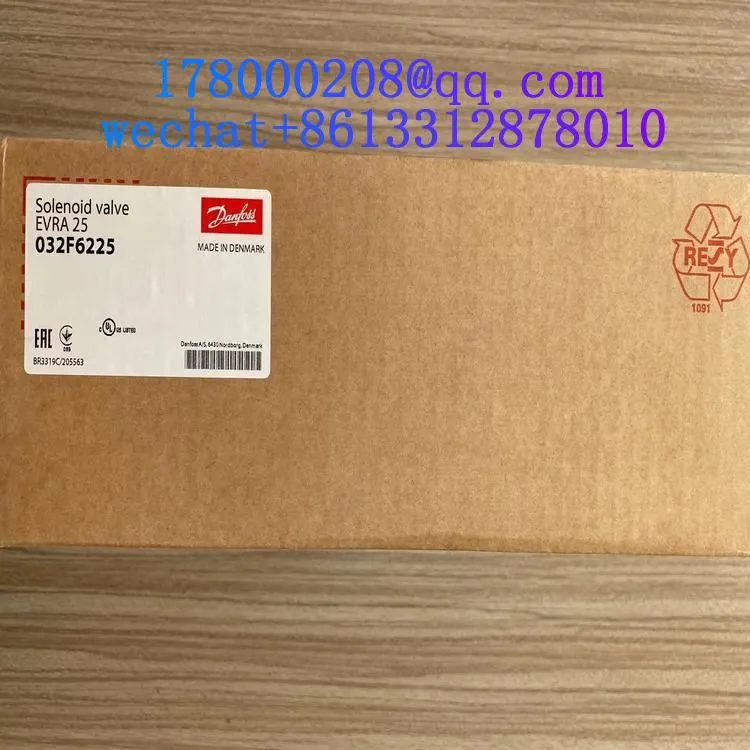

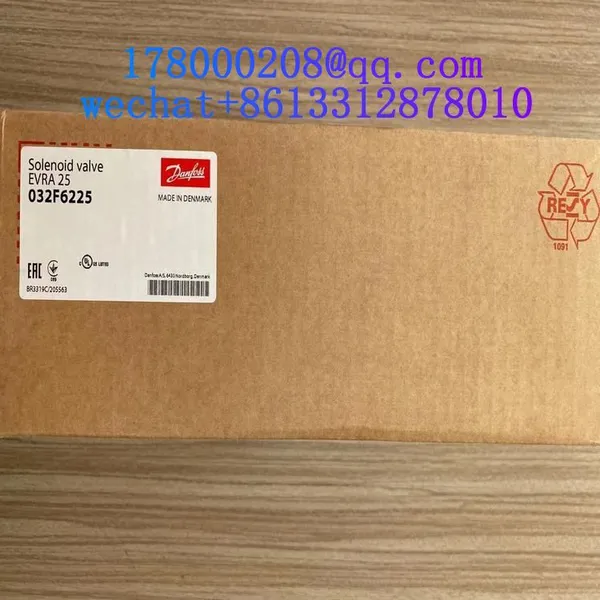

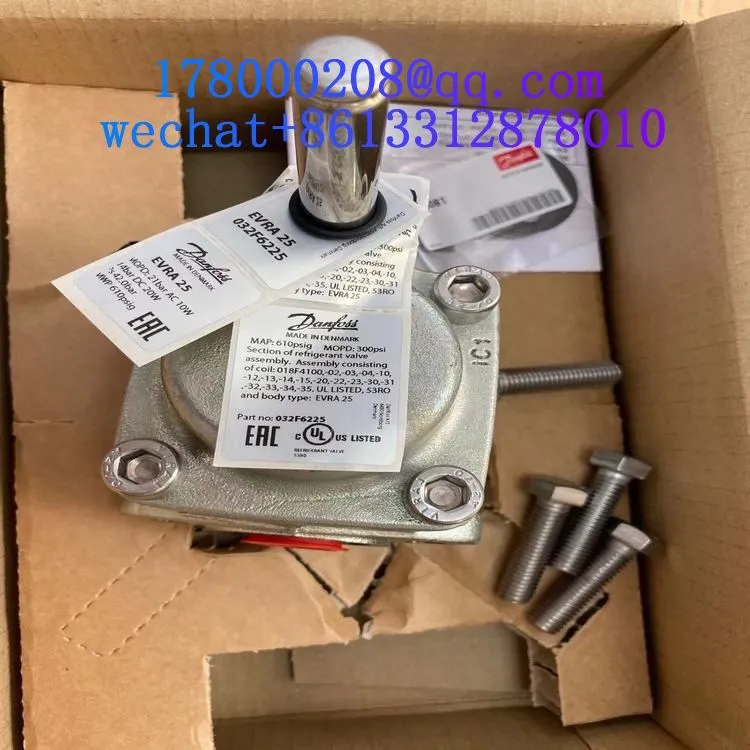

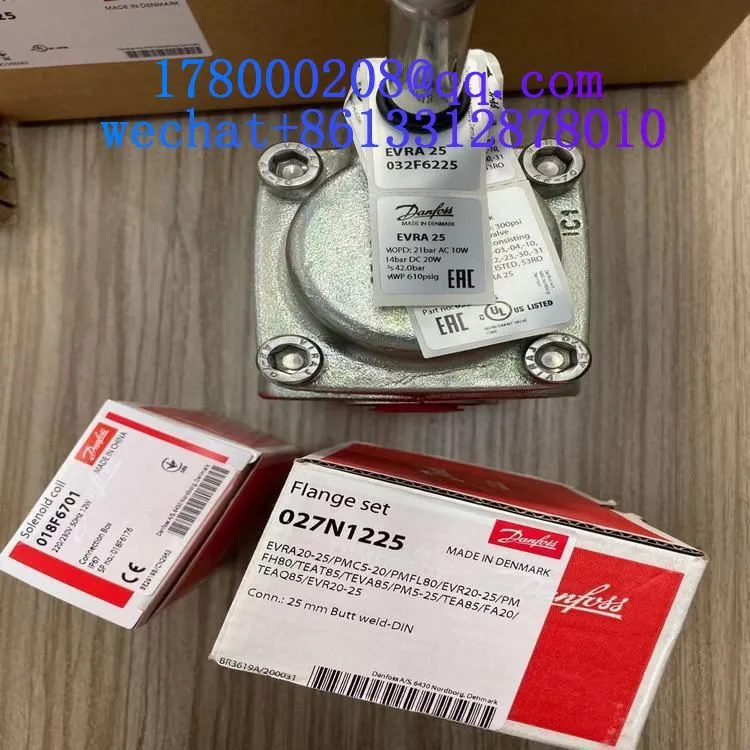

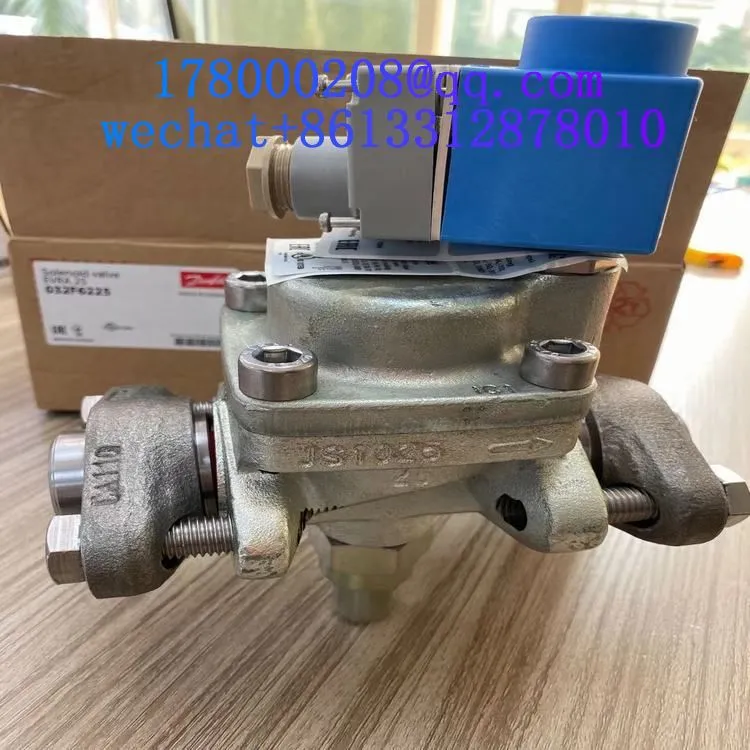

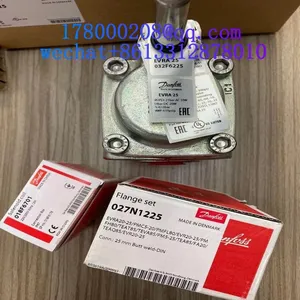

EVRA25-032F6225 Solenoid Valve Produced by Danfoss
US$ 2900 - 3100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Danfoss
Place of Origin:
Denmark
Model Number:
032F6225
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
3 days
Related Products
-
Danfoss EVRA32-40-042H1126 Servo Solenoid ValveUS$ 4500 - 4800MOQ: 1 Piece -
Danfoss TUV.SV.19-SFA15T213 Safety ValveCNY 2000 - 2100MOQ: 1 Piece
-
SFA15T218-TUV.SV.19 Safety Valve Produced by DanfossCNY 2000 - 2100MOQ: 1 Piece
-
Danfoss SFV20T218-TUV.SV.17 Pressure Relief Safety ValveCNY 2100 - 2250MOQ: 1 Piece
-
SFV25T218-220bar Safety Valve Manufactured by DanfossCNY 2400 - 2500MOQ: 1 Piece
Brand Name
Danfoss
Place of Origin
Denmark
Model Number
032F6225
Material
Other, carbon steel
Application
Other, Ammonia refrigeration system
Structure
Shutoff
Standard or Nonstandard
Standard
Pressure
Medium Pressure
Power
Solenoid
Port Size
25mm
Media
Other, Liquid ammonia and Freon
Temperature of Media
Normal Temperature
EVRA25-032F6225 solenoid valve produced by Danfoss product details
Solenoid valve, EVRA 25，032F6225
Function: NC, Inlet connection type: FLANGE, Outlet connection type: FLANGE, Manual operation option: Yes, Cv value [gal/min]: 11.600, Kv value [m³/h]: 10.000
| Gross weight | 3.28 kg |
| Net weight | 2.82 kg |
| EAN | 5702422177722 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Cast iron |
| Coil | No |
| Cv value [gal/min] | 11.6 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | FLANGE |
| Kv value [m³/h] | 10 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25 mm |
| Outlet connection type | FLANGE |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Flanges Solenoid valve accessories |
| Product family name | EVRA |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Solenoid valve spare parts |
| Type | EVRA 25 |
| Type designation | Solenoid valve |
| Valve operation | SERVO-PISTON |
