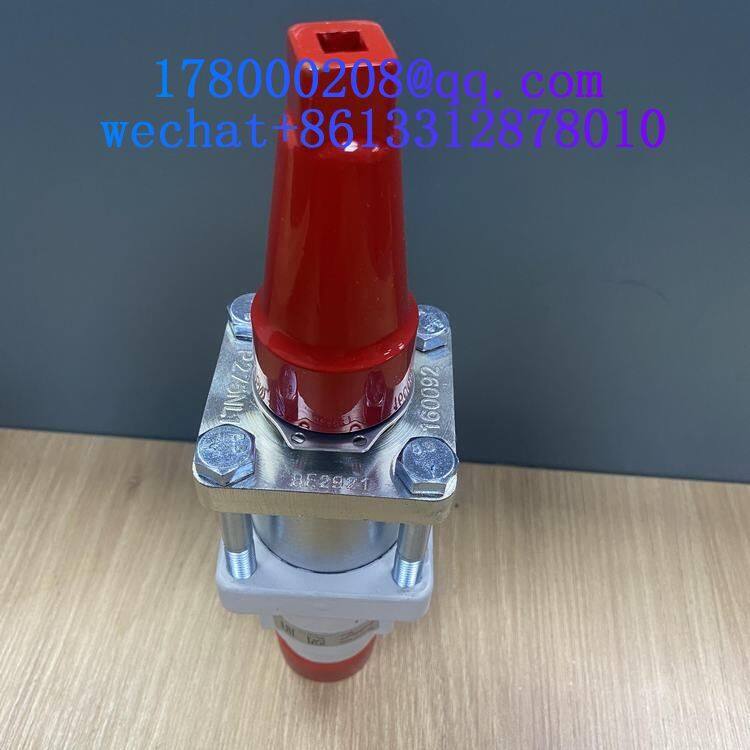

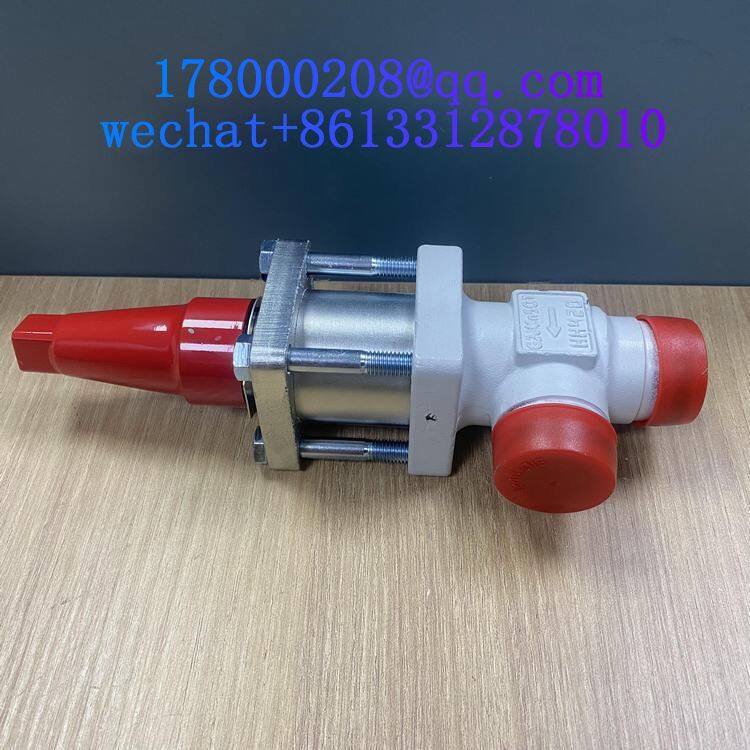

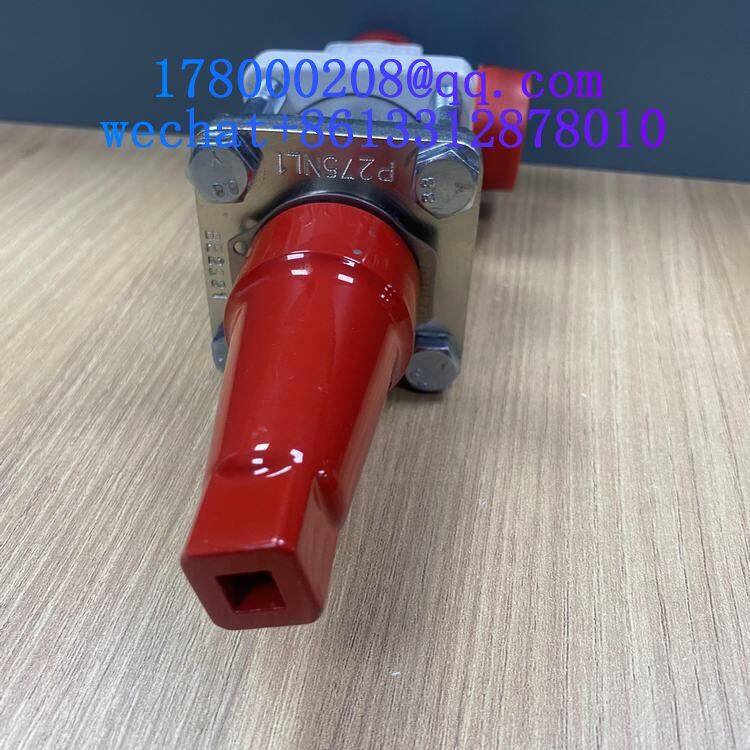

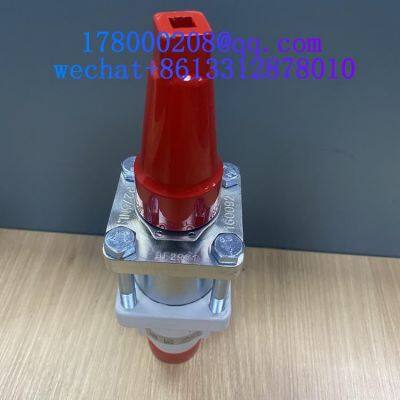

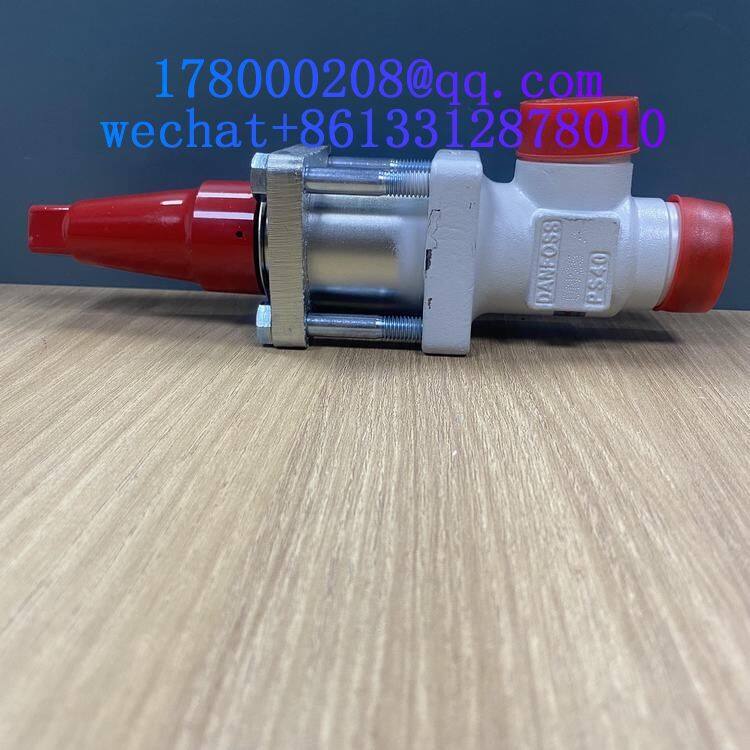

OFV25A-2412+186 pressure regulating valve produced by Danfoss product details
OFV are angle-way pressure regulating valves, which have ajustable opening pressure and cover the differential pressure range (∆P): 2 - 8 bar (29 - 116 psi). The valve can be closed manually, e.g. during plant service and have backseating, enabling the spindle seal to be replaced with the valve still under pressure. The valves are especially designed to prevent fluttering due to low velocity and/or low density. In consequence it is possible to apply the valves with wide fluctuations in capacity demands, i.e. from maximum performance to part load. A flexible O-ring provides perfect sealing over the seat.
• Applicable to HCFC, HFC, R717(Ammonia) and R744 (CO2). • Full temperature range packing gland • –50/+150°C (–58/+302°F) • Maximum operating pressure: 40 bar g (580 psig) • Three functions in one valve. The OFV valve combines the functions of a pressure reegulating valve, a check valve and a shut-off valve • Classification: DNV, CRN, BV, EAC etc. To get an updated list of certification on the products please contact your local Danfoss Sales Company. • Special features for OFV-SS – Low temperature stainless steel housing and bonnet – Low temperature packing gland -60/+150°C (–76/+302°F) – Maximum operating pressure 52 bar (754 psi g)
